Summary of Contents for Eizo EIZO FlexScan L 352T L352T-C L352T-C

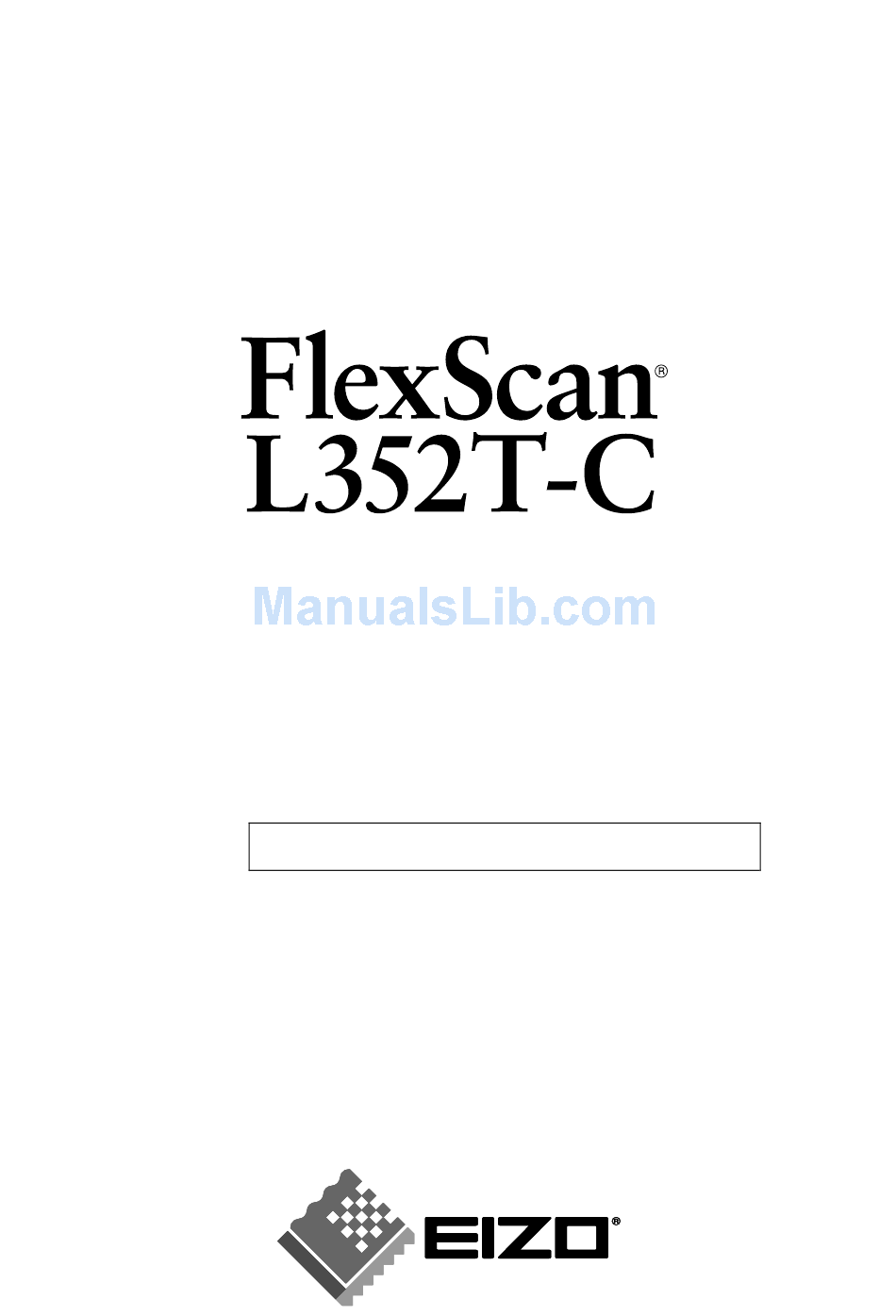

- Page 1 User’s Manual Touch Panel Color LCD Monitor It shall be assured that the final system is in compliance to IEC60601-1-1 requirements.
-
Page 2: Safety Symbols
EIZO NANAO CORPORATION. EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION's receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice. -
Page 3: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS ... 4 1. INTRODUCTION ... 9 1-1. Features ...9 1-2. Package Contents...9 1-3. Controls & Connectors ...10 2. CABLE CONNECTION ... 12 2-1. Before connecting ...12 2-2. Connecting the signal cable ...13 2-3. Connecting two PCs to the monitor...15 2-4. -
Page 4: Precautions
English PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. •... - Page 5 WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice. Attempting to use a malfunctioning unit can be dangerous. Do not dismantle the cabinet or modify the unit. Dismantling the cabinet or modifying the unit may result in electric shock or burn.
- Page 6 English WARNING To avoid danger of suffocation, keep the plastic packing bags away from babies and children. Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord.
- Page 7 WARNING When attaching an arm stand, please refer to the user’s manual of the arm stand and install the unit securely with the enclosed screws. Not doing so may cause the unit to come unattached, which may result in injury or equipment damage. When the unit is dropped, please ask your dealer for advice.
-
Page 8: Lcd Panel
English CAUTION Use an easily accessible power outlet. This will ensure that you can disconnect the power quickly in case of a problem. Periodically clean the area around the plug. Buildup of dust, water, or oil on the plug may result in fire. Unplug the unit before cleaning it. -
Page 9: Introduction
1. INTRODUCTION Thank you very much for choosing an EIZO Color Monitor. 1-1. Features • Dual inputs compliant • DVI (p.37) Digital input (TMDS (p.38)) compliant. • Horizontal scanning frequency: Vertical scanning frequency: Resolution: • Auto Adjustment compliant • Support to sRGB (p.38) standard •... -
Page 10: Controls & Connectors
English 1-3. Controls & Connectors Front Control Panel (1) ScreenManager (2) Speaker Volume Control Mute (3) Input Signal Selection Button (4) Auto Adjustment Button (5) Enter Button (6) Control Buttons (Left, Down, Up, Right) (7) Power Switch (8) Power Indicator Blue Yellow Flashing yellow (2... - Page 11 Rear POWER INPUT Bottom (9) Power Connector (10) RS-232C port (Mini DIN 6 pin) (11) External line in (stereo mini-jack) (12) DVI-D Connector (SIGNAL 1) (13) D-Sub mini 15 pin Connector (SIGNAL 2) (14) Security Lock Slot (15) 4 Holes for Mounting a stand (16) Stand (Detachable) Allows for connection of a security cable.
-
Page 12: Cable Connection
English 2. CABLE CONNECTION 2-1. Before connecting Before connecting your monitor to the PC, change the display screen settings (resolution (p.37) and frequency) in accordance with the charts below. NOTE • The lower display modes like 640x 480, automatically enlarge to the maximum display mode (1024 x 768), and some lines of the characters may become fuzzy. -
Page 13: Connecting The Signal Cable
2-2. Connecting the signal cable NOTE • Be sure that the power switches of both the PC and the monitor are OFF. Plug the signal cable into the connector at the rear of the monitor and the other end of the cable into the video connector on the PC. After connecting, secure the connection with the screw-in fasteners. - Page 14 English Plug the enclosed touch panel cable into the RS-232C port of the monitor. Then, plug the other end of the cable into the COM port of the computer. Plug the power cord into the power connector on the rear of the monitor.
-
Page 15: Connecting Two Pcs To The Monitor
2-3. Connecting two PCs to the monitor Two PCs can be connected to the monitor through the DVI and the D-Sub mini 15 pin connector on the back of the monitor. Selecting the active input The Input Signal Selection Button on the control panel can be used to select either Signal 1 or Signal 2 as the active input at any time. -
Page 16: Screenmanager
English 3. ScreenManager 3-1. How to use the ScreenManager S I G . S I G . AUTO AUTO E N T . E N T . Entering the ScreenManager Press the Enter Button once to display the main menu of the ScreenManager. Making Adjustments and Settings (1) Select the desired sub menu icon using the Control Buttons and press the Enter Button. -
Page 17: Adjustments And Settings
3-2. Adjustments and Settings The following table shows all the ScreenManager’s adjustment and setting menus. “*” indicates adjustments of analog input only and “**” indicates digital input only. Main menu Screen Color Sound PowerManager Others Information Language Due to the inspection on the factory, the usage time may not “0 hour” at shipping. Sub menu Clock 4-1. -
Page 18: Useful Functions
English 3-3. Useful Functions Adjustment Lock Use the “Adjustment Lock” function to prevent any accidental changes. Locked function Unlocked function [To lock] (1) Switch off the monitor’s power by the power switch on the control panel. (2) Press on the Auto adjustment button while switching on the monitor’s power. [To unlock] (1) Switch off the monitor’s power by the power switch on the control panel. -
Page 19: Automatically Selecting The Input Signal Function
English EIZO Logo disappearing function When switching on the Power Switch on the control panel, the EIZO logo is displyed for a while. If you desire to display or undisplay this logo, use this function. (Default is logo appearing.) [To undisplay] (1) Switch off the monitor’s power by the Power switch on the control panel. -
Page 20: Adjustment
English 4. ADJUSTMENT The monitor displays the digital input image correctly based on its pre-setting data. Adjust the brightness (p.23). 4-1. Screen Adjustment Screen adjustments for the LCD monitor should be used in suppressing screen flickering and also for adjusting the screen to its proper position. There is only one correct position for each display mode. - Page 21 NOTE • More precise adjustment is available for using the “Screen Adjustment program” utility software. It can be downloaded from the EIZO homepage (http://www.eizo.com/). Adjust by using <Screen> menu in the ScreenManager. (1) Vertical bars appear on the screen →...
- Page 22 English (3) The screen position is incorrect. → Use the <Position> adjustment. The correct displayed position of the monitor is decided because the number and the position of the pixels are fixed. The “Position” adjustment moves the image to the correct position. Select <Position>...
- Page 23 English To Set the Brightness of the screen. → Use the <Brightness> adjustment. The brightness of the entire screen is controlled by changing the brightness of the backlight. Select < Brightness > in the screen menu and adjust by using the Up and Down Buttons.
-
Page 24: Color Adjustment
English 4-2. Color Adjustment The <Color> menu in the ScreenManager enables to change the color of the screen. By using the <Color Mode>, the adjustment mode can be selected from <Custom mode> (to adjust the color settings according to your preference) and <sRGB> mode. In the analog input, perform the “Range Adjustment”... - Page 25 Menu Color Mode Custom sRGB √ Saturation √ √ Gain (p.37) √ Reset Function Descriptions To change the saturation NOTE • The <Saturation> adjustment may cause undisplayable color tone. To change the flesh color, etc. NOTE • The <Hue> adjustment may cause undisplayable color tone.
-
Page 26: Power-Save Setup
English 4-3. Power-save Setup The <PowerManager> menu in the ScreenManager enables to set the power-save setup. NOTE • Do your part to conserve energy, turn off the monitor when you are finished using it. Disconnecting the monitor from the power supply is recommended to save energy completely. - Page 27 English Power save for speaker When the monitor is in the power-saving mode, sound of speaker also erases simultaneously can be performed. [Procedure] (1) Set the PC’s power saving settings. (2) Select <Sound>. (3) Select “Disable”. (“Enable” is selected to leave sound.) 4.
-
Page 28: Attaching A Stand
English 5. ATTACHING A STAND The LCD monitor can be used with other stand by removing the tilt stand and attaching the stand to the LCD monitor. NOTE • If you will use the other stand, confirm the followings to the manufacturers before selecting. -
Page 29: Troubleshooting
6. TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. • No picture problems : See No.1 ~ No.2 • Imaging problems : See No.3 ~ No.9 • Other problems : See No.10 ~ No.13 •... -
Page 30: 30 6. Troubleshooting
English Problems 3. Display position is incorrect. 4. Vertical bars of distortion appear. 5. Horizontal bars of distortion appear. 6. Letters and lines appear blurred. 7. The screen is too bright or too dark. 8. Afterimages appear. 9. The screen has defective pixels (e.g. - Page 31 Problems 10. The <Smoothing> cannot be selected. 11. The Main menu of ScreenManager does not operate. 12. The Auto Adjustment Button does not operate. 13. The signal Selection Button does not operate. Points to check with possible solutions <Smoothing> is disabled when the screen is displayed in the 1024 x768.
-
Page 32: 32 6. Troubleshooting
English • Touch Panel problems Problems 14. Cursor is jittery. / Drawing lines are not straight and smooth. 15. Cursor position is not correct. / Cursor jumps. 16. Continuous touch sound./ Much time requirement for executing touch screen calibration or cursor stabilization. 6. -
Page 33: Cleaning
7. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE • Never use thinner, benzene, ethanol, abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or panel. •... -
Page 34: Specifications
English 8. SPECIFICATIONS LCD Panel Dot Pitch Horizontal Scan Frequency Vertical Scan Frequency Resolution Dot Clock (Max.) Display Colors Display Area Touch Panel Communication protocol Detective method Analog capacitive technology, finger touch Power Supply Power Consumption Input Connector Analog Input Signal (Sync) Analog Input Signal (Video) Input Signal (Digital) Signal registration... - Page 35 Environment Temperature conditions Humidity Pressure Certifications and Standards 100-120 VAC 200-240 VAC Classification of Equipment Default settings Brightness Smoothing Temperature PowerManager Input Signal Off Timer Language Optional Touch Panel Pointer Dimensions 346 (13.6) 306 (12.0) 135 (5.3) Operating: 0 °C ~ 35 °C (32 °F ~ 95 ° F) Storage: -20 °C ~ 60 °C (-4 °F ~ 140 °...
-
Page 36: Pin Assignment
English Pin Assignment D-Sub mini 15 pin connector DVI-D Connector 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 RS-232C Port (Mini DIN 6 pin) 8. SPECIFICATIONS Signal Red video Red ground... -
Page 37: Glossary
9. GLOSSARY Clock With the analog input signal display, the analog signal is converted to a digital signal by the LCD circuitry. To convert the signal correctly, the LCD monitor needs to produce the same number clock pulse as the dot clock of the graphics system. When the clock pulse is not correctly set, some vertical bars of distortion are displayed on the screen. - Page 38 The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The EIZO L352T-C display panel consists of 1024 horizontal pixels and 768 vertical pixels. At a resolution of 1024 x768, all pixels are displayed as a full screen.
-
Page 39: Appendix
APPENDIX/ANHANG/ANNEXE Preset Timing Chart for Analog input Timing-Übersichten für Analog Eingang Synchronisation des Signaux pour Analog numerique Based on the signal diagram shown below 12 factory presets have been registered in the monitor's microprocessor. Der integrierte Mikroprozessor des Monitors unterstützt 12 werkseitige Standardeinstellungen (siehe hierzu die nachfolgenden Diagramme). -
Page 40: Fcc Declaration Of Conformity
Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord... - Page 41 Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor Dieser Monitor ist für Bildschirmarbeitsplätze vorgesehen. Wenn nicht der zum Standardzubehör gehörige Schwenkarm verwendet wird, muss statt dessen ein geeigneter anderer Schwenkarm installiert werden. Bei der Auswahl des Schwenkarms sind die nachstehenden Hinweise zu berücksichtigen: Der Standfuß...
- Page 42 DE BRAN CHE SWICO. http://www.swico.ch Recycling Information for customers in USA: All recycling information is placed in the EIZO Nanao Technologies, Inc’s website. http://www.eizo.com/ Återvinnings information för kunder i Sverige: All information om återvinning finns på Eizo Europe AB:s hemsida:...
