User Manual of Product 1:

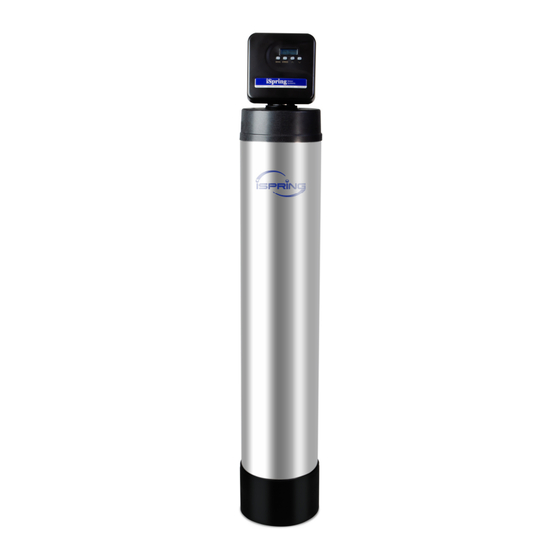

iSpring WF150K Whole House Central Water Filtration System
with Set and Forget Smart Valve, Up to 10 Years
User Manual of Product 2:
iSpring WSP50ARJ Spin-Down Sediment Water Filter,
Upgraded Jumbo Size, Large Capacity, Reusable with
Touch-Screen Auto Flushing Module, Brass Top Clear
Housing, 50 Microns

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WSP50ARJ and is the answer not in the manual?

Questions and answers

Summary of Contents for Ispring WSP50ARJ

  • Page 1 User Manual of Product 1: iSpring WF150K Whole House Central Water Filtration System with Set and Forget Smart Valve, Up to 10 Years User Manual of Product 2: iSpring WSP50ARJ Spin-Down Sediment Water Filter, Upgraded Jumbo Size, Large Capacity, Reusable with...
  • Page 2 WF150K Whole House Central Water Filter INSTALLATION INSTRUCTIONS & OPERATING MANUAL Ver. 02/2020 Copyright ©2005-2019 ISPRING WATER SYSTEMS, LLC. All rights reserved.
  • Page 3 From various residential water filtration systems that purify your water in everyday life, to drinking water faucets that deliver pure, healthy, and tasty water to you and your family, iSpring strives for high standard products and aims to make excellent drinking water accessible for all households.
  • Page 4: Table Of Contents

    Prior to Installation Read this instruction manual carefully prior to installation. Keep this manual readily available for future reference. Table of Contents User Information ......................3 Dimensions ........................ 4 Product Operation & Specifications ................5 Before You Start ......................6 Material Details ......................
  • Page 5: User Information

    The unit should be placed only on flat surfaces. Do not mount on a wall. This product is designed for residential use only. Contact iSpring customer service to inquire about using in non-residential settings. The operating temperature range is 33.8°F – 102.2°F. When the water temperature or ambient temperature falls below 33.8°F, shut off the inline water supply, turn off the inline water adapter,...
  • Page 6: Dimensions

    Dimensions TOP VIEW SIDE VIEW FRONT VIEW Note:all dimensions are in millimeters unless otherwise specified. • www.123filter.com | (678) 261-7611 | support@123filter.com Page 4...
  • Page 7: Product Operation & Specifications

    Product Operation & Specifications Though testing was performed under standard laboratory conditions, the actual performance of the system may vary based on local water conditions and quality. SPECIFICATIONS Model WF150K Hydrostatic Test Pressure 350 psi (24.15 bar) 20 ~ 125 psi Working Pressure Limits (minimum/maximum) (1.38 ~ 8.62 bar) 33.8 ~ 102.2 °F...
  • Page 8: Before You Start

    Before You Start Warning This system can only be used with 120V/60Hz unidirectional AC power. Do not place anything over the power cord and set the unit where the power cord will not be stepped on or tripped over. Electric shock hazard: Do not overload sockets or extension cords. If there is smoke, abnormal odor, or abnormal noise in this machine, immediately unplug the power of this system to avoid fire or electric shock.
  • Page 9: Material Details

    Material Details 1. Inspect Shipment: One machine and its accessories are included: ① power adapter (white box, 1 pcs.) (adhered to the base), ② sewage pipe (translucent pipe, 1 pcs.), ③ stainless steel braided hose (NPT6M connector, 2 pcs.), ④ stainless steel clamps (in the PE bag, 1 pcs.), ⑤ hex key (in the PE bag, 1 pcs.). 2.
  • Page 10 Drain Line Flow Controls (DLFC) and Injector: Different Size DLFCs are available for different tanks as follows: Replace Injector and DLFC according to the following figure: www.123filter.com | (678) 261-7611 | support@123filter.com Page 8...
  • Page 11 6. Bypass Assembly Page 9 www.123filter.com | (678) 261-7611 | support@123filter.com...
  • Page 12: Installation Requirements

    Installation Requirements (1) Equipment Installation Conditions The installation location should be well-ventilated and protected against wind and rain. Avoid direct sunlight and radiation from any heat sources. The relative humidity of the installation and use environment should not exceed 75% RH. Equipment and pipes installed outdoors should be insulated and frost-proofed.
  • Page 13 If the water inlet pressure is higher than 125 psi, a pressure reducing valve must be installed at the water inlet pipe of the water purifier. If the water inlet pressure is lower than 20 psi, a booster pump must be installed at the water inlet pipe of the water purifier to ensure the working pressure meets technical requirements.
  • Page 14: Installation Instructions

    Installation Instructions (1) General Bypass Installation i. Hold the knob or use a bypass tool to rotate the knobs. ii. Water supply will be bypassed when the knobs are horizontal. iii. The bypass is in service status when knobs are oriented vertically. iv.
  • Page 15 (4) Equipment Installation Step 1. Confirm proper installation conditions, then unpack the equipment and verify that all accessories are present. Prepare the installation tools and confirm that the water inlet and outlet pipes, power supplies, sewage pipes, and floor drains at the installation site meet the appropriate requirements.
  • Page 16 Step 10. Then, slowly open the water inlet valve (the valve should be opened at an angle of about 45°), fully open the water outlet valve. and let the water run until the air is purged from the unit. Then close the tap. The air in the tank is then exhausted until it is full. Step 11.
  • Page 17: Programming The Central Water Filtration System

    Programming the Central Water Filtration System (1) Button Configuration Key Pad Configuration • MENU This function is used to enter the basic setup information required at the time of installation. • SET/REGEN This function is used to initiate an immediate or delayed manual regeneration. •...
  • Page 18 In the user menu setting, press this to confirm the parameter setting and switch to the next option. (c) "↑" / "↓" When the display is in a menu option, these keys can be used to adjust the value or option. (2) Notes (a) Combination key Press and hold "↑"...
  • Page 19 (4) Press and hold "MENU" and "SET/REGEN" at the same time for 3 seconds to enter the following user menu settings: SYSTEM LANGUAGE: Choose the system language. UNITS: Choose the system unit of measurement: metric or US. SMART CLEAN: When set to ON, the system will perform a 10 (adjustable) minute backwash and rinse if there is no water flow detected after 7 (adjustable) days.
  • Page 20: Operation Of Wf150K Central Whole House Filtration System

    Operation of WF150K Central Whole House Filtration System (1) Product Functions and Features The central whole house water filtration system utilizes high-quality KDF85 and coconut shell activated carbon to further purify municipal tap water, effectively reducing odor, residual chlorine, and organic content. The automatic back flush system is designed to flush and wash the filter media and move pollutants to the drain.
  • Page 21 (d) Water Purification Process: Municipal Tap Water Activated Carbon Alloy Filter Media Purified Water (2) Structure Automatic multi-way electronic control valve Made using high strength polyphenylene ether (PPE) with glass fiber, making the product hygienic, reliable and durable Corrosion resistance Structural strength, well-designed Filter High-purity copper-zinc alloy filter...
  • Page 22 Main Functions Daily Reserve Backwash Override/Rinse Override Forced Regeneration Smart Cleaning Display Format: Metric format and US format are available to meet the different customers' requirements. Multi-Language Function: English, Spanish, and other languages are available. Continuous water monitoring/Continuous no water monitoring Auto-locking: All keys will lock after 3 minutes during the standby status.
  • Page 23: Care Of Your Central Water Filtration System

    Care of Your Central Water Filtration System The product can be used frequently after installation and commissioning have been completed. With an uninterrupted power supply, the user does not need to perform other operations on the machine. If the equipment fails or experiences other exceptional circumstances, the inlet and outlet valves can be closed (bypass valve is open), and the municipal water supply can be used directly.
  • Page 24: Troubleshooting

    Troubleshooting ISSUE POSSIBLE CAUSE POSSIBLE SOLUTION Unit fails to initiate a No power supply Check electrical service, fuse, regeneration cycle etc. Reset time. Power failure Iron or scale builds up in line Clean pipes. Low water pressure feeding unit Iron build up inside the valve or tank Clean control and add resin cleaner to clean bed.
  • Page 25 Install pressure stabilization Water system pressure is too low or equipment. too high Contact Dealer. Control valve failure Filter material The back wash flow rate is too large Verify the water pressure is 20 or too small ~ 125 psi. performance reduce The control valve is inaccurate due Adjust the current time of the...
  • Page 26: Warranty And Registration

    Warranty Registration To register your product for the warranty, visit our website at 123filter.com and go to the “Warranty” tab. We provide a 30-day money back guarantee, a 1-year manufacturer warranty, and lifetime tech support for all of our products. However, we do not have the order information from websites other than 123Filter.com (Amazon, Home Depot, etc.), so please be sure to fill in that information upon registration of your system.
  • Page 28 3020 Trotters Parkway Alpharetta, GA 30004, USA iSpringFilter.com For questions, comments, or technical support, please contact us at: support@123Filter.com (678) 261-7611 Monday-Friday 8:30 a.m. - 5:30 p.m. EST...
  • Page 29 Automatic Flush Module Installation and User Manual Ver.04/2019 Copyright ©2005-2019 ISPRING WATER SYSTEMS, LLC. All rights reserved.
  • Page 30 Introduction This product is designed for use with the iSpring WSP-ARB spin down pre-filtration system.It enables the system to flush automatically on a preset schedule. Product Features • HD touch screen • 3 flush modes (auto, semi-auto, manual) • Installs in seconds •...
  • Page 31 Step 1:Make sure the ball valve switch is closed(in a level position). Step 2: Remove the circlip and the ball valve knob. Step 3: Install the battery or plug in the power supply. Insert the unit and make sure the ball valve switch is aligned with the slot on the controller.Place the circlip back on the unit to secure the connection.
  • Page 32 Trouble shooting Error Code Cause Solution No power(when running in Replace the battery battery only mode) Ball valve cannot be opened fully Restart the system Ball valve cannot be closed fully Restart the system CUSTOMER SATISFACTION AND WARRANTY REGISTRATION To register your product for the warranty, please visit our website at 123filter.com and go to the “Warranty Registration”...
