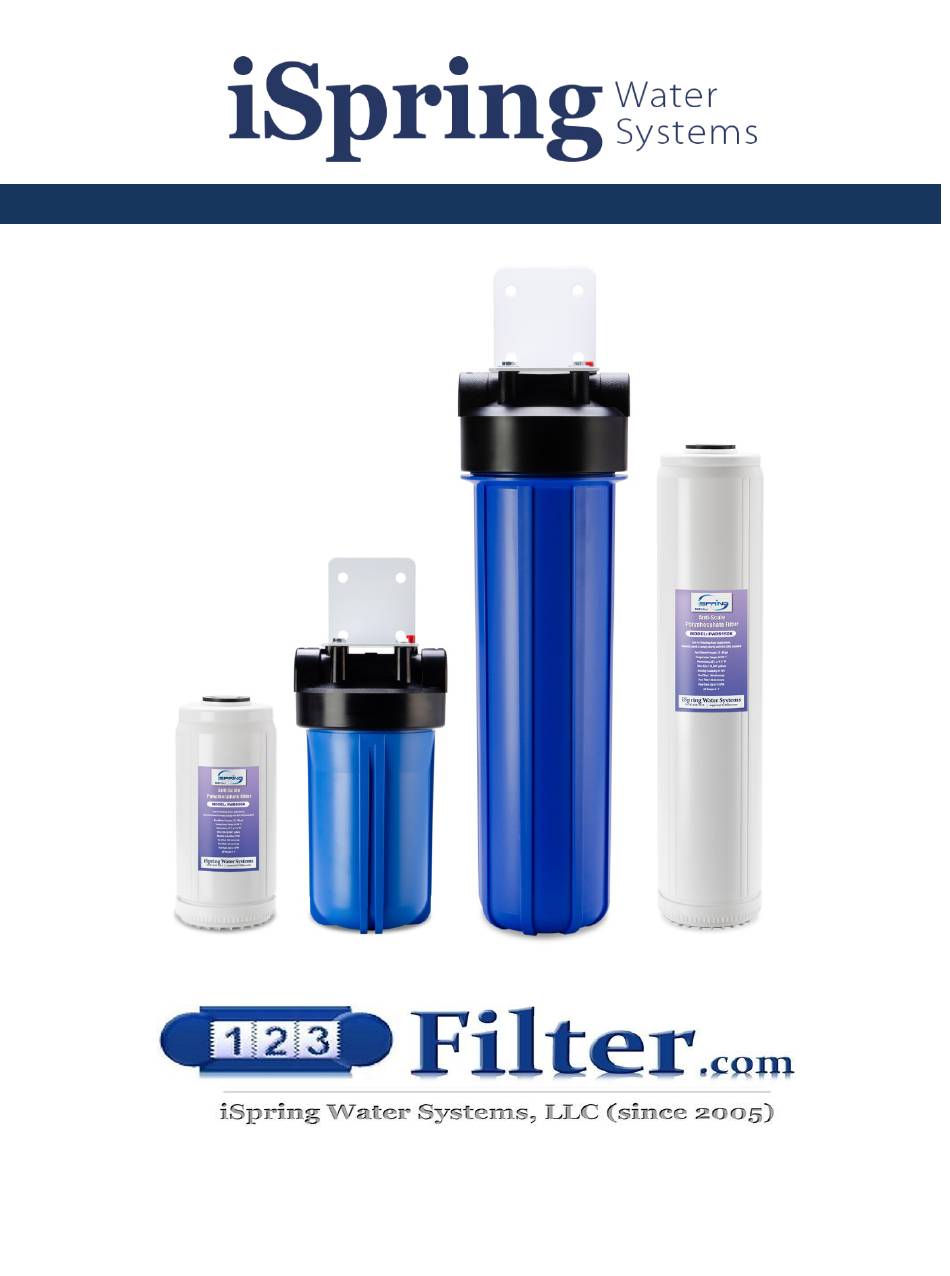

- Page 1 WDS SERIES USER MANUAL Ver.05/2020 Copyright ©2005-2020 ISPRING WATER SYSTEMS, LLC. All rights reserved.
-
Page 2: Table Of Contents
WDS Series Whole House Systems Version 2020-05 Table of Contents Product Operation and Specifications ............ 3 Component List ..................3 Tools Required ..................3 Parts Required (Not Included) ..............4 Installation Overview ................4 Pre-installation Notes ................5 Pre-installation ..................5 Installation .................... -
Page 3: Product Operation And Specifications
WDS Series Whole House Systems Version 2020-05 Product Operation and Specifications WDS Series Model 15 GPM Flow Rate 25 psi Minimum Working Pressure 80 psi Maximum Working Pressure 60-90 ºF Operating Temperatures 6- 9 pH Range Component List Part... -
Page 4: Parts Required (Not Included)
WDS Series Whole House Systems Version 2020-05 Parts Required (Not Included) o (2x) Shutoff valves o (2x) Hex nipples or pipe nipples o (2x) Pipe union pressure regulators (as needed) o (1x) Ground jumper cable Installation Overview WDS80K WDS150K... -
Page 5: Pre-Installation Notes
This installation guide provides a step-by-step, start to finish procedure for installing your iSpring whole house water filter. All steps provided herein are for typical installations only. Your specific application may vary. This filter system should not be used with water that is microbiologically unsafe or of unknown ... - Page 6 WDS Series Whole House Systems Version 2020-05 Notice: The filter housing comes with a 1'' NPT Male inlet/outlet and will require additional fitting to adapt to your plumbing. A shutoff valve is recommended prior to the system. Step 1 - Measure the System and Cut the Pipe Determine location and water flow direction for the system.
- Page 7 WDS Series Whole House Systems Version 2020-05 Step 5- Filter Cartridges and Housings Assembly Unwrap cartridges and insert each into each of the housing centering on the standpipe. Hand tighten the Blue Filter Housing. Then, using the ...
-
Page 8: Maintenance Instructions
Version 2020-05 Maintenance Instructions Your iSpring Whole House Water System requires care and cleaning after a period of time. It is recommended that the cartridges be replaced every 6-12 months depending on the amount of contaminants present in the water supply. If the system has been working properly and the pressure is slowing, it may be time to change the filter cartridge. -
Page 9: Troubleshooting
The O-ring may not be in place. connection If it still leaks after adjusting the O-ring, please contact iSpring Customer Service at 678-261-7611 or email us at support@ispringfilter.com Leaking from the pressure The pressure release button has a screw under the bracket. -
Page 10: Warranty
God, or freezing. These warranties apply only to the original registered owner so long as the owner owns the home in which the unit was originally installed. Customer must register their system with iSpring within 90 days of purchase* in order to obtain a warranty. -
Page 11: Warranty Registration Form
WDS Series Whole House Systems Version 2020-05 Warranty Registration Form Name __________________ Order# __________________ __________________ ___________________ Email Phone _________________________________________________ Address _________ _________ _________ City State Zip Code _________________________________________________ Model#/ Serial Number Send to: iSpring Water Systems, LLC 2480 Industrial Park Blvd... - Page 12 WDS Series Whole House Systems Version 2020-05 iSpring Water Systems, L.L.C. 2480 Industrial Park Blvd Cumming, GA 30041 (678)261-7611 M-F 8:30-5:30 EST sales@ispringfilter.com...
