WF SERIES INSTALLATION INSTRUCTIONS & OPERATION MANUAL
Model WF150K

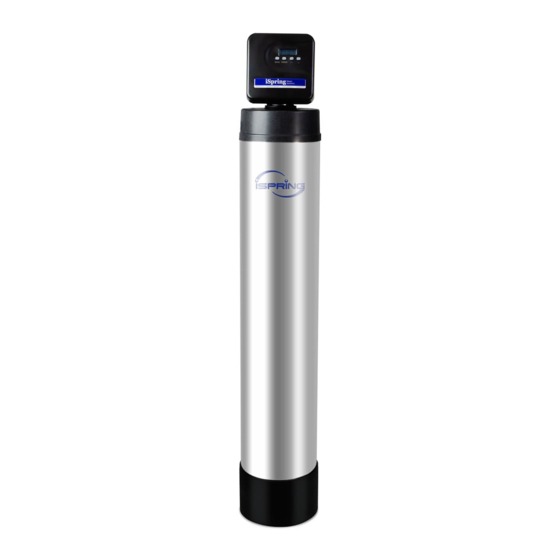

iSpring Whole House Central Water Filter
If you have any questions or concerns when installing, operating, or
maintaining your Whole House Central Water Filtration System, call us:
1-678-261-7611
www.ispringfilter.com
or visit
When you call, please be prepared to provide the model of your product.
(Ver. 01/2020)
Warranted by
iSpring Water Systems
3020 Trotters PKWY
Alpharetta, GA 30004
Copyright ©2005-2020 ISPRING WATER SYSTEMS, LLC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ispring WF Series

  • Page 1 Whole House Central Water Filtration System, call us: 1-678-261-7611 www.ispringfilter.com or visit When you call, please be prepared to provide the model of your product. (Ver. 01/2020) Warranted by iSpring Water Systems 3020 Trotters PKWY Alpharetta, GA 30004 Copyright ©2005-2020 ISPRING WATER SYSTEMS, LLC. All rights reserved.
  • Page 2: Table Of Contents

    Table of Contents Page Product Operation & Specifications ..................... 3 Before You Start ........................... 4 Optional Parts .......................... 5-7 How a Central Water Filtration System Works ............... 8-10 Installation Requirements ....................11-12 Installation Instructions ......................13-16 Programming the Central Water Filtration System ............... 17-19 Care of Your Central Water Filtration System ................
  • Page 3: Product Operation & Specifications

    Product Operation & Specifications While testing was performed under standard laboratory conditions, actual performance of the system may vary based on local water conditions. SPECIFICATIONS Model WF150K Hydrostatic Test Pressure 350 psi (24.15 bar) 20 ~ 125 psi Working Pressure Limits (minimum / maximum) (1.38 ~ 8.62 bar) Water Temperature Limits (minimum / maximum) 33.8 ~ 102.2 °F...
  • Page 4: Before You Start

    Before You Start Warning  This machine can only use 120V / 60Hz unidirectional AC power.  Do not place anything on the power cord, and set the unit where the power cord will not be stepped on or tripped over. ...
  • Page 5: Optional Parts

    Optional Parts 1. Inlet/Outlet Screw Standards: 2. Inlet/Outlet Screw Adaptor: Connect Screw NPT6M 3. Inlet/Outlet Connections Types:...
  • Page 6 Optional Parts 4. Drain line Flow Controls(DLFC) and Injector: Different Size DLFC is available for different tanks as follows: Replacing Injector and DLFC according to the following picture.
  • Page 7 Optional Parts 5. Bypass Assembly...
  • Page 8: How A Central Water Filtration System Works

    How a Central Water Filtration System Works (1) Product Functions and Features The whole house central water filtration series products, use imported filter material KDF and high-quality coconut shell activated carbon to purify further municipal tap water, which can effectively reduce the odor, residual chlorine, and organic content in tap water. The automatic backwashing device of the system can loosen and wash the filter material and remove pollutants from the sewage pipe.
  • Page 9 How a Central Water Filtration System Works (d) Water Purification Process:  Municipal Tap WaterActivated CarbonAlloy Filter MediaPurified Water (2) Structure Automatic multi-way electronic control valve  Made of high-strength polyphenylene ether (PPE) with glass fiber, hygienic, reliable and durable ...
  • Page 10 How a Central Water Filtration System Works Main Functions  Daily Reserve  Backwash Override/Rinse Override  Forced Regeneration  Smart Clean  Multi-Language Function: English , Spanish and other language are available to meet the different country.  Continuous water monitoring / Continuous no water monitoring ...
  • Page 11: Installation Requirements

    Installation Requirements (1) Equipment Installation Conditions  The installation location should be well ventilated and protected against wind and rain. Avoid direct sunlight and radiation from other heat sources.  The relative humidity of the installation and use environment does not exceed 75% ...
  • Page 12 Installation Requirements damage to the water pipe or the product due to the pressure of the pipeline after long- term use.  There must be a space (about 10 cm) between the outlet of the sewage pipe and the sewage to prevent the sewage from flowing back to the product; the underground sewage pipe should be 30 cm higher than the ground, and the sewage pipe should be fixed on the sewage pipe (do not Insert the sewage pipe directly into the sewage in the sewer or sewer).
  • Page 13: Installation Instructions

    Installation Instructions (1) Precautions Before Commissioning  Check whether the water inlet pipe and sewage pipe are connected as required. All piping connections comply with relevant national standards.  Fix the sewage pipe on the sewer pipe, and do not insert it directly into the sewer pipe. A gap of 100 mm shall be maintained with the bottom of the sewer pipe.
  • Page 14 Installation Instructions One machine and the accessories: ① power adapter (white box, 1 pcs.) (adhered to the base), ② sewage pipe (translucent pipe, 1 pcs.), ③ stainless steel braided hose (NPT6M connector, 2pcs.), ④ stainless steel clamps (in the PE bag, 1 pcs.), ⑤ hex key (in the PE bag, 1 pcs.).
  • Page 15 Installation Instructions (4) General Valve Installation (a) Locate the softener tank and brine tank close to a drain where the system will be installed. The surface should be clean and level. (b) Perform all plumbing according to local plumbing codes. Use a 1/2”...
  • Page 16 Installation Instructions (5) General Valve Installation (a) Installation: Hold the knob or use a bypass tool to rotate the knobs. Water supply will be bypassed when the knobs are horizontal. iii. It is in the status of service when knobs are in the vertical direction. When the bypass is in the status of service, it is available to take raw water and filter water sample for testing at water taking port on both sides of the bypass.
  • Page 17: Programming The Central Water Filtration System

    Programming the Central Water Filtration System (1) Button Configuration  Key Pad Configuration • MENU This function is to enter the basic set up information required at the time of installation. • SET / REGEN This function is to initiate an immediate or delayed manual regeneration. •...
  • Page 18 Programming the Central Water Filtration System  "07/07" is the number of days remaining before regeneration, The estimated number of days until the next regeneration will occur, (currently set to regenerate once every 7 days; for example, "02/07" means to regenerate once every 7 days and enter the regeneration mode after 2 days) ...
  • Page 19 Programming the Central Water Filtration System (b) During the menu setting process, if there is no operation within 1 minute, the system will automatically return to the standby state. (c) In the standby state, if there is no operation within 3 minutes, the system will automatically lock, and the display can be processed after unlocking.
  • Page 20: Care Of Your Central Water Filtration System

    Care of Your Central Water Filtration System  The product can be used frequently after the installation and commissioning are completed. Under the condition of uninterrupted power supply, the user does not need to perform other operations on the machine. ...
  • Page 21: Troubleshooting

    Troubleshooting ISSUE POSSIBLE CAUSE POSSIBLE SOLUTION Unit fails to initiate a No power supply Check electrical service, fuse, etc. regeneration cycle Reset time of day. Power failure Iron or scale builds up in line Low water pressure Clean pipes. feeding unit Iron build up inside valve or tank Clean control and add resin cleaner to clean bed.
  • Page 22 Troubleshooting Need help troubleshooting? If you have any questions, or there are missing parts or damage, please call 1-678-261-7611 or visit www.ispringfilter.com When you call, please be prepared to provide the of your product...
