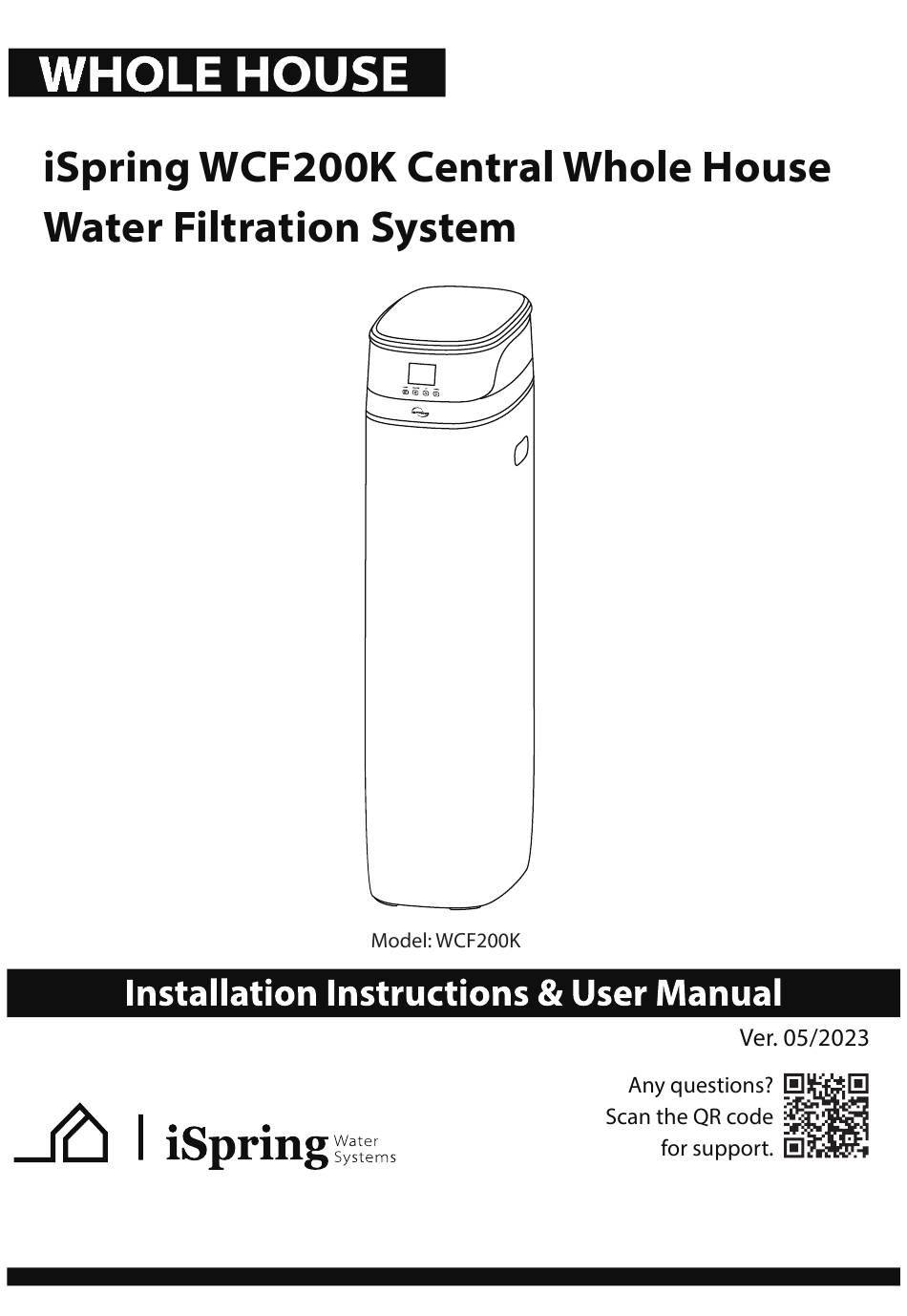

- Page 1 Copyright ©2005-2023 ISPRING WATER SYSTEMS, LLC. All rights reserved.
- Page 2 At iSpring, we strive to develop products to the highest of standards and aim to make excellent drinking water accessible for all households. With affordable pricing, reliable quality, prompt delivery, and top-notch customer service, we hope to assist in bringing you great water for years to come.
-
Page 3: Table Of Contents
Installation Precautions ....................7 Installation Instructions ....................7 Operation Tips......................10 Programming the Central Water Filtration System ........... 10 Maintenance ......................15 Emergency Response ....................15 Troubleshooting ......................15 Warranty iSpring Standard Limited Warranty (End-Users Only) ..........Warranty Registration Form .................. -
Page 4: User Information & Guidelines
● The unit should be placed only on flat surfaces. Do not mount it on a wall. ● This product is designed for residential use. Contact iSpring customer service to inquire about using it in non-residential settings. -
Page 5: Material Details
Product Operation & Specifications Though testing was performed under standard laboratory conditions, the actual performance of the system may vary based on local water conditions and quality. SPECIFICATIONS Model WCF200K 35~100 psi Working Pressure Limits (minimum/maximum) (241 kPa~689 kPa) 40~100 ° F Water Temperature Limits (minimum/maximum) (4~38 °... -
Page 6: General Product Information
● This system is designed to be used on a cold supply ONLY and kept away from freezing environments. ● All inlet and outlet pipes are recommended to use water pipes and fittings that meet the appropriate standards of domestic drinking water. The connection of water pipes and circuits should comply with national or industry standards, and the pipe connections should comply with relevant federal installation regulations. -
Page 7: Notice
The main functions of this system are listed below. • Fully Automatic Control • A built-in time controller, twenty-four-hour time control. Based on the set number of interval days or the amount of treated water, the filter material is cleaned at the set regeneration time (usually in the early morning before any use). -
Page 8: Installation Precautions
Installation Precautions ◼ The sewer drainage must be unobstructed, and there must be an air gap between the drain tube and sewage to prevent the sewage from flowing back into the system due to negative pressure. ◼ Before connecting the water inlet pipe, please remove any remaining impurities and dust in the pipe and close the main water supply before connecting it. - Page 9 (3) Equipment Installation It is highly recommended that you watch the video Installation & Startup | iSpring WCF200K Whole House Water Filtration System | Step by Step on YouTube. Step 1. Confirm proper installation conditions, unpack the equipment and verify that all accessories are present.
- Page 10 the clamps, insert the quick-connectors into the water inlet and outlet, and re-insert the clamp. Use only food-grade/included silicone lubricant. Step 4. Close the main water supply completely, then open any faucets in the room to remove the remaining water in the indoor water pipe. Step 5.
-
Page 11: Operation Tips
air should be completely exhausted. Reconnect the power supply. Press any button to skip the rest of the regeneration process and until back to standby. Step 13. Rotate the bypass valve to the service position and observe whether there is water leakage or any other leakage at each connection. - Page 12 "MENU" This function is used to enter the basic setup information required during installation. • Press and hold the key for 3 seconds to unlock the device if the screen is locked. • In the user menu setting, press this button to exit the menu immediately. "CONFIRM"...
- Page 13 a. Time Settings Current time and date setting. ⚫ Use the "UP" and "DOWN" buttons to switch to different options. ⚫ Press the "CONFIRM" button once to let the option flash. ⚫ Use the "UP" and "DOWN" buttons to modify the value. ⚫...
- Page 14 • Use the "UP" and "DOWN" buttons to switch to modify the value. • Press "CONFIRM" once to confirm and save the value in the parameter setting. • Press the "MENU" button to exit the parameter setting. System regenerate based on Manual Settings: ⚫...
- Page 15 ⚫ Regeneration Days The number of days between regenerations. ⚫ Regeneration Cycle Control the duration during the regeneration cycle. The system has pre-engineered default settings for every Regeneration Mode. The settings can be manually adjusted. ⚫ Restore Defaults Restore settings to the factory default. e.
-
Page 16: Maintenance
Media needs to be refilled only when the system reaches capacity or accidentally gets contaminated. The media replacement process needs to be conducted with a professional or under professional guidance. For related questions, contact the iSpring Customer service team. •... - Page 17 Need help with troubleshooting? If you have any questions or find there are missing parts or damage, please call 1-678-261-7611 or visit www.ispringfilter.com.When calling, please be prepared to provide the model of your product. (The model of this product is "WCF200K".) Page 16 www.123filter.com...
- Page 19 __________________ __________________ __________________ __________________ ______________________________________________ ____________ ______________ _________________ ___________________________________________ ______ _________________ ___________________________________...
