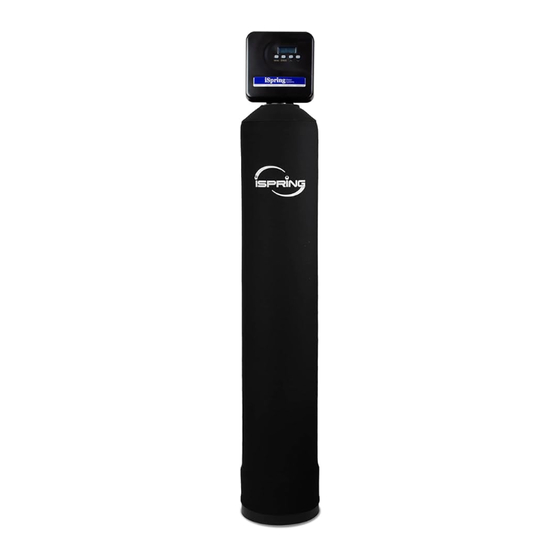

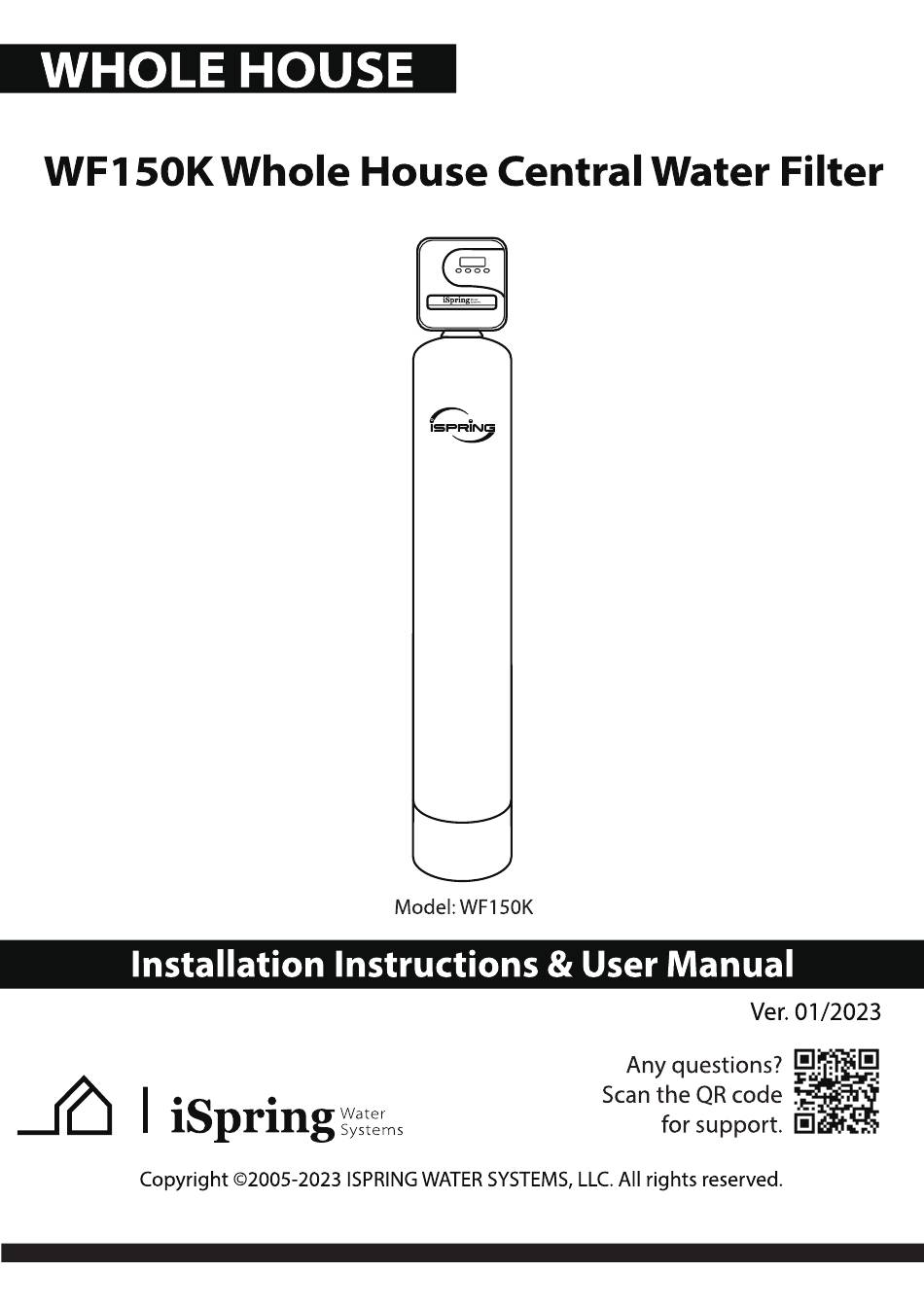

Ispring WHOLE HOUSE WF150K Installation Instructions & User Manual
Central water filter
Hide thumbs
Also See for WHOLE HOUSE WF150K:
- Installation instructions & operating manual (28 pages) ,
- Installation instructions operations manual (23 pages) ,
- User manual (8 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ispring WHOLE HOUSE WF150K
Summary of Contents for Ispring WHOLE HOUSE WF150K
- Page 3 At iSpring, we strive to develop products to the highest of standards and aim to make excellent drinking water accessible for all households. With affordable pricing, reliable quality, prompt delivery, and top-notch customer service, we hope to assist in bringing you great water for years to come.
-
Page 4: Table Of Contents
Installation Precautions ....................8 Installation Instructions ....................8 Operation Tips......................11 Programming the Central Water Filtration System ........... 11 Maintenance ......................13 Emergency Response ....................14 Troubleshooting ......................14 Warranty iSpring Standard Limited Warranty (End-Users Only) ..........Warranty Registration Form .................. -
Page 5: User Information & Guidelines
● The unit should be placed only on flat surfaces. Do not mount it on a wall. ● This product is designed for residential use. Contact iSpring customer service to inquire about using it in non-residential settings. -
Page 6: Dimensions
Dimensions TOP VIEW SIDEVIEW FRONTVIEW • Note:all dimensions are in millimeters unless otherwise specified. Page 4 www.123filter.com | +1 (678) 261-7611 | support@123filter.com... -
Page 7: Material Details
Material Details 1. Inspect Shipment: 2. Bypass Assembly www.123filter.com | +1 (678) 261-7611 | support@123filter.com Page 5... -
Page 8: Product Operation & Specifications
Product Operation & Specifications Though testing was performed under standard laboratory conditions, the actual performance of the system may vary based on local water conditions and quality. SPECIFICATIONS Model WF150K Hydrostatic Test Pressure 350 psi (24.15 bar) 35~100 psi Working Pressure Limits (minimum/maximum) (241 kPa~689 kPa) 40~100 °... -
Page 9: General Product Information
General Product Information The central whole house water filtration system utilizes high-quality KDF55, and coconut shell activated carbon to purify municipal tap water, effectively reducing odor, residual chlorine, and organic content. The automatic backflush system is designed to flush and wash the filter media and move pollutants to the drain. -
Page 10: Installation Precautions
(1) Location ◼ This system is required to be installed indoors. The installation location should be well-ventilated and protected against wind and rain. Avoid direct sunlight and radiation from any heat sources. Water leakage protection is highly recommended to be installed together with the system. If it needs to be installed outdoors, heat preservation measures must be taken for the body and pipes, including frost-proof, sun-proof, and waterproofing measures and insulation. - Page 11 (3) Equipment Installation It is highly recommended that you watch the video Installation & Startup | iSpring WF150K Whole House Water Filtration System | Step by Step on YouTube. Step 1. Confirm proper installation conditions, unpack the equipment and verify that all accessories are present.
- Page 12 Step 5. Connect the drain hose and clamp to the system tightly to ensure a secure connection.The other end of the drain hose goes to the sewage pipe. There must be sufficient space (~10 cm) between the outlet of the drain hose and the sewage level to prevent sewage from flowing back to the product.
-
Page 13: Operation Tips
Operation Tips • The product can be generally used after installation and commissioning have been completed. With an uninterrupted power supply, the user does not need to perform other operations on the machine. • The automatic regeneration start time default is to start late at night. The water is not treated and should not be used during this time. - Page 14 3) Programming Levels There are four levels of the valve program: a. Settings Press and hold "Menu" for 3 seconds to enter. Use the "UP" and "DOWN" buttons to modify the value. Press the "Menu" button once to confirm and switch to the following parameter setting, the entire menu shown below. Press "Set/Regen" to immediately return to the standby state.
-
Page 15: Maintenance
Media needs to be refilled only when the system reaches capacity or accidentally gets contaminated. The media replacement process needs to be conducted with a professional or under professional guidance. For related questions, contact the iSpring Customer service team. •... -
Page 16: Emergency Response
• If the equipment fails or experiences other exceptional circumstances, the inlet and outlet valves can be closed (the bypass valve is open), and the municipal water supply can be used directly. After removal, open the water inlet and outlet valves of the device. •... - Page 17 The Control valve clock is Poor water quality Adjust the control valve's inaccurate due to a power failure, current time. For operating causing the regeneration start time to procedures, refer to the current be changed time in the control valve manual.
- Page 19 __________________ __________________ __________________ __________________ ______________________________________________ ____________ ______________ _________________ ___________________________________________ ______ _________________ ___________________________________...
