- Page 1 RFG-301 User’s Guide Document Number CUG RFG-301 Revision 1 Eaton’s Cooper Power Systems 540 Gaither Road, Suite 480 Rockville, MD 20850 USA www.eaton.com Tel (301) 515-7118 Fax: (301) 515-4965...
- Page 2 Contents 1 About the RFG-301 ..........................3 2 Regulatory Notices..........................4 3 RFG-301 Specifications ......................... 6 RFG-301 User’s Guide CUG RFG-301, Revision 1...

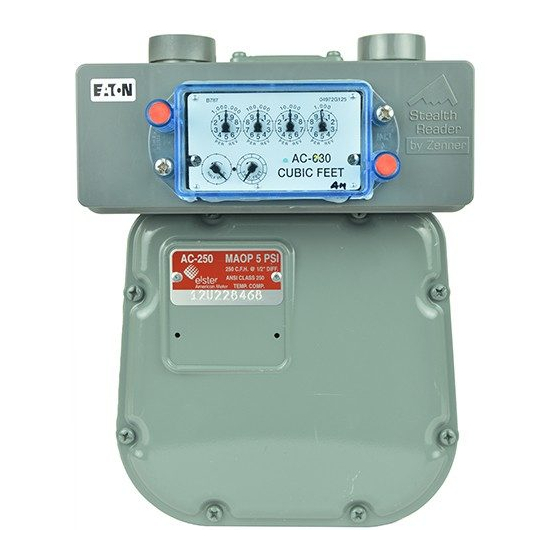

- Page 3 1 About the RFG-301 The RFG-301 is a radio communications device designed for use in gas meters. The RFG-301 provides a 915 MHz radio interface to an RF mesh network. The RFG-301 operates from two 3.6V lithium batteries, connected in parallel to provide 3.6V.
- Page 4 20 cm from all persons and must not be co-located or operate in conjunction with any other antenna or transmitter.” Warning RFG-301 User’s Guide CUG RFG-301, Revision 1...
- Page 5 Canada, l'antenne utilisée pour ce transmetteur doit être installée pour fournir une distance de séparation d'au moins 20 cm de toute personne et ne doit pas être co-localisée ou exploitée en conjonction avec aucune autre Notification antenne ou transmetteur. RFG-301 User’s Guide CUG RFG-301, Revision 1...
- Page 6 Frequency Hopping Spread Spectrum (FHSS) Mechanical Specifications Weight Unavailable Dimensions 105 mm x 50 mm Operating Conditions Environmental -40° C to +85° C 0 – 95% non-condensing humidity Power supply DC 3.6V Power consumption < 3W RFG-301 User’s Guide CUG RFG-301, Revision 1...
- Page 7 Eaton’s Cooper Power Systems 540 Gaither Road, Suite 480 Rockville, MD 20850 USA www.eaton.com Tel (301) 515-7118 Fax: (301) 515-4965...
