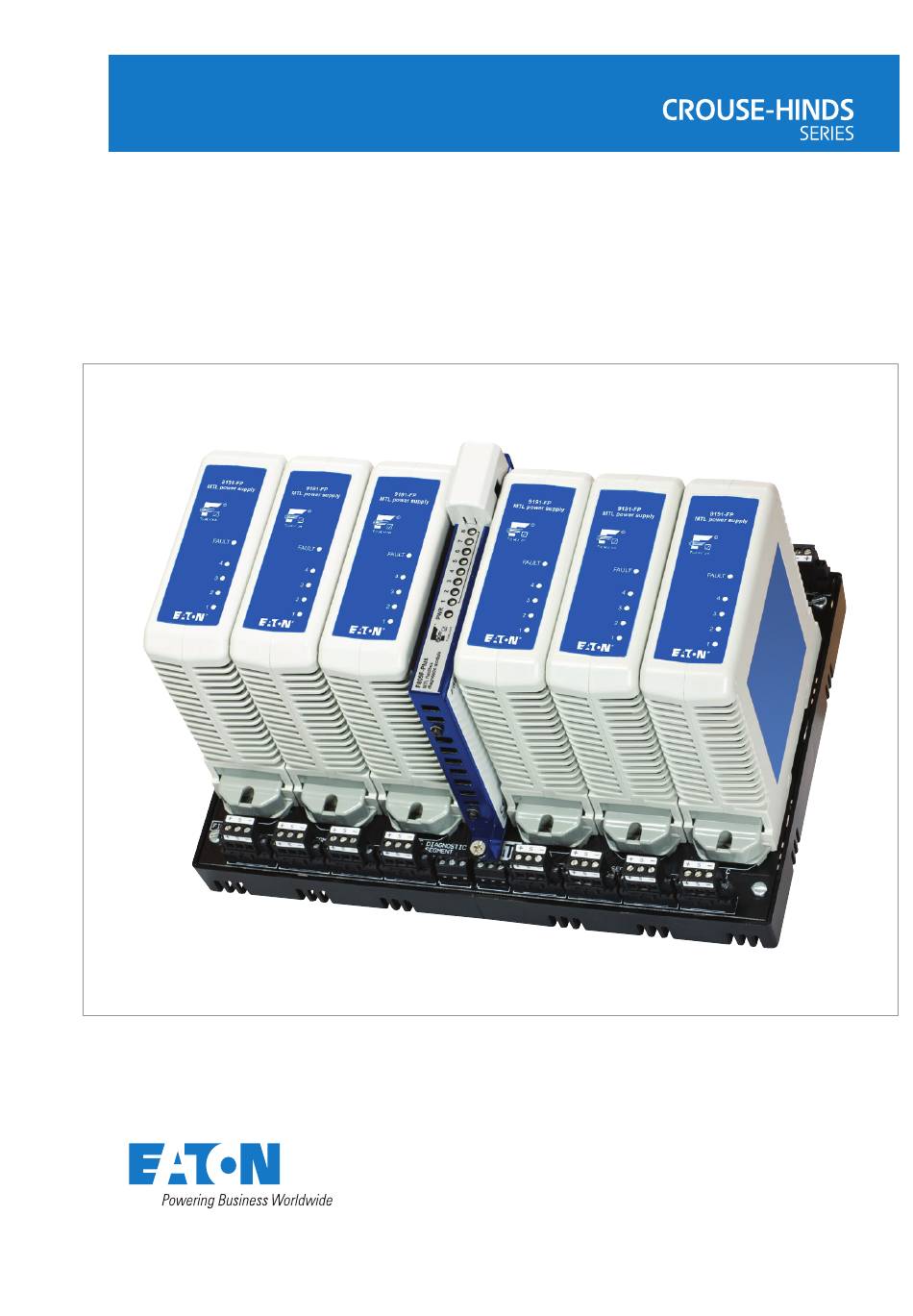

- Page 1 Instruction manual February 2017 MTL fieldbus networks INM9188 Rev 5 MTL 9188 8-segment redundant fieldbus power supply for Yokogawa CENTUM VP control systems...
-
Page 2: Declaration Of Conformity
Declaration of Conformity A printed version of the Declaration of Conformity has been provided separately within the original shipment of goods. However, you can find a copy of the latest version at http://www.mtl-inst.com/certificates INM9188 Rev 5... -
Page 3: Table Of Contents
CONTENTS DECLARATION OF CONFORMITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . II GENERAL SAFETY INSTRUCTIONS . - Page 4 No changes to any of the components that might impair their explosion protection are permitted. If any information provided here is not clear: Contact Eaton’s MTL product line or one of its representatives. Note: Improper installation and operation of the assembly can result in the invalidation of the guarantee.
-
Page 5: Overview
9188 - Redundant Fieldbus Power Supply 8-segment Power A 919x-FP input power supply module F809F-Plus 9181 -CA -P* diagnostic carrier module Segment outputs 1 - 4 Segment Diagnostic outputs 5 - 8 segment terminals Figure 1 .1 - 9188 showing some key components OVERVIEW This manual explains the installation and maintenance procedures for the 9188 Redundant Fieldbus Power Supplies and must be read in association with the... -
Page 6: Description
DESCRIPTION The system provides segment current capacity in 250mA increments, up to 500mA, and then offers redundancy with the provision of an additional 250mA module, which is connected in a load-sharing manner, to achieve an N+1 type of configuration. Each 919x-FP module will support 4 segments, so two “groups” of modules are required to support 8-segments. - Page 7 Plus * This dimension applies if the F809F-Plus diagnostic module is not used. Figure 2 .2 - Dimension drawing with all modules fitted INM9188 Rev 5...
-
Page 8: Alarms
Power A – Power B – Figure 2 .3 - Power distribution to modules 2 .3 Alarms Each 919x-FP module monitors the output of the four fieldbus segments and indicates an alarm (by means of a built-in, normally-closed relay) if any of the segments is shorted, or its output falls below the ‘minimum output voltage threshold’. -
Page 9: Systems And Components
SYSTEMS AND COMPONENTS The system and component part numbers and their descriptions are given here. System Part No . Description 9188-21-P* 4-segment system with: 9188-CA-P* carrier + two 9191-FP + four 9197-BLK 9188-41-P* 4-segment system with: 9188-CA-P* carrier + three 9191-FP + three 9197-BLK 9188-61-P* 8-segment system with: 9188-CA-P* carrier + four 9191-FP + two 9197-BLK... -
Page 10: Mechanical
MECHANICAL 4 .1 Mounting Orientation The optimum orientation for the 9188-CA-P* carrier is mounted on a vertical surface using a horizontally aligned DIN-rail, or surface mounted in the same orientation - see Figure 4.1. This method of mounting ensures optimum heat dissipation from the 919x- FP Power Supply Modules, and an operating temperature range of –20°C to +60°C. -
Page 11: Din-Rail Mounting Option
4 .3 DIN-rail mounting option The carrier is designed for mounting on 35mm x 7 .5mm T-section “top hat” DIN rail to EN50022 and uses four built-in DIN clamp tabs to hold it on the rail. 4 .3 .1 To mount on DIN rail The power modules at each end of the carrier must be removed to obtain access to the DIN-rail clamp screws. - Page 12 NOTE The carrier hangs on the fixings and so there must be a minimum of 10mm top clearance above the carrier to enable it to be located over the screw heads before it is lowered onto the M4 fixings. 43.4 200 TYP.(H) TOP clearance when mounted Horizontally.
-
Page 13: Electrical Connections
ELECTRICAL CONNECTIONS The DC power and Field Segment connectors are pluggable and available in a screw terminal version (-PS) or a spring-clamp version (-PC). See Figures 5.1 & 5.2 for details. The terminals can accept the following conductor sizes: Type Conductor size Screw terminals (-PS) 0.14 to 2.5mm... -
Page 14: Host Connections
5 .3 Host connections Connectors are provided to permit direct connection via AKB336 cables to Yokogawa ALF111 cards. Four connectors are fitted to provide the following connections. The host cable length should not exceed 30 metres. Connector Function Segments Host 1A Main 1 - 4 Host 1B... -
Page 15: Terminator
5 .7 Terminator Each segment is provided with its own permanent terminator on the circuit board without intervention by the user. 5 .8 Alarm connection See Section 2.3 on page 4 for further details of the alarm function. The alarm connections are provided at terminal numbers 15 and 16. -
Page 16: Ground Connection
5 .9 Ground connection All segment cable screens are linked together and connected to a grounding screw terminal (SG) located close to the Segment 8 connection terminals. See Figure 5.6. Figure 5 .6 - Ground connection 5 .9 .1 Screen grounding at supply If the design policy is to ground the fieldbus cable screens at the fieldbus power supply, then the cable screens should be connected to the ‘S’... -
Page 17: Testing
TESTING 6 .1 919x-FP Status and Alarm LEDs Each Power Module is fitted with five LEDs, four green ones to indicate the status of individual segments and one red one to signify a Fault/Alarm condition. FAULT Segment Module Alarm System status LED(s) location contacts... -
Page 18: Atex Information
ATEX INFORMATION The Essential Health and Safety Requirements (Annex II) of the EU Directive 2014/34/ EC [the ATEX Directive - safety of apparatus] requires that the installation manual of all equipment used in hazardous areas shall contain certain information. This annex is included to ensure that this requirement is met. -
Page 19: Marking
8 .5 Marking Each certified component is marked in compliance with the Directive and CE marked. This information applies to products manufactured during or after the year 2012. For full certification information visit www.mtl-inst.com/support/certificates/ Product labels (showing certification information) INM9188 Rev 5... - Page 20 MTL Instruments GmbH, Heinrich-Hertz-Str. 12, 50170 Kerpen, Germany UNITED ARAB EMIRATES Cooper Industries/Eaton Corporation Tel: +49 (0)22 73 98 12 - 0 Fax: +49 (0)22 73 98 12 - 2 00 Office 205/206, 2nd Floor SJ Towers, off. Old Airport Road, E-mail: csckerpen@eaton.com...
