Summary of Contents for Clarke CONTRACTOR GSH15

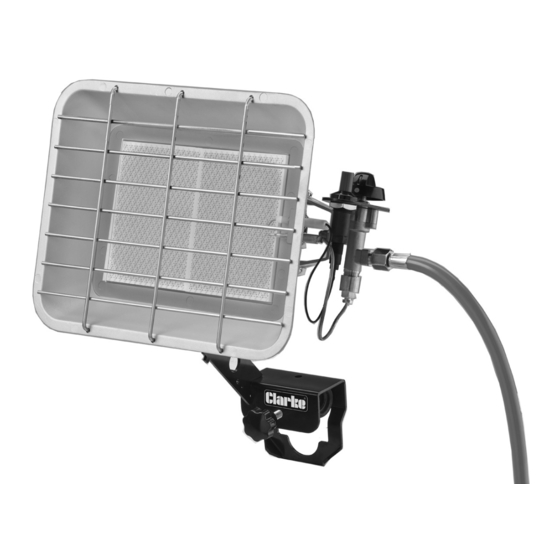

- Page 1 GAS BOTTLE TOP HEATER MODEL NO: GSH15 PART NO: 6920040 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC11/23...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE heater. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: General Safety Precautions
GENERAL SAFETY PRECAUTIONS Read and ensure you fully understand the following precautions and the hazards associated with this type of equipment. 1. Check the heater thoroughly for damage. NEVER operate a damaged heater. 2. DO NOT modify the heater or operate a heater which has been modified. 3. - Page 4 20. This heater is designed to heat larger areas such as workshops. DO NOT use the heater for any other function. It is not suitable for drying clothes or laundry. 21. Young children must be kept away unless continuously supervised. FRESH AIR REQUIREMENTS •...
-
Page 5: If You Smell Gas
IF YOU SMELL GAS Liquid Propane gas has a man-made odourant added specifically for detection of gas leaks. If a leak occurs you should be able to smell the gas. Since Propane (LP) is heavier than air you should smell for the gas odour near to the floor. ANY GAS ODOUR requires immediate attention. - Page 6 CRITICAL POINTS TO REMEMBER! 1. Propane (LPG) gas has a distinctive odour. Learn to recognize the odour. 2. A periodic sniff test around the joints; i.e. hose, connections. etc, is a good safety practice under any conditions. FEATURES OF THE GSH15 HEATER Understanding the basic operation of the heater will reinforce the need to maintain it in top condition at all times whilst always observing the safety precautions.
-
Page 7: Component Parts
COMPONENT PARTS Mounting bracket Connecting hose Washer and spring washer Gas tap Cylinder valve Piezo ignition button Wingnut Cylinder connector Regulator connector Appliance connector Constant pressure regulator Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 8 Remove the heater from the carton and remove all protective material used for shipment. Check the heater for possible shipping damage. Should any damage be apparent, please notify your CLARKE dealer immediately. ASSEMBLING THE SUPPORT STAND 1. Fit the mounting bracket onto the collar of...
-
Page 9: Gas Connection
GAS CONNECTION WARNING: GAS CYLINDERS MUST BE USED AND STORED IN ACCORDANCE WITH THE ‘HIGHLY FLAMMABLE LIQUIDS AND LIQUEFIED PETROLEUM GASES REGULATIONS 1972. WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. - Page 10 4. Place the regulator on the cylinder connection and hand tighten by turning anti-clockwise. 5. Tighten firmly using a gas spanner (or an adjustable spanner), continuing in an anti-clockwise direction. 6. Simply turn the valve hand wheel on the cylinder anti-clockwise when you need to start the flow of gas.
-
Page 11: Operation
OPERATION- WARNING: BEFORE STARTING THE HEATER YOU MUST ENSURE THAT THE MINIMUM VENTILATION REQUIREMENTS ARE OBSERVED TO AVOID THE RISK OF CARBON MONOXIDE POISONING. WARNING: THIS HEATER WILL BE HOT DURING NORMAL OPERATION. AVOID PHYSICAL CONTACT. DO NOT ALLOW CLOTHING OR OTHER COMBUSTIBLE MATERIALS TO TOUCH THE HEATER. - Page 12 NOTE: Open the shut off valve and listen for the gas passing through the heater for a few moments before operating the igniter and attempting to light the heater. New installations generally require this. NOTE: When lighting the burner with a taper, light at the bottom of the screen, not at the nozzle.
-
Page 13: Troubleshooting
TROUBLESHOOTING Fault Cause Remedy Burner fails to light 1.Gas supply valve 1.Open gas supply valve closed. slowly 2.Excess gas flow 2.Close propane supply valve at propane tank and re- open slowly. 3.Piezo ignition not 3.Check wire lead for sparking. damage. Replace igniter assembly. -
Page 14: Cleaning And Maintenance
5. If the hose shows evidence of excessive abrasion or wear or if the hose is cut it must be replaced prior to the heater being put into operation. The replacement hose assembly shall be as supplied by CLARKE International. 6. The heater, including hose and regulator assembly, should be inspected at least annually by a qualified service person. -
Page 15: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
