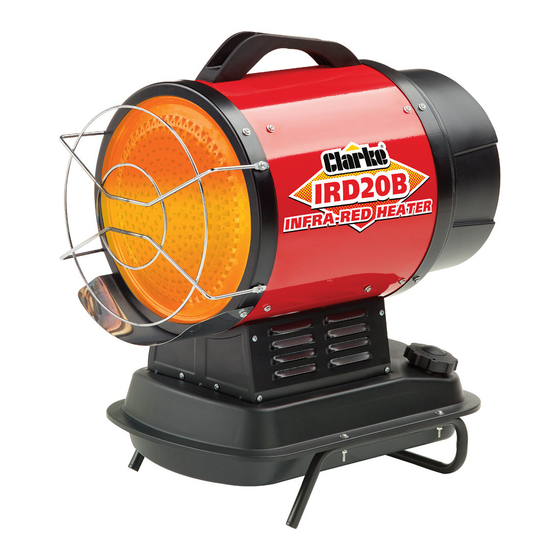

- Page 1 INFRARED DIESEL HEATER MODEL NO: DEVIL IRD20B PART NO: 6925500 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0518 iSS.3...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for choosing this Clarke Infrared Heater which is ideal for the heating of work areas in large, well ventilated rooms or outbuildings. It is not intended to be used to reach and maintain a certain level of human thermal comfort within an enclosed space in which the product is situated. -
Page 3: Technical Specification
TECHNICAL SPECIFICATION Dimensions (L x W x H) 580 x 340 x 625 mm Weight (empty) 18.5 kg Fuel Diesel/paraffin Fuel consumption 1.9 L per hour Fuel Tank capacity 10.5 litres Ignition type Direct spark Air displacement 400 m Continuous working time 6 hr (before re-fueling) Over heating protection Max output... -
Page 4: General Safety Precautions
If in doubt, do not use the heater and consult your local Clarke dealer. 3. Never carry out any modifications to this heater. If experiencing difficulty of any kind consult your local Clarke dealer. 4. Use the heater in accordance with any applicable fire regulations. OPERATING ENVIRONMENT 1. -
Page 5: Personal Safety
VENTILATION Even though this heater operates very close to 100 percent combustion efficiency, it still produces small amounts of carbon monoxide. Carbon monoxide (CO) is toxic. CO can build up in a confined spaces and failure to provide adequate ventilation can be fatal. The early symptoms of asphyxiation caused by inadequate ventilation are: •... -
Page 6: Electrical Safety
6. Take care not to spill diesel or paraffin onto the power cable as this could damage the insulation. 7. Never move, replenish the fuel supply or handle the heater when it is hot, or in use. Turn it off and wait for it to cool down first. ELECTRICAL SAFETY 1. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 8: Devil Ird20B Heater Overview
DEVIL IRD20B HEATER OVERVIEW Power-on LED Fuel gauge Digital temperature display Fuel tank Power switch Fuel filler cap Temperature control knob The heater is supplied with a spare fuel filter, tank drain bolt and sealing washer. Fixings are supplied to connect the stand, heatshield and handle which are supplied loose. - Page 9 1. Remove heater from carton. and remove all protective material used for shipment. 2. Check the heater for any damage and notify your Clarke dealer immediately should any be apparent. NOTE: THERE MAY BE SOME DISCOLOURATION TO THE HEATING ELEMENT, THIS IS DUE TO THE HEATER BEING TESTED DURING THE MANUFACTURING PROCESS.
-
Page 10: Suitable Fuels
2. Remove the fuel cap. NOTE: If you lose the fuel cap a replacement must be obtained before use, this is available from the Clarke service department. 3. Fill the fuel tank with clean diesel or paraffin. 4. When refilling, inspect the mesh filter inside the filler neck for any trapped contamination and clean out if necessary. -
Page 11: Operation
Any equipment or workshop furniture should be a safe distance away as they could be adversely affected by heat. VENTILATION The heater must only be installed in a room which is well ventilated. Ventilation is essential to reduce the dangers of carbon monoxide poisoning. OPERATION HEATER START UP 1. -
Page 12: Fault Code Display
FAULT CODE DISPLAY The digital display can show the following fault codes. FAULT CODE CAUSE SOLUTION FO:- Operation error 1. Heater is switched on 1. Disconnect from power before being plugged supply, switch off and then plug in again before switching on. F1:- Photocell error 1. -
Page 13: Fault Finding
FAULT FINDING Problem Cause Solution Heater fires but shuts off 1. Dirty fuel filter 1. Clean/replace fuel filter after a short period of 2. Nozzle is dirty 2. Clean/replace nozzle time. 3. Photocell lens is dirty 3. Clean photocell 4. Photocell not installed 4. -
Page 14: Cleaning And Maintenance
Unauthorised persons should not attempt to carry out repairs of the burner components. In the event of damage or broken components, replacements are available from Clarke Parts & Service Department. CLEANING 1. Use a damp cloth wrung out in a solution of soapy water to clean the exterior of the heater. -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
