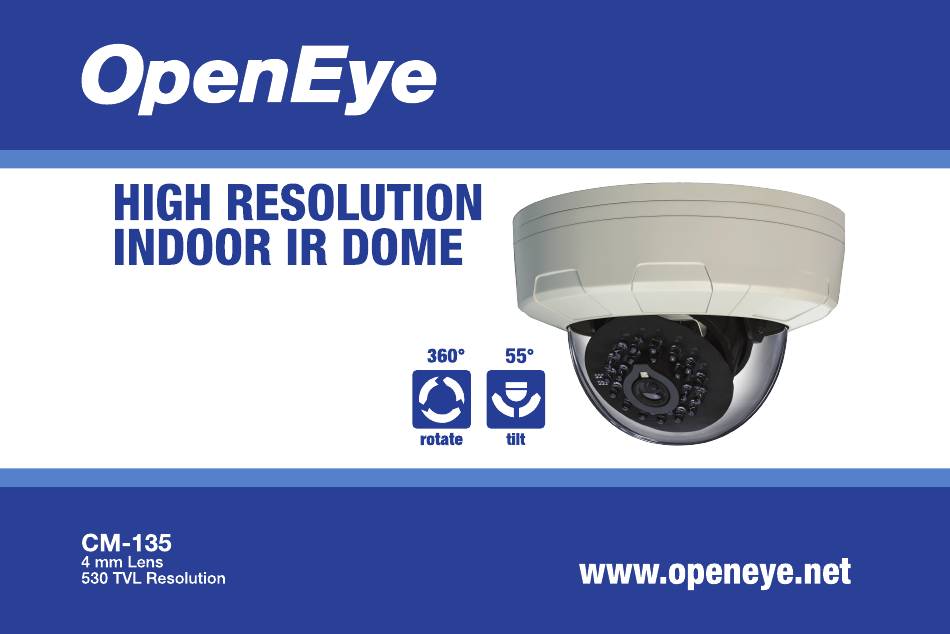

  • Page 1 Installation Manual...

  • Page 2: User Information

    User Information CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Explanation of Symbols The lightning flask with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. THE GRAPHIC SYMBOLS WITH SUPPLEMENTAL MARKING ARE ON THE BOTTOM OF THE SYSTEM. “WARNING - TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE”...
  • Page 3 INFORMATION This equipment has been tested and found to comply with limits for a Class A digital devices, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense. WARNING The manufacturer could void the user’s authority to operate the equipment. CAUTION - To prevent electric shock and risk of fire hazards: • Do NOT use power sources except for that specified. • Do NOT expose this appliance to rain or moisture.

  • Page 4: Table Of Contents

    Contents Before using this camera, please read this operation manual carefully and keep this manual for future reference. User Information ......2 Contents ........4 Safety Instructions ..... 5 Precautions ......... 6 Features ........7 Installation ........8 Camera Operation ....12 Troubleshooting ......35 Specifications ......36...

  • Page 5: Safety Instructions

    Safety Instructions Read Instructions Installation Read all of the safety and operating instructions Do not place this product on an unstable cart, stand, before using the product. or table. The product may fall causing serious injury to a child or adult, and damage to the product. Mounting should follow the manufacturer’s instructions and Retain Instructions should use a mounting accessory recommended by Save these instructions for later use. the manufacturer. Cleaning Power Source Unplug this appliance from wall outlet before cleaning. This product should only be connected to the type Do not use liquid leaners or aerosol cleaners. Use a of power source indicated on the packaging. If you damp cloth for cleaning. are not sure of the type of power supplied to your location, consult your dealer or local power company. Water and Moisture Do not use this product near water or moisture. For example: near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, or near swimming pools.

  • Page 6: Precautions

    Precautions Handling Installation and Storage • Do not disassemble the camera. • Do not point the camera at the sun. This could damage the camera whether or not it is operating. • Never touch the parts inside the camera. • Do not install the camera where the temperature • Do not drop the camera or subject it to shocks and could exceed the allowable range. vibrations to avoid possible damage. • Be sure the ambient temperature is less than 40ºC • When attaching or removing the lens, handle with in installations intended for long term continuous care so that moisture and dust do not enter the operation. camera. • Avoid installing in a humid or dusty location. • Avoid installing in locations where there are strong magnetic fields and electric signals. • Avoid installing in locations where the camera would be subject to strong vibrations. • Never expose the camera to rain or water.

  • Page 7: Features

    Features • High Sensitivity 1/3 Inch Sony Super HAD CCD Min. Illumination (F1.2, 30 IRE): 0.1 Lux (Color) • 0.05 Lux (BW, ICR) 0.0 Lux (IR Led On) • Day & Night (Programmable or ICR) • OSD (On Screen Display) • High Performance Menus for Functions Privacy Zone Selectable (4 Programmable Zones) » Motion Detection Selectable (64 Programmable Zones) »...

  • Page 8: Installation

    Installation Box Contents:...
  • Page 9 Installing the Dome Camera Stick the guide pattern on the wall or ceiling. Drill four holes according to the guide pattern, then insert anchors into the holes. Pull the power / video cables to the installation point and connect to the camera. Attach the camera to the ceiling using the included screws. Adjust the camera view and focus by turning and moving the 3-axis camera by hand. Place the dome cover over the base and press it into place. Note Insert a coin in the slot on the side of the camera and twist to remove the dome cover.
  • Page 10 Camera Lens...
  • Page 11 Connections...

  • Page 12: Camera Operation

    Camera Operation SETUP MENU CAMERA ID • • SHUTTER • AUTO • • FIXED • MANUAL WHITE BAL. • • • FIXED • MANUAL FUNCTION • • • DAY NIGHT • PRIVACY • MIRROR • GAMMA • MOTION ADJUST • CONTRAST • SHARPNESS •...
  • Page 13 Setting up the Menu Press the joystick for one second and the OSD Setup will appear on the screen. Move the joystick up, • Press and hold the joystick 1 down, left & right to control the OSD functions second to access the SETUP mode. • Select menu options using the joystick. (up, down, left, right)
  • Page 14 Main Menu - SETUP Press the joystick to open SETUP mode. The MAIN SETUP menu is displayed on the monitor. Select an OSD item using UP, DOWN. Set details using LEFT, RIGHT. Select EXIT and then press the MENU button to finish SETUP (Save and Exit).
  • Page 15 Main Menu - CAMERA ID Camera ID setup (default setting OFF) Select CAMERA ID on the SETUP menu. Use the joystick (LEFT, RIGHT) to set CAMERA ID to ON  . Press the joystick to open ID SETUP. Use the joystick to change the character. The camera name can be up to 63 characters. Select C and press the joystick to clear the ID. Select  and press the joystick to exit the ID setup mode. POSITION setup Select POSITION  press the joystick. Move the camera name using UP, DOWN, LEFT, RIGHT. Press the joystick to confirm the camera name location.
  • Page 16 Main Menu - SHUTTER SHUTTER setup (default setting OFF) Select SHUTTER on the SETUP menu. Use the joystick (LEFT, RIGHT) to set the desired SHUTTER mode: AUTO  FLK  FIXED  MANUAL .
  • Page 17 Menu [SHUTTER] - FIXED FIXED  setup Select SHUTTER on the SETUP menu. Use the joystick (LEFT, RIGHT) to set SHUTTER to FIXED  . Use the joystick (LEFT, RIGHT) to set the shutter speed: 1/60 ~ 1/100,000...
  • Page 18 Main Menu - WHITE BALANCE WHITE BALANCE setup Select SHUTTER on the SETUP menu. Use the joystick (LEFT, RIGHT) to set the desired mode: ATW  AWB  FIXED  MANUAL . FIXED  setup Set FIXED mode: MODE 1 ~ MODE 4 MANUAL  setup Set the RED and BLUE color value temperature.
  • Page 19 Main Menu - FUNCTION FUNCTION  setup Select FUNCTION on the SETUP menu. Use the joystick (UP, DOWN) to select items. Use the joystick (LEFT, RIGHT) to set details.
  • Page 20 Menu [FUNCTION] - Back Light Compensation 1 BLC SETUP mode (Back Light Compensation) Select FUNCTION on the SETUP menu. Use the joystick (LEFT, RIGHT) to set FUNCTION to BLC ON  . BLC AREA  setup Use the joystick (UP, DOWN, LEFT, RIGHT) to move the AREA setup position. Press the joystick to set or release BLC AREA. Press and hold the joystick to open the BLC AREA MODE menu.
  • Page 21 Menu [FUNCTION] - Back Light Compensation 2 BLC AREA menu • ALL CLEAR - Clear all set AREA blocks. • ALL SET - Set all 64 AREA blocks. • RETURN - Return to BLC AREA setup mode. • EXIT - Save AREA and return to BLC SETUP mode.
  • Page 22 Menu [FUNCTION] - Back Light Compensation 3 BLC RATIO mode Use the joystick (UP, DOWN) to move to BLC RATIO. Use the joystick (LEFT, RIGHT) to change the BLC RATIO level (0 ~ 63). 0 : MIN 63 : MAX...
  • Page 23 Menu [FUNCTION] - Auto Gain Control AGC CONTROL setup mode (Auto Gain Control) Select FUNCTION on the SETUP menu. Use the joystick (LEFT, RIGHT) to set FUNCTION to AGC ON  . Press the joystick to open the AGC CONTROL screen. Use the joystick (LEFT, RIGHT) to adjust the AGC GAIN value (0~255). 0 : MIN 255 : MAX...
  • Page 24 Menu [FUNCTION] - DAY NIGHT 1 DAY NIGHT setup Use the joystick (UP, DOWN) to move to DAY NIGHT. Use the joystick (LEFT, RIGHT) to set the desired mode: AUTO  B/W  COLOR. AUTO  mode setup Press the joystick to select AUTO  . Use the joystick (UP, DOWN) to select items. Use the joystick (LEFT, RIGHT) to change the value.
  • Page 25 Menu [FUNCTION] - DAY NIGHT 2 DAY NIGHT AUTO OSD description • DELAY DAY --> NIGHT or NIGHT --> DAY conversion time setup 0 : No DAY NIGHT AUTO conversion 1~63 : You can set from 1 second to 15 seconds. • START LEVEL DAY --> NIGHT conversion illumination intensity setup 0~255 (DEFAULT : 4 Lux) 0 : High illumination intensity 255 : Low illumination intensity Initial value setup is recommended. • END LEVEL NIGHT --> DAY conversion illumination intensity setup 0~255 (DEFAULT : 12 Lux) 0 : High illumination intensity 255 : Low illumination intensity Initial value setup is recommended.
  • Page 26 Menu [FUNCTION] - DAY NIGHT 3 B/W  mode setup Press the joystick to select B/W  . Use the joystick (LEFT, RIGHT) to set BURST ON or OFF.
  • Page 27 Menu [FUNCTION] - PRIVACY PRIVACY setup Default setting OFF - Use the joystick (LEFT, RIGHT) to select ON . When PRIVACY is set to ON four AREA groups will display behind the setup screen. Press the joystick to open the PRIVACY details. PRIVACY details setup • AREA SEL - Select the PRIVACY AREA (0~3) • AREA STATE - ON/OFF • LEFT - Expand/Reduce size of the left side of the selected AREA • RIGHT - Expand/Reduce size of the right side of the selected AREA • TOP - Expand/Reduce size of the top of the selected AREA • BOTTOM - Expand/Reduce size of the bottom of the selected AREA • COLOR - Change the color of the PRIVACY AREA (16 colors)
  • Page 28 Menu [FUNCTION] - MIRROR MIRROR setup Use the joystick (LEFT, RIGHT) to set MIRROR ON or OFF. Default setting is OFF.
  • Page 29 Menu [FUNCTION] - GAMMA GAMMA setup Use the joystick (UP, DOWN) to select GAMMA. Default setting 0.45 Use the joystick (LEFT, RIGHT) to adjust the GAMMA value: USER  0.05  0.10  0.15~1.0...
  • Page 30 Menu [FUNCTION] - MOTION MOTION DETECTION setup Use the joystick (LEFT, RIGHT) to set MOTION ON or OFF. Default setting is OFF. When MOTION is set to ON press the joystick display the MOTION details. AREA  setup Select AREA and press the joystick to open the MOTION AREA setup MOTION TH. setup Use the joystick (LEFT, RIGHT) to set motion sensitivity 0 (MAX ~ 255 MIN MOTION TRACE setup Display (ON) / Hide (OFF) the motion detection AREA.
  • Page 31 Menu [FUNCTION] - MOTION AREA 1 MOTION AREA setup Use the joystick (UP, DOWN, LEFT, RIGHT) to move the AREA setup position. Press the joystick to set or release MOTION AREA. Press and hold the joystick to open the MOTION AREA menu. MOTION AREA menu • ALL CLEAR - Clear all set AREA blocks. • ALL SET - Set all 64 AREA blocks. • RETURN - Return to MOTION AREA setup.
  • Page 32 Main Menu - ADJUST ADJUST setup Select ADJUST on the SETUP menu and press the joystick Use the joystick (LEFT, RIGHT) to change the level values. CONTRAST setup Adjust Y-gain value (0 ~ 255). SHARPNESS setup Adjust aperture value (0 ~ 31). CB_GAIN setup Adjust color CB_GAIN value (0 ~ 255). CR_GAIN setup Adjust color CR_GAIN value (0 ~ 255)
  • Page 33 Main Menu - LANGUAGE LANGUAGE setup Use the joystick (UP, DOWN) to select LANGUAGE on the SETUP menu. Use the joystick (LEFT, RIGHT) to change the LANGUAGE. • ENGLISH • Korean • Chinese1 • Chinese2 • Japanese...
  • Page 34 Main Menu - RESET RESET Select RESET on the SETUP menu and press the joystick. Select YES to reset the camera to default factory settings.

  • Page 35: Troubleshooting

    Troubleshooting If you have trouble operating your camera, refer to the following table. If the information provided in this manual does not enable you to solve the problem, contact an authorized technician. Problem Solutions Nothing appears on the • Check that the power cord and line connection between the camera and screen monitor are fixed properly. • Check that you have properly connected the VIDEO cable to the camera VIDEO output jack. The image on the screen is • Is the lens dirty? Clean your lens with a soft, clean cloth. • Change the monitor settings • If the camera is exposed to too strong light, change the camera position. • Adjust the lens’ focus. The image on the screen is • Adjust the contrast feature of the monitor. dark • If you have an intermediate device, set the 75Ω / Hi-z properly. • Adjust the DC level on the OSD menu. The camera is not working • Check that you have properly connected the camera to an appropriate properly, and the surface power source. of the camera is hot. The image on the screen • Is the camera facing direct sunlight or fluorescent lighting? Change the flickers camera position.

  • Page 36: Specifications

    Specifications Model CM-135 Image Sensor 1/3” Sony SuperHAD Imaging DSP NEXT NVP2020 IP Rating None Type / Format NTSC Wide Dynamic Range Minimum Illumination 0.3 lux @ F1.2 (30 IRE, AGC ON) 0 lux @ F1.2 (IR LED) 0.5 lux @F1.2 (50 IRE, AGC ON) Day / Night IR Emitting TDN Horizontal TVL 530 TVL Service Monitor Jack S/N Ratio >48dB (AGC Off) Focal Length 4 mm Iris Control Synchronization Video Output 1.0Vpp, 75Ω Unbalanced...
  • Page 37 Model CM-135 White Balance Auto White Balance Range 1800 K ~ 11000 K Backlight Compensation On/Off (Level Adjustable) Auto Gain Control On/Off (Level Adjustable) Operating Temperature 14ºF ~ 122ºF (-10ºC ~ 50ºC) Heater Power Consumption 3.6W (Max) Rated Amperage 0.28A Input Voltage 12vDC ±10% IR Range Up to 50 ft (15 m) IR LEDs 24 (850nm / 30º) Weight 0.8 lbs (0.366 kg) Dimensions Dome: ø3.9” (100 mm) x H: 2.2” (56 mm) Housing: ø5.5” (140 mm) x H: 2.15” (55 mm) Housing / Dome Cover White / Smoke...
  • Page 38 NOTES...
  • Page 39 NOTES...
  • Page 40 29697AA ©2009 OpenEye. All Rights Reserved. Information contained in this document is subject to change without prior notice. OpenEye does its best to provide accurate information but cannot be held responsible for typos or mistakes. A12931...
