OpenEye OE-C9112F12 Quick Start Manual

CONNECTIONS
1
2
3
4
2
Waterproof Cable
5 4
1 1 Thread lock cap Thread lock cap
2 2 Rubber plug Rubber plug
3 3 RJ45 enclosure RJ45 enclosure
NOTE:
The product is intended to be supplied by external power source (UL listed/ IEC 60950-1/ IEC 62368-1) which output is complied
with ES1,PS2/LPS, output rating 1) 12Vdc, 0.93 A minimum or 2) 48Vdc, 0.27A minimum (PoE), ambient temperature 55°C
minimum.
Liberty Lake, WA, USA
509.232.5261
openeye.net
1 1 RJ-45 RJ-45 For network and PoE connections For network and PoE connections
Pink Pink Audio In (Line In) Audio In (Line In)
2 2 Audio I/O Audio I/O
Green Green Audio Out (Line Out) Audio Out (Line Out)
Black Black DC 12V - DC 12V -
3 3 Power (12vDC)* Power (12vDC)*
Red Red DC 12V + DC 12V +
1 1 Alarm In - Alarm In -
2 2 Alarm In + Alarm In +
4 4 Alarm I/O Alarm I/O
3 3 Alarm Out - Alarm Out -
4 4 Alarm Out + Alarm Out +
*12vDC power input port should be plugged when not in use.
To restore the camera to factory To restore the camera to factory
defaults: defaults:
1
1. 1. Disconnect power for 30 Disconnect power for 30
seconds. seconds.
1 1 Reset Button Reset Button
2. 2. Reconnect power and wait 30 Reconnect power and wait 30
seconds. seconds.
3. 3. Press and hold the reset Press and hold the reset
button for 20 seconds. button for 20 seconds.
Supports up to 512GB microSD Supports up to 512GB microSD
card for Edge storage. card for Edge storage.
2 2 MicroSD Card Slot MicroSD Card Slot Do not add or remove the Do not add or remove the
microSD card when the camera microSD card when the camera
is powered on. is powered on.
3 1
2
4 4 Rubber "O" ring Rubber "O" ring
5 5 Camera cable Camera cable
Copyright ©2022 OpenEye.
All Rights Reserved. Information contained in this
document is subject to change without prior notice.
OpenEye does its best to provide accurate information but
cannot be held responsible for typos or mistakes.
This quick start guide provides
only basic information on the
camera's settings and operation for
initial installation. Please read the
user manual for optimal camera
configurations.
Find the latest product
documentation and software.
Scan the QR code or go to
openeye.net/downloads
QUICK START GUIDE

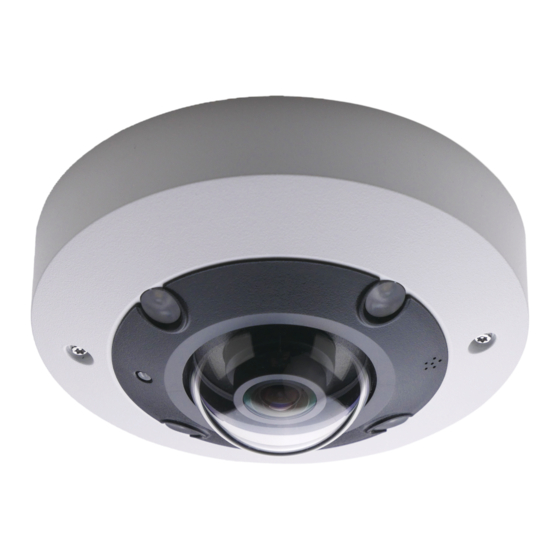

12MP Ultra HD Fisheye
OE-C9112F12
37690AC
