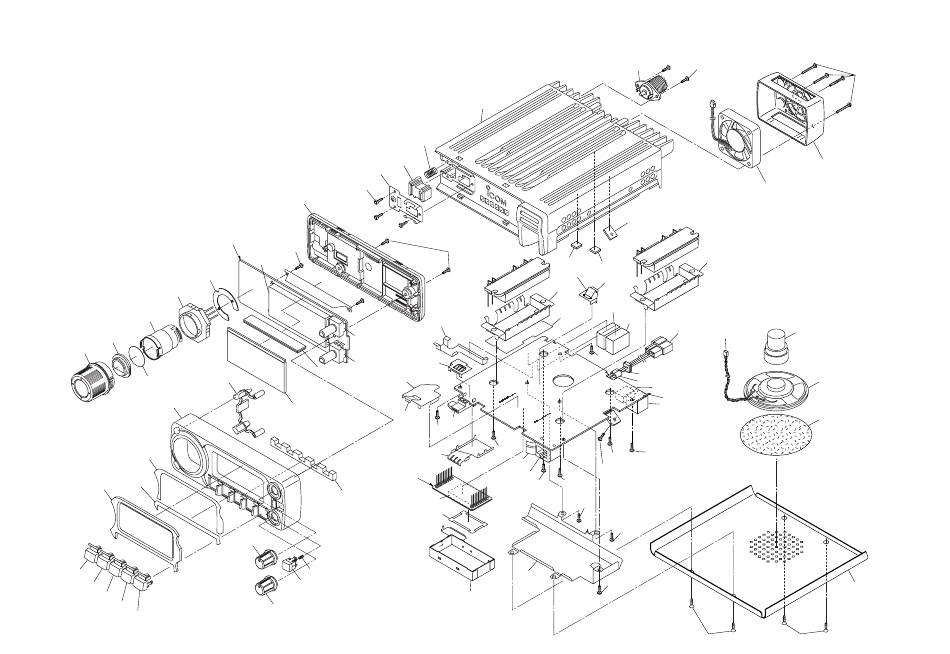

Icom IC-E208 Service Manual page 37

CONTROL UNIT
MP18 (CT)
S1 (CT)
MP7 (CT)
MP6 (CT)
MP5 (CT)
MP9 (CT)
MP17 (CT)
MP1 (CT)
MP16 (CT)
MP19 (CT)
MP15 (CT)
MP3 (CT)
MP10 (CT)
MP11 (CT)
MP12 (CT)
MP13 (CT)
MP14 (CT)
7 - 2
MP17 (C)
MP4 (C)
MP3 (C)
MP12 (C)
MP2 (CT)
MP25 (CT)
DS22 (CT)
MP21
(CT)
R1 (CT)
R5 (CT) MP9 (M)
EP18 (CT)
MP6 (M)
DS1 (CT)
MP7 (M)
MP2 (M)
VCO
BOARD
MP20 (CT)
MP2(V)
MP22 (CT)
MP8 (CT)
Unit abbreviations (C): CHASSIS PART
MP4 (CT)
(M): MAIN UNIT
(CT): CONTROL UNIT
(V): VCO UNIT
MP1 (C)
MP26 (CT)
MP19 (C)
MP20 (C)
MP10 (M)
MP8 (M)
MP1 (M)
MP27 (C)
MP5 (M)
MP4 (M)
MP8 (C)
J503 (M)
MP8 (C)
MP7 (C)
MP7 (C)
MP3 (M)
MP5 (C)
J502 (M)
MP7 (C)
MP7 (C)
MP8 (C)
MP3 (V)
MP24 (C)
MP8 (C)
MP1 (V)
J1 (C) MP6 (C)
MF1(C)
MP21(C)
MP1 (M)
MP26 (C)
W501 (M)
WS1 (C)
EP10 (M)
EP11 (M)
J506 (M)
MAIN UNIT
J504 (M)
MP8 (C)
MP8 (C)
MP9 (C) MP9 (C)
MP11 (C)
MP10 (C)
MP2 (C)
SP1 (C)
MP14 (C)
MP13 (C)
