6. How to I nstall Option in Frequency Con-
verter

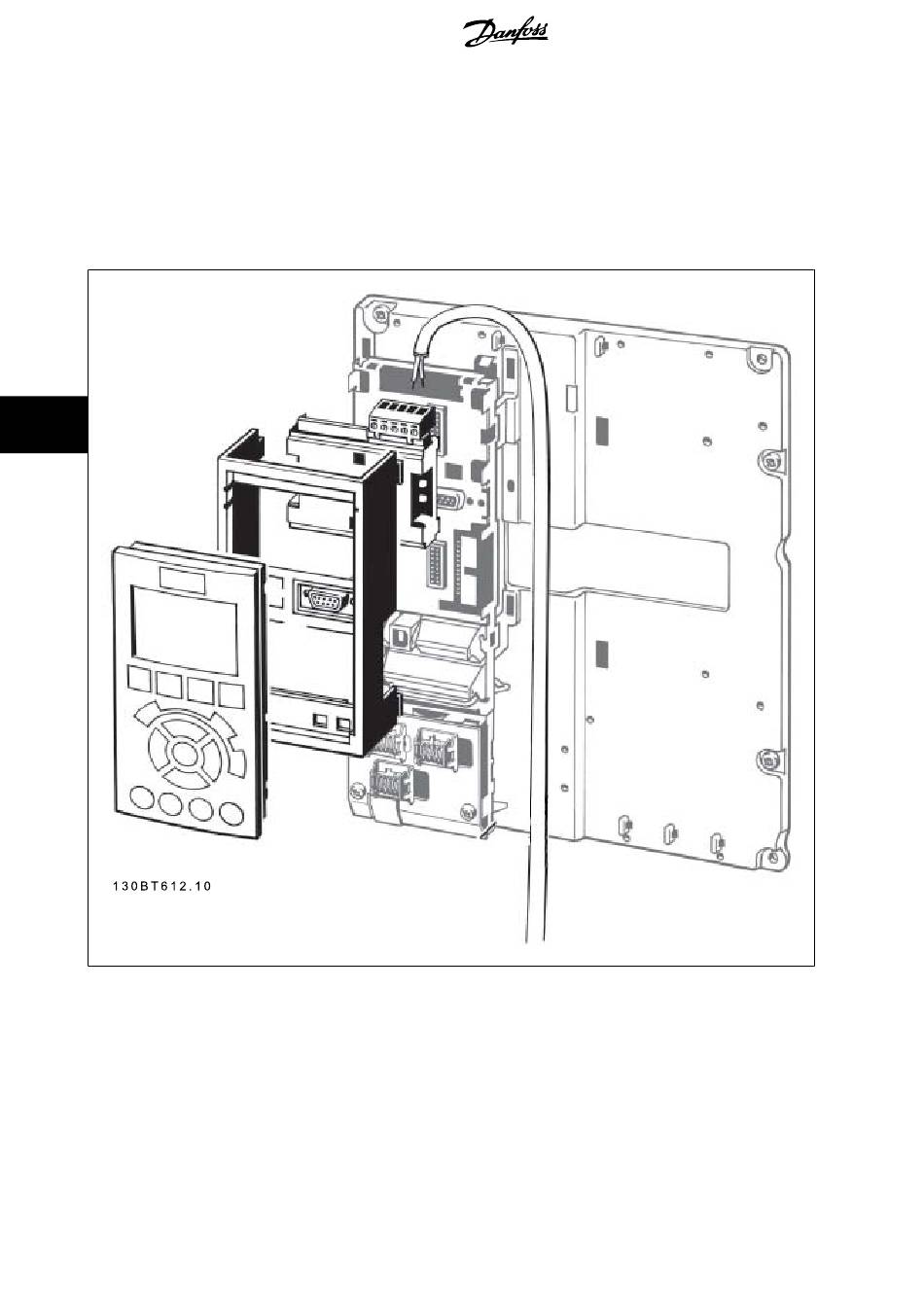

I nstructions:
-
Remove LCP panel from the AKD 102
-
Remove the frame located beneath and discard
-
Push the option into place. Two positions are possible, with cable terminal facing either up or down
-
Push the fieldbus option adaptor frame for the AKD 102 into place
-
Replace the LCP and attach cable
-
On A1 and A2 enclosures with cable terminal facing up: Fasten the cable onto the de-coupling plate (the AKD 102 top surface has pre-drilled
threaded holes for attaching the de-coupling plate to the unit).
6
Please note, for connection of screen, please refer to the graphic in section 4.1.1
16
The LonWorks Option
.
MG.11.P1.02
®
ADAP-KOOL
AKD-LonWorks
