Planning Information
Built-In Model 695
H A N D L E P L A C E M E N T M O D E L S – O V E R L A Y A P P L I C A T I O N
REFRIGERATOR DOOR PROFILE – TOP VIEW
GLASSWELL PROFILE
NOTE: FOR OVERLAY APPLICATIONS, OPTIONAL STAINLESS STEEL HANDLE
H A N D L E P L A C E M E N T

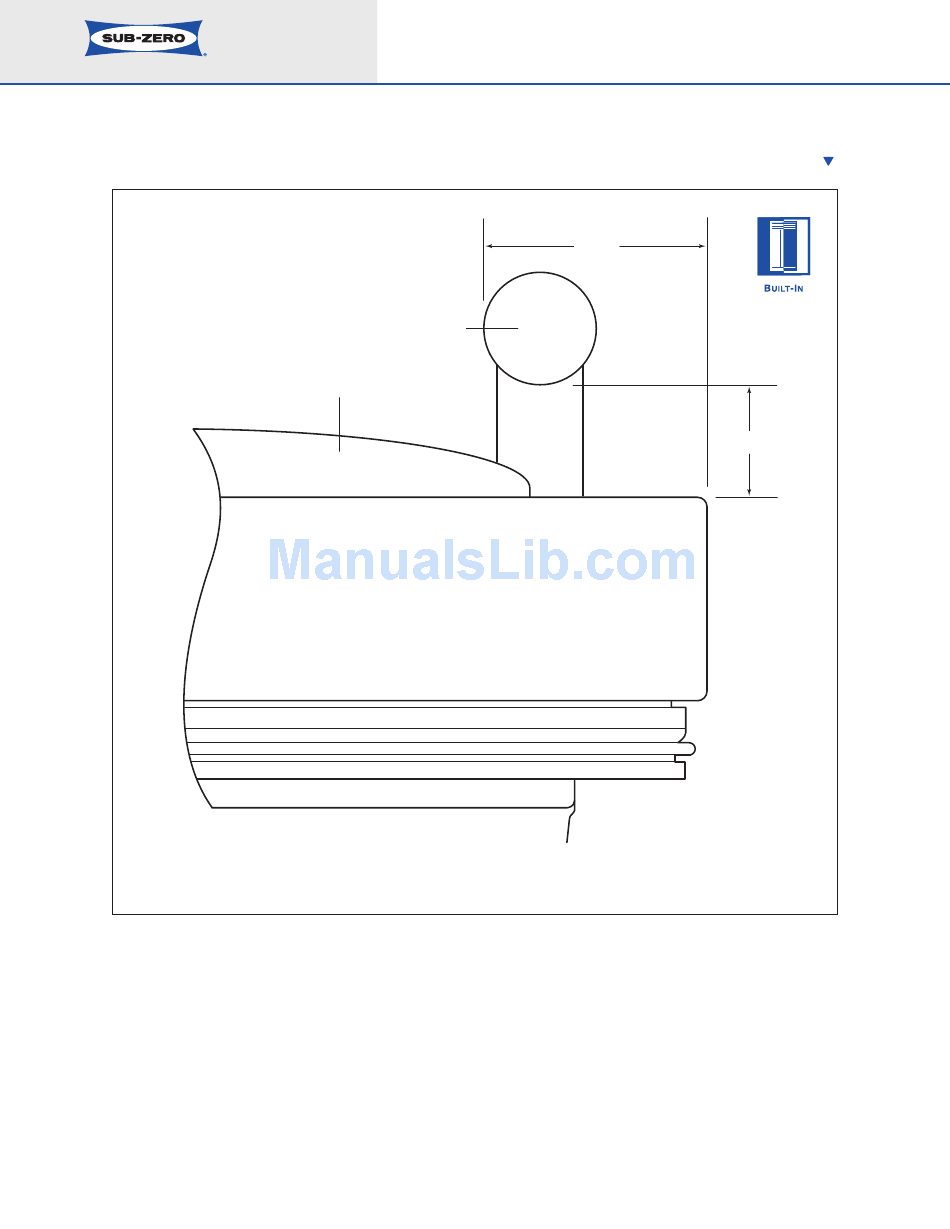

The full-scale illustration above shows proper
placement of the stainless steel handle for the
Model 695 refrigerator door in an overlay appli-
cation.
Dimensions in parentheses are in
millimeters unless otherwise specified.
STAINLESS STEEL
HANDLE PROFILE
DOOR
MUST BE MOUNTED ON PANEL MINIMUM 5/8" (16) THICK.
Adequate clearance is required under the handle
to assure proper access to the glasswell.
IMPORTANT NOTE: For overlay applications,
the optional stainless steel handle must be
mounted on a panel at least
2"
(51)
1"
(25)
5
/ " (16) thick.
8
14
