Planning Information

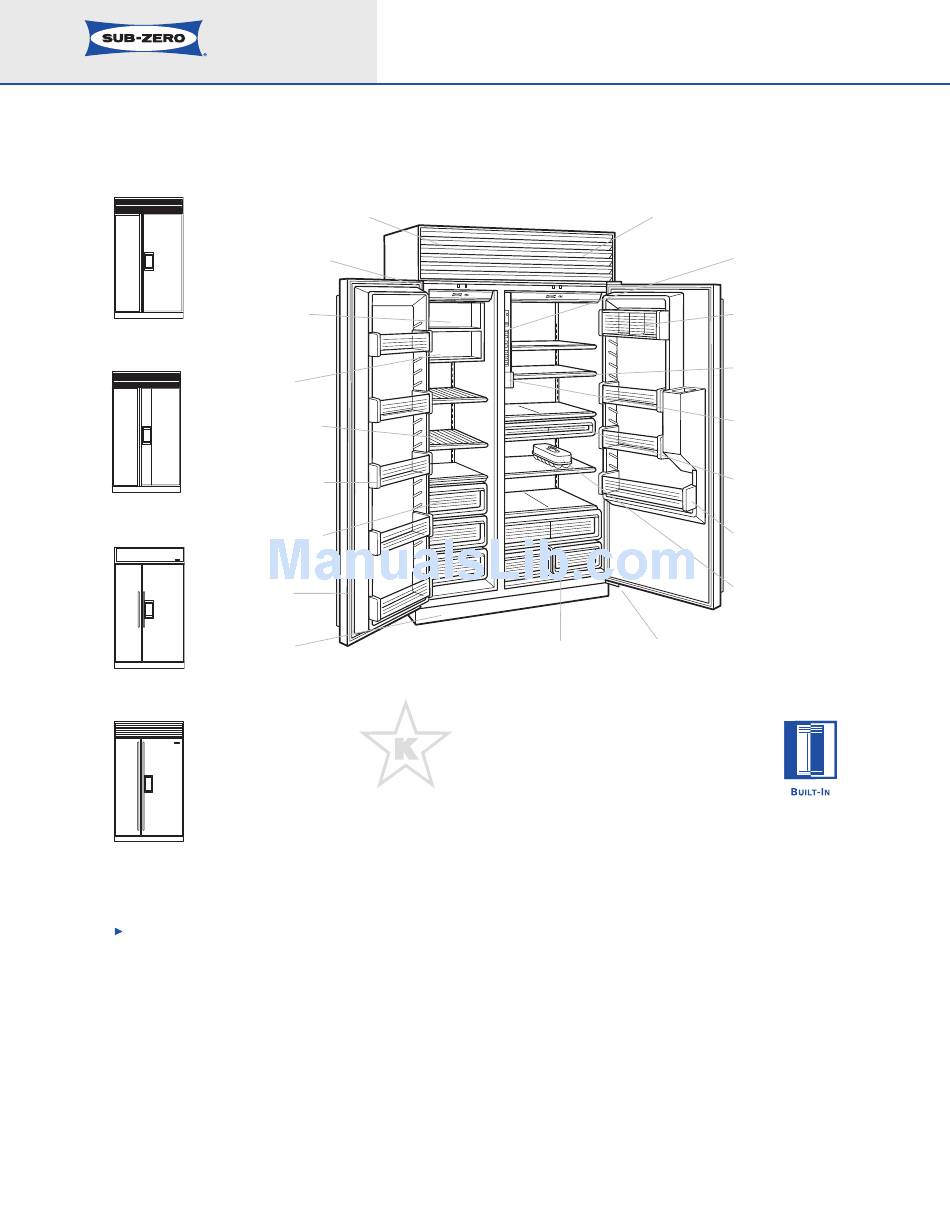

Built-In Model 695
Side-by-Side Refrigerator / Freezer with Ice and Water Dispenser
Front venting allows unit
to be completely built in
Serial and model
number plate
Automatic ice
maker
Model 695/F
Framed
Freezer
utility rack
Adjustable wire
shelves
Adjustable door
shelves
Model 695/F
Partial Framed
Roll-out freezer
baskets
Four-sided
magnetic gaskets
Removable
kickplate
Model 695/O
Overlay
Model 695/S
Classic
Stainless Steel
The Sub-Zero Model 695 side-by-side
refrigerator / freezer with ice and water
dispenser is available in your choice of the
framed, partial framed, overlay or stainless
steel design application. The stainless steel
model comes with classic stainless steel
wrapped doors.
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
High humidity
crisper drawer
(Stainless steel design shown)
With the installation of a harness kit, these
appliances are Star-K compliant to meet strict
religious regulations in conjunction with specific
instructions found on star-k.org. You may purchase
this harness kit through your Sub-Zero dealer.
To obtain local dealer information, visit the Locator
section of our website, subzero.com.
S
ub-Zero offers two distinctive different models with
ice and water dispensing through the door. This side-
by-side unit is 48" (1219) wide and the dispenser is
placed on the refrigerator door to offer a sleek look and
most efficient use of interior storage space.
Hermetically sealed
refrigeration units
Lighted electronic
control panel
Adjustable dairy
compartment
Adjustable spill-
proof glass shelves
Bulk ice dispenser
Adjustable roll-out
utility basket
Adjustable door
shelves
Egg tray
Door closers
1
