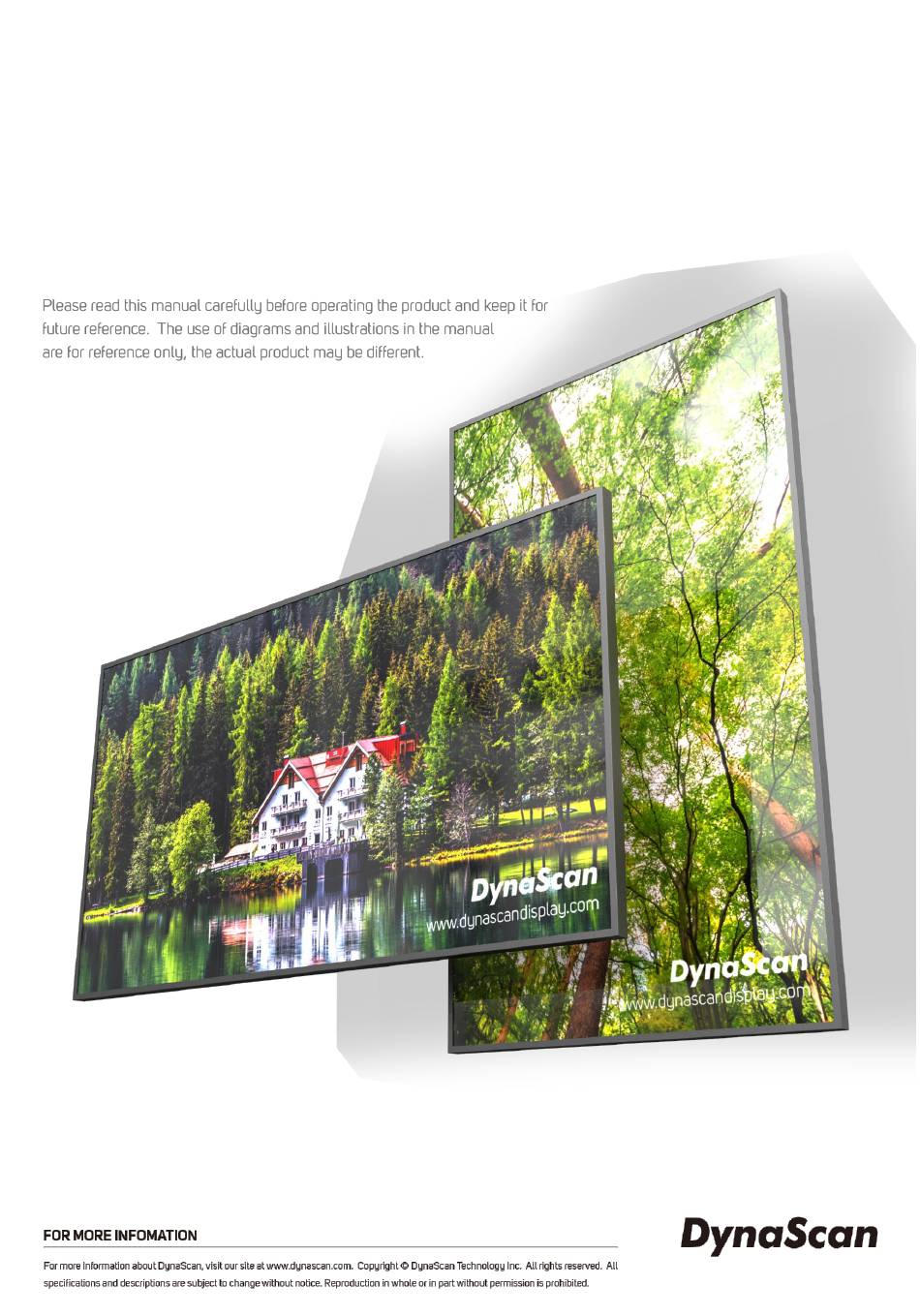

- Page 1 DS861LR4 USER MANUAL 86” 3500 Nits Ultra-High Brightness Digital Signage 66901 | V2.02...
- Page 2 Contents Material Contents Declaration ........................ 2 Recycling and Energy Information ......................2 Declaration of Conformity ........................3 Déclaration de conformité........................4 Safety Precautions ..........................5 Précautions relatives à la sécurité ......................6 Important Safety Information ........................7 Informations importantes relatives à la sécurité ..................8 Getting Started ............................
-
Page 3: Material Contents Declaration
SJ/T-11363-2006 and EU 2011/65/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations. -
Page 4: Declaration Of Conformity
End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Manufacturer Name DynaScan Technology Corp. Manufacturer Address 7F, 66 Huaya 1st Road, Guishan, Taoyuan 33383,Taiwan This device complies with Directive 2014/53/EU issued by the Commission of the European Community. -
Page 5: Déclaration De Conformité
émetteurs. Les utilisateurs finaux et les installateurs doivent recevoir les instructions d'installation des antennes et les conditions d'utilisation de l'émetteur pour satisfaire à la conformité aux expositions RF. Nom du fabricant DynaScan Technology Corp. Adresse du fabricant 7F, 66 Huaya 1st Road, Guishan, Taoyuan 33383,Taï wan Cet appareil est conforme à... -
Page 6: Safety Precautions
Safety Precautions CAUTION Do not install near flammable material or any heat sources. Do not defeat the safety purpose of the grounding-type plug. Do not disassemble the display to avoid electrical shock or burn. Normal operating condition considers installation at an altitude below 2000m; some abnormalities may be experienced when installed at an altitude above 2000m. -
Page 7: Précautions Relatives À La Sécurité
Précautions relatives à la sécurité PRÉ CAUTIONS N'installez pas installer à proximité de matériaux inflammables ou de sources de chaleur. Ne pas compromettre la sécurité de la fiche de mise à la terre. Pour éviter tout choc électrique ou la brûlure, ne démontez pas l'écran. Le produit peut normalement être utilisé... -
Page 8: Important Safety Information
Handle the LCD with care. Save the packaging materials for transport later. Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: ... - Page 9 Nettoyez l’arrière de l’écran LCD au moins une fois par mois afin d’éliminer la poussière et autres particules. Débranchez immédiatement l'écran LCD et contactez un réparateur professionnel certifié DynaScan dès que possible lorsque l'une des situations suivantes se produit : Cordon d'alimentation ou fiche d'alimentation endommagé.
-
Page 10: Getting Started
Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products. DS861LR4 Professional LCD. Power cable x1 pc. ... -
Page 11: Bien Débuter
Vérifiez que les accessoires ci-dessous sont fournis avec l’écran. Si l'un d'eux est manquant, veuillez contacter immédiatement votre revendeur. La couleur et la forme des accessoires peuvent varier selon les produits. É cran LCD DS861LR4 Professional. Câble d'alimentation x 1 Télécommande x 1 Guide de démarrage rapide x 1... -
Page 12: Installation
The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation. - Page 13 Orientation When used in the portrait orientation, the LCD should be rotated clockwise when looking at the front of the display such that the left edge becomes the top edge. <Front> Portrait mode: Rotate the set clockwise 90° (mandatory)
- Page 14 <Rear> Portrait mode: Rotate the set counterclockwise 90° (mandatory) The orientation sticker can be found on the rear of display, which is for distinguishing the direction of installation. Installation Location The wall and mount must have enough strength to support the LCD and its accessories. ...
-
Page 15: Wall Mounting
A wall mount is not included. Please purchase a VESA Standard wall mount to secure the LCD. DynaScan is not responsible for damages caused by using non-standard wall mounts. Verify that the mounting location can support the weight of the LCD before installation. -
Page 16: Connecting To A Power Source
Connecting to a Power Source Using the power cable provided, plug it in the power inlet on the side of the display shown in the diagram below. Connect the power cable to a 100-240 volt, 50 / 60Hz AC power outlet. Insert the plug completely into the socket. -
Page 17: Input/Output Terminals
Input / Output Terminals RJ-45 1 (IN): RJ45 network input connection. RJ-45 2 (IN): RJ45 network input connection. RS-232 (IN): RS232C network input connection for remote control from PC. HDMI 1 (IN): Connect the HDMI output of a PC or an AV device via a HDMI cable. HDMI 2 (IN): Connect the HDMI output of a PC or an AV device via a HDMI cable. -
Page 18: Powering On/Off The Display
Operating Instructions Powering On/Off the Display To turn on/off the display, press the power switch on the side of the display as shown in the diagram below. NOTE: The remote control only works when the power switch is ON. Using the Remote Control... - Page 19 Connection using an External Sensor Kit (ESK302) Connect the ESK302 cable to the mini USB port on the side of the display, and aim the remote at the IR receiver as shown below. Meanwhile, the IR receiver on the display will be disabled. The operating range of the remote control is 2.5 meters (8 feet).
- Page 20 *Color and shape may vary by model. ITEM DESCRIPTION POWER Power On / Off MENU OSD On / Off Move the cursor up or change the setting of selected item. ...
-
Page 21: Using The Built-In Keypad
Using the built-in keypad ITEM DESCRIPTION MENU OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. -
Page 22: Navigating The On Screen Display (Osd) Menu
Navigating the On Screen Display (OSD) Menu Press the MENU button on the built-in keypad or remote control to show the OSD. Use the navigation arrows to select and adjust the menu items. *The change of each setting can only enable when you press “LEFT” (refer to p.15) to back to the last menu layer. - Page 23 Note: The feature is only supported on User2 mode. Adjust the blue light level. Range 0 – 100. Blue Note: The feature is only supported on User2 mode. Adjust the contrast level. Range 0 – 100. Contrast Adjusts the Gamma value. (Native, 2.2, 2.4 Gamma and sGamma) Selects the black level to adjust the screen...
- Page 24 4. Backlight ITEM 1 ITEM 2 DEFAULT DESCRIPTION A. If the AUTO BRIGHTNESS is “Off”, the screen brightness will remain at HIGH LEVEL brightness value. B. If the AUTO BRIGHTNESS is “Auto”, the brightness of display will be adjusted according to the ambient light.
- Page 25 Note: When disabled, the remote control IR Control function can be enabled again from the control panel on the display or through the DynaScan “Display Manager” application. When in Power Off Mode, RS-232 controls do not function. Only [Main Power...
- Page 26 6. Information ITEM 1 ITEM 2 DEFAULT DESCRIPTION Resolution Input resolution. The display’s model. Model DS861LR4 The display’s serial number. Serial Number Hardware The H/W version. Firmware The F/W version. Information LCD inner (backlight unit) temperature Cabinet Temp. monitoring. The Extension Thermal Kit (ETK203) is for ETK Temp.
-
Page 27: Specifications
Specifications MODEL CODE DS861LR4 LCD Panel Size 85.6 inches Native Resolution 3840 x 2160 Brightness 3500 cd/m² (Typ.) Contrast Ratio 3,000:1 PANEL Response Time 8 ms (Typ.) Viewing Angle 178°/ 178° Life Time 100,000 hrs (Typ.) Panel Surface AG Haze 3%, 2H... -
Page 28: Input Mode
Input Mode Active Resolution Refresh Rate H Pixels V Lines 60 Hz 60 Hz 60 Hz 60 Hz 1024 60 Hz 1280 60 Hz 1280 60 Hz 1280 60 Hz 1280 1024 60 Hz 1366 60 Hz 1400 1050 60 Hz 1440 60 Hz 1600... -
Page 29: Pin Assignments
Pin Assignments RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7... -
Page 30: Troubleshooting
Cannot control the display Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. - Page 31 About DSM365 DSM365 is an internal operating system as Android, which can install the applications via USB flash drive storage, SD card or Internet. How to Switch to DSM365 Press the MENU button on either the rear panel control or remote control to show the OSD. ...
- Page 32 About SDM Install SDM on the display 1. Loosen screws and remove the SDM cover from the display. 2. Insert the SDM module into the display and fasten screws. Make sure the SDM properly installed to avoid causing the devise destruction.
- Page 33 Switch to SDM Press the MENU button on either the rear panel control or remote control to show the OSD. Use the navigation arrows to select and adjust the Input Source. [ Input Source Main SDM ]...
- Page 34 Copyright © DynaScan Technology, Inc. All Rights Reserved.
