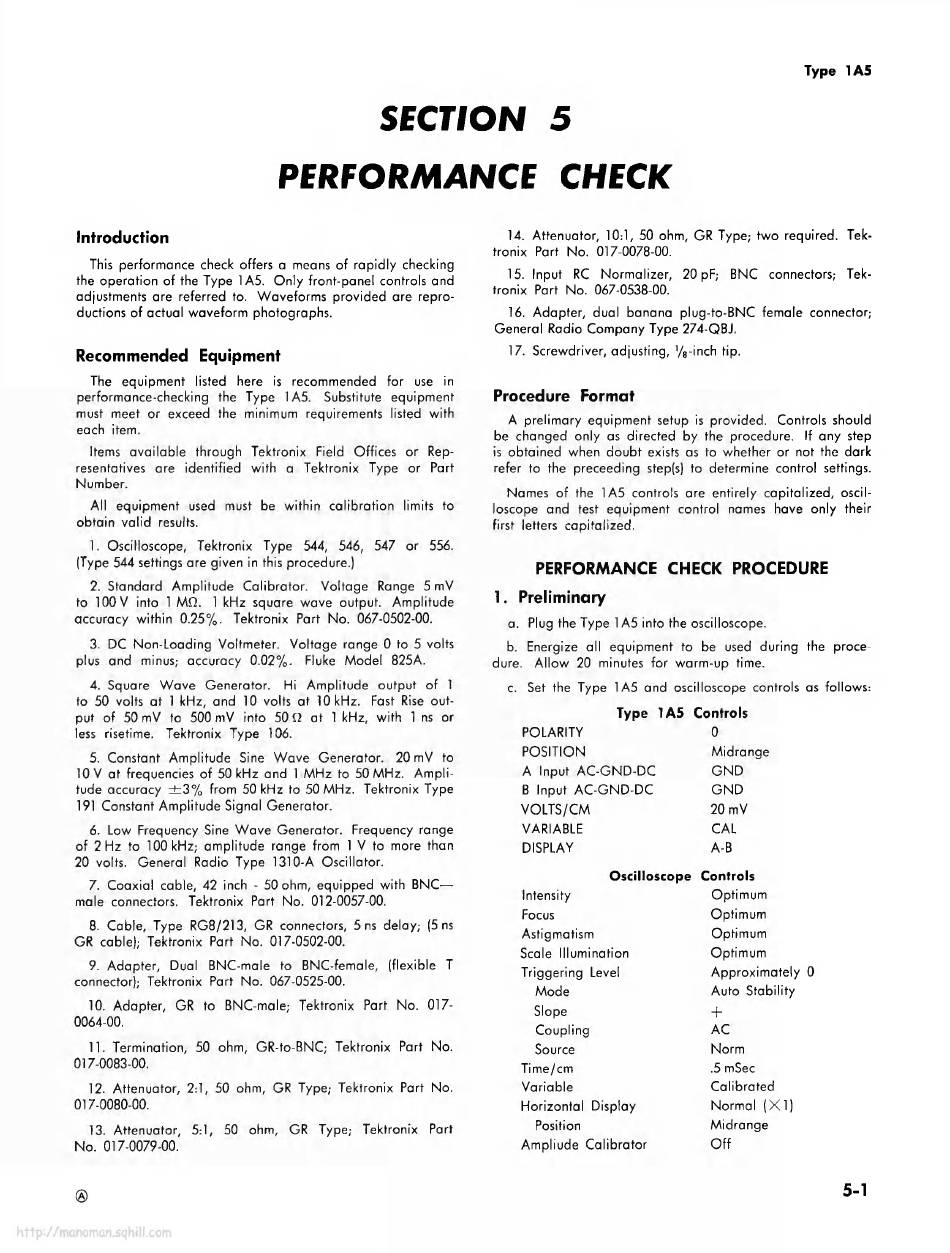

Tektronix 1A5 Instruction Manual page 53

Introduction
This performance check offers a means of rapidly checking
the operation of the Type 1A5. Only front-panel controls and
adjustments are referred to. Waveforms provided are repro ­
ductions of actual waveform photographs.
Recommended Equipment
The equipment listed here is recommended for use in
performance-checking the Type 1A5.
must meet or exceed the minimum requirements listed with
each item.
Items available through Tektronix Field Offices or Rep ­
resentatives are identified with a Tektronix Type or Part
Number.
All equipment used must be within calibration limits to
obtain valid results.
1. Oscilloscope, Tektronix Type 544, 546, 547 or 556.
(Type 544 settings are given in this procedure.)
2. Standard Amplitude Calibrator. Voltage Range 5 mV
to 100 V into 1 MΩ. 1 kHz square wave output. Amplitude
accuracy within 0.25%. Tektronix Part No. 067-0502-00.
3. DC Non-Loading Voltmeter. Voltage range
plus and minus; accuracy 0.02%.
4. Square Wave Generator.
to 50 volts at 1 kHz, and 10 volts at 10 kHz. Fast Rise out ­
put of 50 mV to 500 mV into 50 Ω at 1 kHz, with 1 ns or
less risetime. Tektronix Type 106.
5. Constant Amplitude Sine Wave Generator. 20 mV to
10 V at frequencies of 50 kHz and 1 MHz to 50 MHz. Ampli ­
tude accuracy ±3% from 50 kHz to 50 MHz. Tektronix Type
191 Constant Amplitude Signal Generator.
6. Low Frequency Sine Wave Generator. Frequency range
of 2 Hz to 100 kHz; amplitude range from 1 V to more
20 volts. General Radio Type 1310-A Oscillator.
7. Coaxial cable, 42 inch - 50 ohm, equipped with
male connectors. Tektronix Part No. 012-0057-00.
8. Cable, Type RG8/213, GR connectors, 5 ns delay; (5 ns
GR cable); Tektronix Part No. 017-0502-00.
9. Adapter, Dual BNC-male to BNC-female, (flexible
connector); Tektronix Part No. 067-0525-00.
10. Adapter, GR to BNC-male; Tektronix Part
0064-00.
11. Termination, 50 ohm, GR-to-BNC; Tektronix
017-0083-00.
12. Attenuator, 2:1, 50 ohm, GR Type; Tektronix Part No.
017-0080-00.
13. Attenuator, 5:1, 50 ohm, GR Type; Tektronix Part
No. 017-0079-00.
SECTION 5
PERFORMANCE CHECK
Substitute equipment
0 to 5 volts
Fluke Model 825A.
Hi Amplitude output of 1
than
BNC —
T
No. 017-
Part No.
14. Attenuator, 10:1, 50 ohm, GR Type; two required. Tek ­
tronix Part No. 017-0078-00.
15. Input RC Normalizer, 20
tronix Part No. 067-0538-00.
16. Adapter, dual banana plug-to-BNC female connector;
General Radio Company Type 274-QBJ.
17. Screwdriver, adjusting, ⅛ -inch tip.
Procedure Format
A prelim in ary equipment setup is provided.
be changed only as directed by the procedure.
is obtained when doubt exists as to whether
refer to the preceeding step(s) to determine
Names of the 1A5 controls are entirely
loscope and test equipment control names
first letters capitalized.
PERFORMANCE CHECK
1. Preliminary
a. Plug the Type 1 A5 into the oscilloscope.
b. Energize all equipment to be used
dure. Allow 20 minutes for warm-up time.
c. Set the Type 1A5 and oscilloscope controls
Type 1A5 Controls
POLARITY
POSITION
A Input AC-GND-DC
В Input AC-GND-DC
VOLTS/CM
VARIABLE
DISPLAY
Oscilloscope Controls
Intensity
Focus
Astigmatism
Scale Illumination
Triggering Level
Mode
Slope
Coupling
Source
Time/cm
Variable
Horizontal Display
Position
Ampliude Calibrator
Type 1A5
pF; BNC connectors; Tek ­
Controls should
If any step
or not the dark
control settings.
capitalized, oscil ­
have only their
PROCEDURE
during the proce ­
as follows:
0
Midrange
GND
GND
20 mV
CAL
A-B
Optimum
Optimum
Optimum
Optimum
Approximately
Auto Stability
+
AC
Norm
. 5 mSec
Calibrated
Normal ( ×1 )
Midrange
Off
5-1
