DIAGRAMS
SE^TI^IN 9

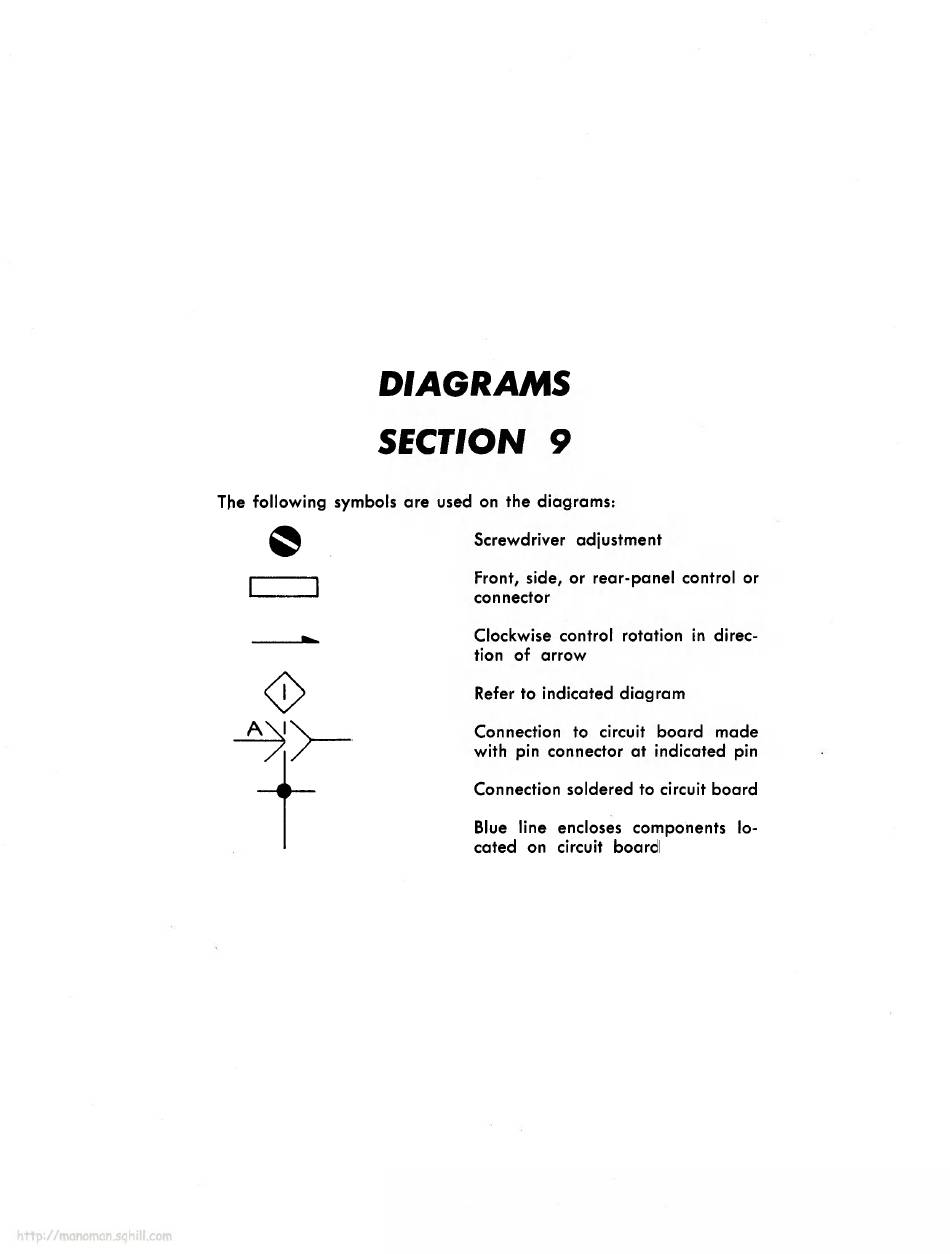

The following symbols are used on the diagrams:
Screwdriver adjustment
Front, side, or rear-panel control or
connector
Clockwise control rotation in direc
tion of arrow
Refer to indicated diagram
Connection to circuit board made
with pin connector at indicated pin
Connection soldered to circuit board
Blue line encloses components lo
cated on circuit board
