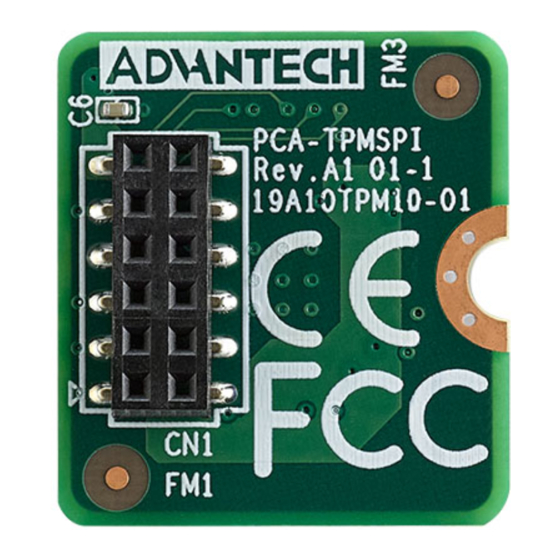

PCA-TPMSPI
Trusted Platform Module TCG 2.0
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
1. PCA-TPMSPI 2.0 trusted platform module x 1
2. 2-year quality warranty card x 1
3. Startup manual x 1
4. Screw x 1
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the PCA-TPMSPI Series.
Part No. 20410TPM00
Printed in China
Specifications
Standard Functions
• Trusted platform module is compliant with TCG 2.0 speci-
fication and TSS 2.0 via SPI connector on CPU card.
• Adopts Infineon SLB9665TT2.0 solution with common
criteria security certification EAL level 4+.
• Hardware-based data protection solution for high security
businesses such as banks, governments, insurance and
confidential facilities in factories or power plants. Once the
module disconnects with the SBC, the encrypted data can
not be decrypted, even when a password is provided.
• System support list
SBC
PCE-5133
PCE-5033
AIMB
AIMB-788
AIMB-708
Build-in AP support OS List (TPM.msc)
Windows 10 Enterprise (64-bit)
Mechanical
• Dimensions: 20mm x 22mm
• Power supply type: 3.3V
• Power requirements: 3.3V @ 45mA
• Operating temperature: 0 ~ 60° C
• Operating humidity: 40° C @ 85% RH, Non-Condensing
• Storage temperature: -40 ~ 85° C
• Storage humidity: 60° C @ 95% RH, Non-Condensing
• Weight: 0.12 kg
1st Edition
April
2022
PCA-TPMSPI Startup Manual 1
Advertisement
Table of Contents
Related Manuals for Advantech PCA-TPMSPI
Summary of Contents for Advantech PCA-TPMSPI
- Page 1 Before you begin installing your card, please make sure that the following items have been shipped: • Trusted platform module is compliant with TCG 2.0 speci- 1. PCA-TPMSPI 2.0 trusted platform module x 1 fication and TSS 2.0 via SPI connector on CPU card. 2. 2-year quality warranty card x 1 • Adopts Infineon SLB9665TT2.0 solution with common...
- Page 2 Jumpers and connectors 1). Connect the PCA-TPMSPI module to the SPI box header of your SBC/IMB. Connectors Label Function SPI1 SPI connector Screw hole LPC 1 Signal Signal TPM_PRSNT# Reserved 2). Fix the module onto the SBC/IMB with the includ- SPC_CS SPI_MISO ed screws and screw hole. SPI_CLK IRQ-TPM 3.3V SPI_MOSI PLTRST# 2 PCA-TPMSPI Startup Manual...
- Page 3 Installation Guide (Cont.) Board Layout Enter BIOS setup and select the “Advanced” tab. Figure 1: Top view Enable “Security Device Support”. Figure 2: Bottom view Select TPM 2.0 in Device Select. 2. For software installation, please refer to the appendix. PCA-TPMSPI Startup Manual 3...
- Page 4 Appendix TPM setup under Windows OS Enter the Device Manager to check if the TPM is working or not. 4 PCA-TPMSPI Startup Manual...
- Page 5 Appendix (Cont.) Enter “tpm.msc” in command line mode, and then you can manage TPM configuration. PCA-TPMSPI Startup Manual 5...
