• Access LED shows hard drive activity
• Its small size (4.2" x 1" x 2.2") allows you to take it anywhere
• World-compatible AC adapter accepts 100-240VAC so you can trot the globe.
• An optional Optical Drive Adapter allows the ComboDock to be used with CD or DVD drives. It
is available on our web store (www.wiebetech.com)
Installation Instructions
1.
Check the accessories with your ComboDock. Please contact WiebeTech if any items are missing or
damaged. The box should contain:
ComboDock
AC adapter & power cord
FireWire 800 to 400 cable
Metal bottom plate
Hard drive screws
Rubber bumpers
Manual and Warranty information
2.
Attach bottom plate to your 3.5" hard drive. This step is optional but recommended.
The purpose of the bottom plate is to provide protection to your drive electronics. Attach the
bottom plate to your drive using the four screws supplied. Attach a rubber bumper to each
corner. Extra bottom plates are available from WiebeTech.
C o m b o D o c k U s e r ' s M a n u a l

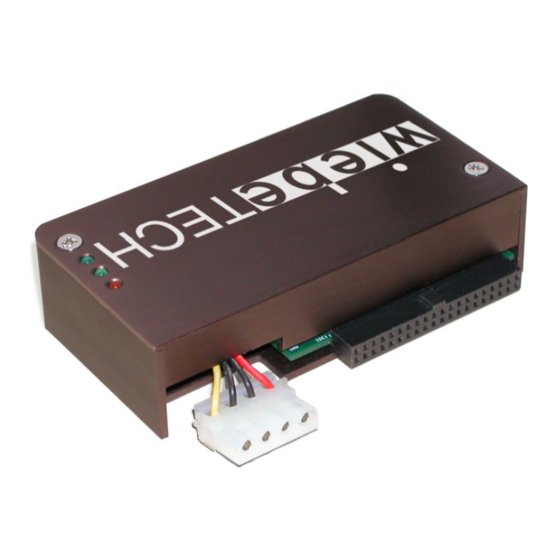

ComboDock™
USER'S MANUAL
Revised October 23, 2006
Features
• Dual daisy-chainable FireWire 800 ports (400
compatible) work with any FireWire host at
blazing fast speeds!
• USB2 port allows attachment to all hosts,
including PCs, Macs, and Linux
• Self-aligning connector provides easy
attachment of IDE/ATA 3.5" drives
• Power LED verifies connection to AC power
• Power status LED verifies that unit is switched
on (or off).
• Power switch helps prevent FireWire port
damage during plug insertion.
(on CD)
1
1
1
1
4
6
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WiebeTech CDK
Summary of Contents for WiebeTech CDK
-
Page 1: Installation Instructions
• An optional Optical Drive Adapter allows the ComboDock to be used with CD or DVD drives. It is available on our web store (www.wiebetech.com) Installation Instructions Check the accessories with your ComboDock. Please contact WiebeTech if any items are missing or damaged. The box should contain: ComboDock AC adapter &... - Page 2 WiebeTech LLC Take a moment to familiarize yourself with the parts of your new ComboDock. This will aid you in the remaining steps. Drive-Side Connectors: Four-pin power connector (Female) IDE connector (Female) Configure the jumpers on your hard drive. The drive must be set to the Master setting. Consult the instructions for your drive (some drives display configuration information on the drive’s label).
-
Page 3: Usage With Macintosh Computers
The ComboDock is fully plug-and-play under Mac OS 9.1, 9.2 and OS X. No drivers are needed. FireWire 800 ports are FireWire 400 host compatible (a FireWire 800-400 cable or adapter such as WiebeTech’s Cable-11 is necessary for use with FireWire 400 ports). The USB2 port is USB 1.1 compatible. -
Page 4: Technical Specifications
WiebeTech offers free phone support for 90 days after purchase. Email support is available at support@wiebetech.com. ComboDock is a trademark of WiebeTech LLC. Other marks are the property of their respective owners. © 2005 WiebeTech LLC. All rights reserved. FCC Compliance Statement. “This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”...
