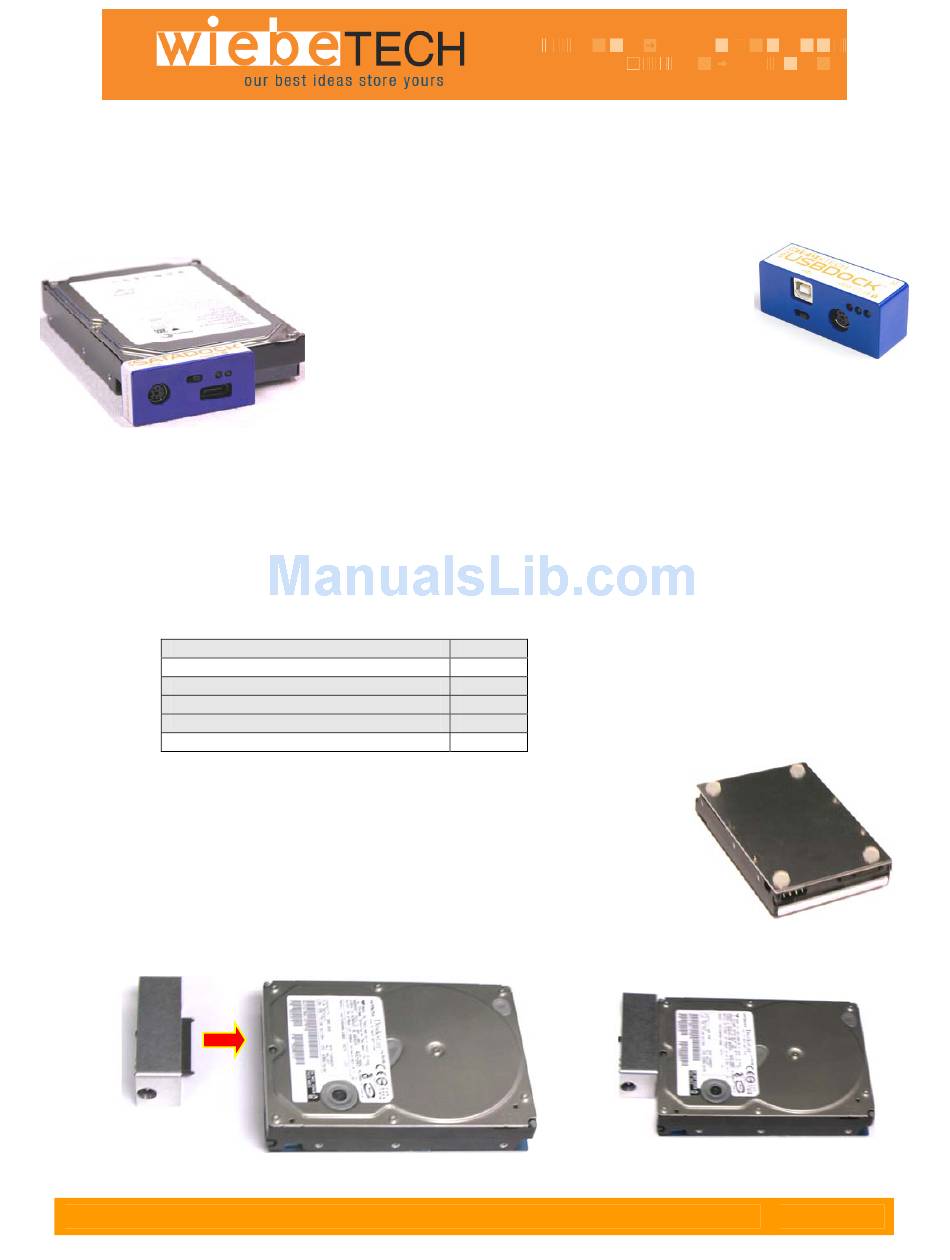

Mini SATADock™/ Mini USBDock™

Installation Instructions

1.
Check the accessories with your Mini dock. Please contact WiebeTech if any items are missing or damaged.
The box should contain:
Mini dock
AC adapter & power cord
USB cable or SATA cable
Metal drive plate
Packet of screws & rubber bumpers
Manual and Warranty information
2.
(Optional) Attach the bottom plate to your 3.5" SATA drive. The purpose of the
bottom plate is to provide protection to your drive electronics and help dissipate heat.
Attach the bottom plate to your drive using four screws. Attach a rubber bumper to
each corner. The screws and bumpers are included with the plate. Additional plates
are available from WiebeTech (product code: BPLATE).
3.
Plug the Mini dock into the SATA interface on the drive.
m i n i S A T A D o c k & m i n i U S B D o c k U s e r ' s M a n u a l
USER'S MANUAL
Revised September 26, 2006

Features

• Connects any SATA drive through USB 2.0 or SATA.
• Plug & playable, working with almost any Mac or PC
without requiring drivers.
• Power switch allows drives to be powered off when not in use.
• LEDs show the status of both power and drive access.
• Anodized aluminum case for rugged durability.
• Small size for easy portability. Carry it anywhere!
1
1
1
1
1
(on CD)
- 1 -
