WiebeTech ADAv4-18-TOSH Quick Start Manual

Thank you for purchasing a WiebeTech Combo Adapter. Follow these easy steps to quickly access your
drive. (For more details, see the full user's manual on the CD.)
1.
Select the Combo Adapter you want to use with a ComboDock, Forensic ComboDock, or FastBloc2 Field
Edition. Attach the dock's 4-wire power connector to the Adapter, and then connect the dock's IDE ribbon
cable to the Adapter's IDE pins.
2.
Connect the drive to the Adapter.
3.
Plug the AC adapter into the dock.
4.
Connect the FireWire or USB2 cable to the computer, and then to the dock.
5.
Turn on the dock's power switch. The drive in the Adapter will spin up and you will be able to access it.
1.8" Toshiba
Drive (iPod)
Adapter
ADAv4-18-TOSH
Multi-Card
Adapter
ADAv4-MCB
(
PC Card drives,
MMC/SD, CompactFlash,
Sony Memory Sticks and
MicroDrives)
Disk on Module
Adapter
ADAv4-DOM
Q u i c k S t a r t G u i d e f o r W i e b e T e c h C o m b o A d a p t e r s
V4 Combo Adapters™

Quick Start Guide

SATA
Drive
Adapter
ADAv4-SATA
(Any 2.5" or 3.5"
SATA Drive)
2.5" Notebook
Drive Adapter
ADAv4-25
(2.5" IDE/PATA drives)
1.8" Toshiba ZIF
Drive Adapter
ADAv4-18-TOSH-ZIF
www.wiebetech.com
Revised 05-19-2008
1.8" Hitachi ZIF
Drive Adapter
ADAv4-18-HIT-ZIF

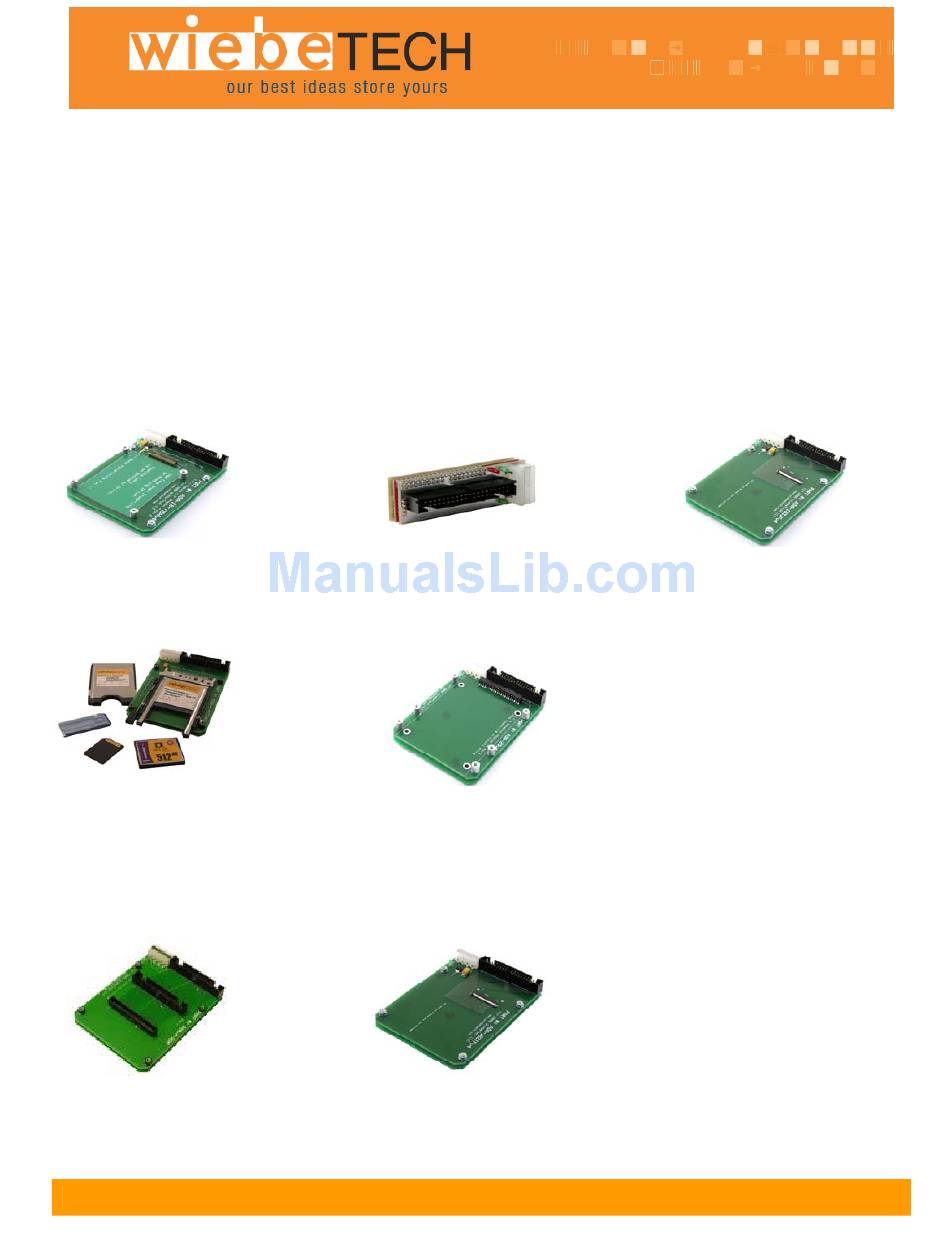

Note: The pictures
show all adapters
currently offered by
WiebeTech. Your
particular kit may
include only some of
these adapters.
