Forensic Device User Advisory
We recommend that you perform a final check on your RedPort card.
Prior to first use, please verify that the write-blocking function of this product is working properly. This is
easily done: attach a SCSI storage device known to be in working order. It should contain a drive (or
drives) that you are willing to overwrite. Verify that the volume mounts properly on your computer.
Transfer files to the SCSI device. The files will appear to transfer to the drive. When the process is
complete, eject and then remount the volume. The files that you wrote to the SCSI device should not
appear after the device is remounted. If they do appear, there is a problem with your RedPort card, and
you should contact our support department for further instructions.
WiebeTech support may be reached at:
(866) 744-8722 (toll free)
(316) 744-8722 (international)
(316) 744-1398 (fax)
support@wiebetech.com
Table of Contents
Hardware Installation
Cables and Termination
Driver & Firmware Installation
Glossary
Technical Specifications
Standards and Compliances
Contact Information

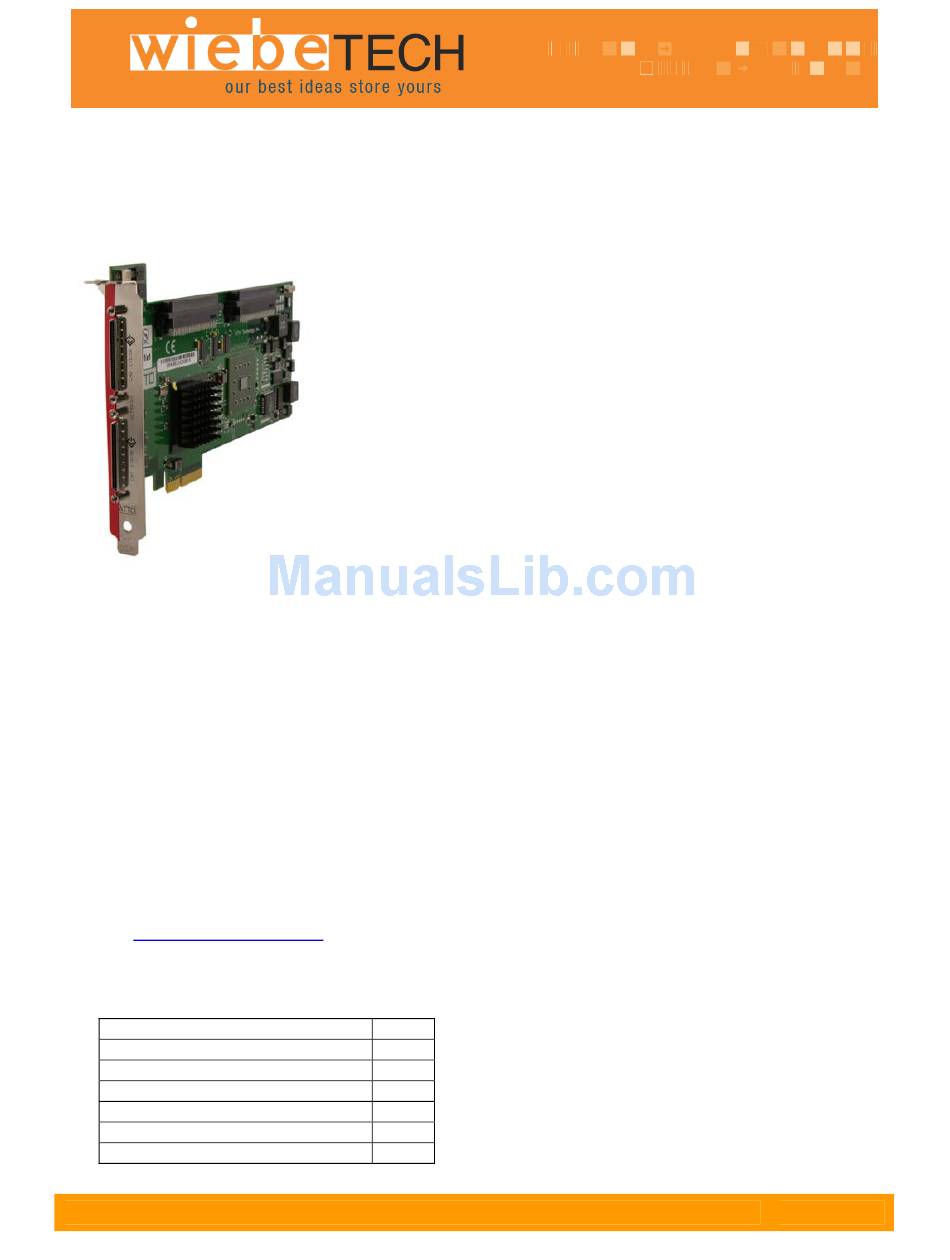

R e d P o r t S C S I U s e r ' s M a n u a l
Red Port™ SCSI
USER'S MANUAL
Revised December 14, 2006
Features
• Automatically write-blocks any attached SCSI device for safe, read-
only data retrieval
• Fast Ultra-320 SCSI interface (with support for legacy SCSI
products
• Up to 320 MB/s per channel data transfer rates
• Dual independent SCSI channels
• x4 PCI Express host connectivity
• Exclusive Advanced Data Streaming (ADS™) Technology
• Driver support for Windows 2000, XP, Server 2003, Red Hat Linux,
and SuSE Linux
• Supports up to 30 SCSI bus IDs and 12 meter cable lengths
• RoHS compliant
(email)
2
3
5
7
9
10
11
- 1 -
Advertisement
Table of Contents
Related Manuals for WiebeTech RP-PCIE-SCSI
Summary of Contents for WiebeTech RP-PCIE-SCSI
- Page 1 If they do appear, there is a problem with your RedPort card, and you should contact our support department for further instructions. WiebeTech support may be reached at: (866) 744-8722 (toll free) (316) 744-8722 (international) (316) 744-1398 (fax) support@wiebetech.com...
-
Page 2: Hardware Installation
WiebeTech LLC Hardware Installation WARNING: RedPort host adapters contain c that are sensitive to electrostatic discharge (ES can cause damage to the host adapter. Please follow standard methods to avoid ESD. Install the RedPort write-blocking host adapter and attach your SCSI devices to it using the instructions below. -
Page 3: Cables And Termination
WiebeTech LLC Close the computer case and power it up. RedPort host adapters come preconfigured to operate properly in a variety of common system setups. However, some systems may benefit by tuning the adapter for optimal performance. Refer to the ATTO ExpressPCI Utilities Installation and Operation manual for more information on changing host adapter settings. - Page 4 WiebeTech LLC Determine whether you are using a single channel or dual channel host adapter model. One external connector indicates a single channel host adapter; two external connectors indicate a dual channel host adapter. Determine if SCSI devices are going to be installed internally or externally.
-
Page 5: Installing Drivers
In the ExpressPCI Host Adapters menu item, find your ExpressPCI adapter and click on Download. WiebeTech’s RedPort™ SCSI was designed in partnership with ATTO Technology, and is based on ATTO’s ExpressPCI UL5D hardware. This is the model you should choose from the menu. - Page 6 WiebeTech LLC Use the ATTO Configuration Tool Download the most recent version of the Configuration Tool from the ATTO web site, www.attotech.com. Refer to the ATTO Utilities Installation and Operation Manual for additional information on downloading and using the Configuration Tool.
-
Page 7: Glossary
WiebeTech LLC Glossary Some terms used in the storage industry are defined below. More information is available through the ATTO Technology website (www.attotech.com) and the SCSI Trade Association (www.scsita.org). Term Definition ANSI American National Standards Institute AIP: although most Ultra320 traffic is sent synchronously and protected by Asynchronous CRC, some information is still sent asynchronously. - Page 8 WiebeTech LLC Although SCSI transfer speeds have changed dramatically over the past several generations, cable specifications have remained constant. Higher speed pre-compensation and frequency signals have a greater potential for reflection and distortion over distance. Pre-compensation techniques slightly modify the SCSI signal to reduce the chance of these types of problems.
-
Page 9: Technical Specifications
• 2-year limited warranty. See warranty statement for details and limitations. Warranty WiebeTech offers free phone support for 90 days after purchase (1-866-744-8722). After 90 days, email support is available at support@wiebetech.com. R e d P o r t S C S I U s e r ’ s M a n u a l •... -
Page 10: Standards And Compliances
WiebeTech LLC Standards and compliances The equipment described in this manual generates and uses radio frequency energy. The Technical Specification sheet for a particular ATTO ExpressPCI host bus adapter list certifications for that model. FCC standards: radio and television interference This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 11: Contact Information
WiebeTech products, check our website or contact sales@wiebetech.com. We appreciate being able to serve you! RedPort is a trademark of WiebeTech LLC. Other marks are the property of their respective owners. © 2006 WiebeTech LLC. All rights reserved.
