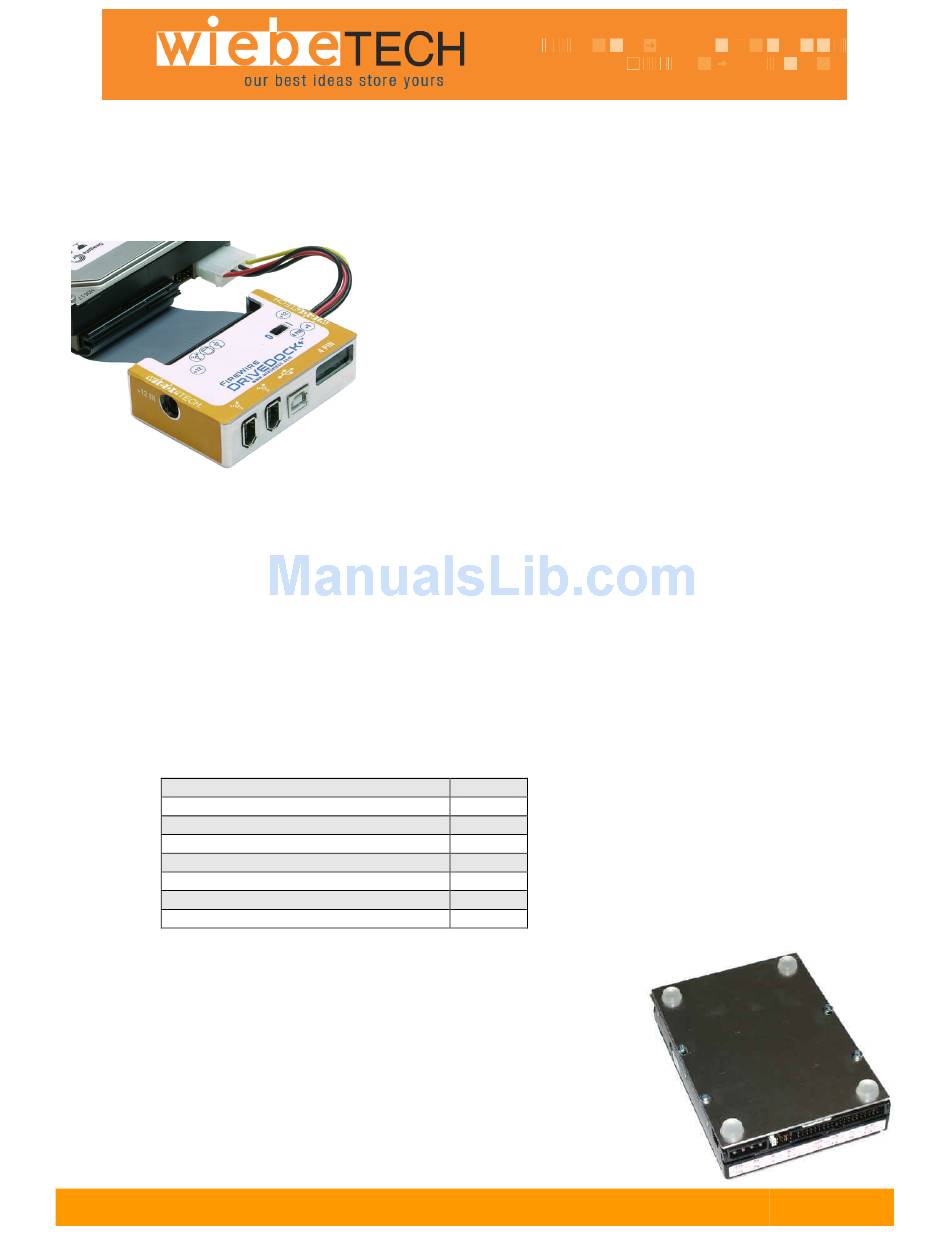

FireWire DriveDock+™
• Power switch helps prevent FireWire port damage during plug insertion
• Host-detection LEDs indicate valid connection to either FireWire or USB host
• Small size allows you to take it anywhere
• Aluminum case is briefcase tough, with excellent heat dissipation
• World-compatible AC adapter accepts 100-240VAC so you can trot the globe

Installation Instructions

1.
Check the accessories with your DriveDock. Please contact WiebeTech if any items are missing or damaged.
The box should contain:
DriveDock
AC adapter & power cord
FireWire 400 cable
USB cable
Metal bottom plate
Hard drive screws
Rubber bumpers
Manual and Warranty information
2.
Attach bottom plate to your 3.5" hard drive. This step is optional but
recommended. The purpose of the bottom plate is to provide protection to your
drive electronics and aid heat dissipation. Attach the bottom plate to your drive
using the four screws supplied. Attach a rubber bumper to each corner. Extra
bottom plates are available from WiebeTech.
F i r e W i r e D r i v e D o c k + U s e r M a n u a l
USER'S MANUAL
Revised May 2, 2007

Features

• Dual, daisy-chainable FireWire 400 ports
• USB 2.0 port
• Two options for power input: Use the included AC
adapter, or use a Molex connector from a computer's
power supply
• LEDs show when unit is receiving power as well as
power output status
• Power status LED verifies that unit is switched on (or off)
1
1
1
1
1
4
6
(on CD)
- 1 -
