- Page 1 VSC3008 INSTRUCTIONS VIDEOSCOPE...
-
Page 2: Table Of Contents
Technical data). Info Information marked with this symbol helps you to carry out your tasks quickly and safely. Follow the manual Information marked with this symbol indicates that the instructions must be observed. videoscope VSC3008... - Page 3 To use the device for its intended use, only use accessories and Observe the personnel qualifications! spare parts which have been approved by Trotec. Caution Any use other than the intended use is regarded as misuse.
-
Page 4: Information About The Device

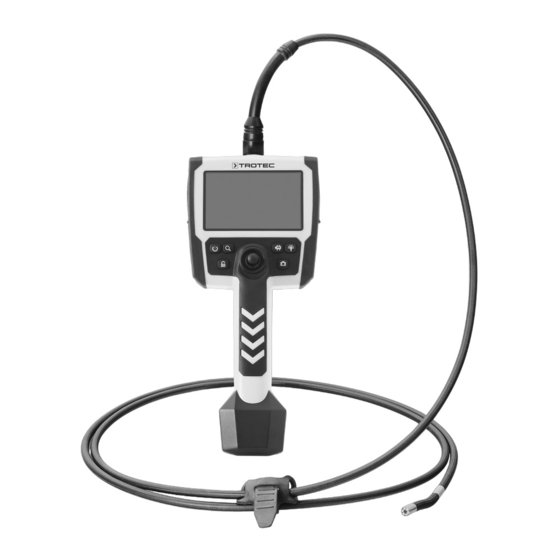

USB interface. Device depiction Designation Display Probe cable Fully flexible camera head Battery pack with charger/power adapter connector Operating elements Slot for SD card Audio/video signal output Port for a mini USB cable Connector for the power adapter videoscope VSC3008... - Page 5 Controlling the camera orientation and the menu Lock button Locking or releasing the camera head in the current position Power button Switching the device on and off, calling up the main menu, leaving a menu Zoom button Zooming in (1x, 2x, 3x) videoscope VSC3008...
- Page 6 Ambient conditions Temperature -10 °C to +50 °C Humidity < 90 % RH Type of protection IP54 (housing) Physical characteristics Construction ABS housing with integrated bumpers Dimensions 410 x 154 x 80 mm Weight 960 g (incl. batteries) videoscope VSC3008...
-
Page 7: Transport And Storage
Scope of delivery Start-up • 1 x Videoscope VSC3008 Charging the battery • 1 x Battery pack 5 V DC Before using the device for the first time, it may be necessary to • 1 x Transport case charge the battery. -
Page 8: Operation
Bowden cables in the probe cable! Taking a picture 1. Press the Photo button (12). ð The picture is taken and saved. videoscope VSC3008... - Page 9 9. Move the enlarged section to the desired position in the image by moving the joystick up/down or to the right/left. 10. Press the joystick to cut out the selected part of the enlarged image. 11. To exit the zoom mode briefly press the Power button (15). videoscope VSC3008...
-
Page 10: Software
Activating black and white mode 1. Use the joystick (13) to select the B&W option. 2. Press the joystick to open the B&W menu. 3. Select the desired setting using the joystick. 4. Press the joystick to confirm your selection. videoscope VSC3008... - Page 11 1. Use the joystick (13) to select the Ruler Line option. 2. Press the joystick to open the Ruler Line menu. 3. Select the desired option using the joystick. 4. Press the joystick to confirm your selection. ð The ruler line is shown or hidden. videoscope VSC3008...
- Page 12 4. Press the joystick to confirm your selection. 4. Press the joystick to confirm your selection. 5. If necessary, make the required settings at the monitor. 6. Connect the device to the monitor via the supplied AV cable and the AV output (7). videoscope VSC3008...
- Page 13 2. Press the joystick to open the Format menu. ð The confirmation prompt is displayed. 3. Select the desired setting using the joystick. ð Select "OK" to format the SD card. ð Select "Cancel" to cancel the operation. 4. Press the joystick to confirm your selection. videoscope VSC3008...
-
Page 14: Errors And Faults
The device still does not operate correctly after these checks: • Contact the Trotec customer service. In the European Union, batteries and accumulators must Li-Ion not be treated as domestic waste, but must be disposed of... - Page 15 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
