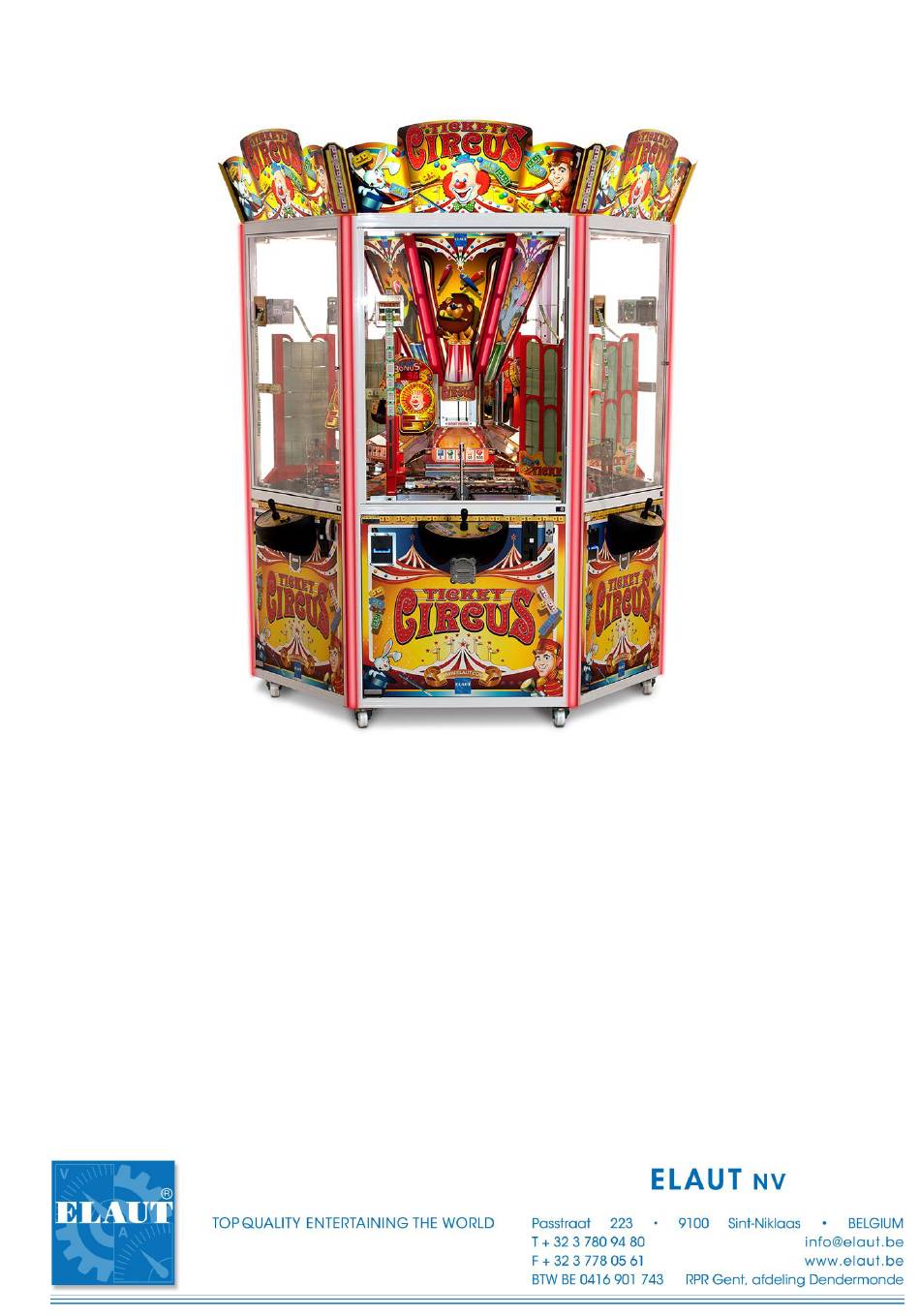

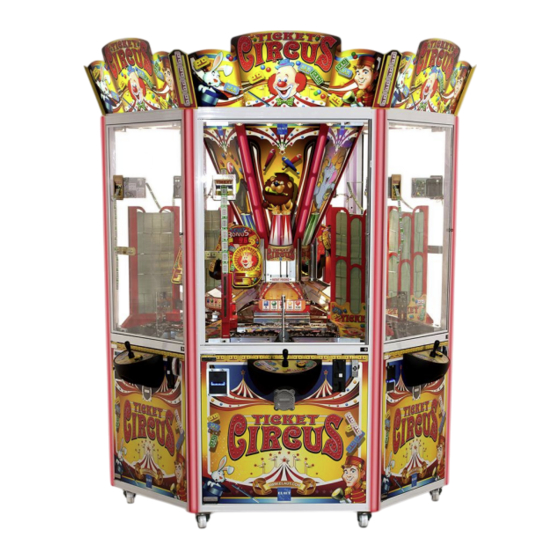

- Page 1 Type : Pusher Tags and Tickets Models : 9992.1206 Ticket Circus 6pl 9992.1203 Ticket Circus 3pl operator (user) manual service manual English 30 January 2020...
-
Page 2: Table Of Contents
Table of Content Introduction ....................... 4 The course of the game ................... 4 Unpacking and installing the machine ..............5 How to install the top signs: ....................5 Your bonus game explained ..................6 Ticket Circus with variable bonus ..................6 How to play the VARIABLE bonus? .................... - Page 3 The different parts and functions of the machine ..........30 Instructions for maintenance................31 How to fill the ticket-dispenser ...................31 Red button on top of the bonus sign ..................31 ERROR codes ........................32 General ..........................32 Playfield ..........................32 Elevator ..........................33 The EMOS controller ......................34 Unit (PN 9236.0350) ........................
-
Page 4: Introduction
Introduction Congratulations with the purchase of your new Ticket Circus equipped with the new “EMOS” Technology. We advise you to read this manual completely, so you learn the different possibilities and uses of this new system. Different aspects can be set by means of a tablet (included) or mobile phones (equipped with the software of EMOS) on Android operating system. -
Page 5: Unpacking And Installing The Machine
Unpacking and installing the machine Remove the plastic from around the machine and place the machine on the desired location. Make sure there are no obstacles around the machine and that it is installed on an even surface. Open all the cabinet doors and glass doors with the correct key. On top lift the antenna of the router up to receive a good signal. -
Page 6: Your Bonus Game Explained
Your bonus game explained Ticket Circus with variable bonus For every tag that drops, the led will move forward this amount of steps (for example 50 steps when a 50 tag drops) + the player will receive this value in tickets. You win the bonus when the led circle stops exactly on the STOP position. -
Page 7: Ticket Circus With Fixed Bonus
Ticket Circus with fixed bonus Every time the player presses the fire button, the led on the bonus circle will move 1 step forward. He needs to shoot 60 tokens to play for the bonus. When playing the bonus game, the led will start spinning very rapidly and the player must try to stop the spinning led exactly on the STOP position, by pushing the red button. - Page 8 1. Player starts with 65 2. Player shoots 35 tokens on 3. Player shoots another 20 tokens. The first LED is lit. the playfield. 35 LEDs will be tokens on the playfield. 20 added (lit) to the bonus circle. LEDs will be added (lit) to the bonus circle.
-
Page 9: General Content Of The Machine
General content of the machine Number of tokens The machine is delivered with following items ELAUT Description Quantity Part Number For a 6 pl 9090.1001 Chip value 5 square blue 216 pcs 9090.1002 Chip value 10 hexagon green 114 pcs 9090.1006... -
Page 10: Number Of Tags
Number of tags The number of prize tags of each color you need to put on your playfields, is determined by the configuration of your playfield, see “Playfield settings” (page General overview: Square Hexagon Flower Flower Star Heart Star Points 1000 Attention! Unknown tags or tags which don’t correspond with the setting will give an error... -
Page 11: Control The Payout In Variable Bonus
Control the Payout in variable bonus After this selection the payout percentage will change automatically. This is calculated in combination with the following 5 settings: Ticket Value Token Price Bonus Game Settings Mercy Tickets Playfield Configuration After changing these 5 settings the machine will give you a theoretical indication of the “Payout Percentage”, shown on top in “Payout settings”... -
Page 12: Starting Up The Emos System
Starting up the EMOS system When Ticket Circus is fully booted after powering up, you can start the “Emos Client“ program on your tablet by pressing the icon. Select your machine to make new settings or change the payout. If no machine is in the list you can follow the instructions in your “ Emos Client “ program to add a new machine. -
Page 13: Settings
Settings There are 6 available settings. Select to change setting Keep in mind that changing the settings on the tablet will be automatically stored at the machine. !!!!!!! -
Page 14: Payout Settings For Variable Bonus
Payout settings for VARIABLE bonus Note: always select the icon to be able to edit the settings! All examples are in euro (€) Set your ticket value We refer to Page to explain the influence of the ticket value Total payout percentage = 57% ( = 114 tickets / 1 currency ) Wherefrom : (... -
Page 15: Bonus Game Settings
Bonus game settings Bonus start value = 450 (settable between 50 and 800) Bonus step value = 60 ( settable between 10 and 100 ). Slide the dots left or right to change the value Our example: With the above settings the “Bonus” can be won when reached “690” = 4 Turns (450 + 60 + 60 + 60 + 60 ) on the on the bonus wheel: the circle now has 5 LED lit up. -
Page 16: Payout Settings For Fixed Bonus
Payout settings for FIXED bonus Note: always select the icon to be able to edit the settings! All examples are in euro (€) Set your ticket value We refer to Page to explain the influence of the ticket Value Total payout percentage = 37% ( = 74 tickets / 1 currency ) Wherefrom : (... -
Page 17: Bonus Game Settings
Bonus game settings Bonus value: 1500 (example) (settable between 100 and 9000) Adjust with + or - Bonus chances: select to open pull down menu : Select 1 of the 7 options (see how to play the bonus) Consolation prize: select to open pull down menu. -
Page 18: Money Settings
Money settings Note: always select the icon to be able to edit the settings! All examples are in euro (€) Game price : Minimum amount needed to start a new game = Start budget. Coin Value: Set these settings according to the connected coin acceptor. -
Page 19: Sound Settings
Sound settings Note: always select the icon to be able to edit the settings! Slide the blue dot to the left to lower or to the right to increase the volume Main volume: Increase or decrease the main volume. Effects: Increase or decrease the volume of the effects. -
Page 20: Playfields
Playfields In case of a Ticket Circus 3- player, only 3 playfields will be visible. There are 8 available settings Note!! This example is for playfield 1. Repeat this for all the other playfields! -
Page 21: General
General Pressing a name in the navigation bar, brings you back to the selected menu Status : MUST be on line !! Software Version: x.x.x.x Setup First activate “edit” from controller playfield 1= xxxx Use this function to connect a new playfield controller. -
Page 22: Control Panel
Control Panel Status : must be Online. Software Version : ITBIO_xxxx Controls : Real time action Here you can test the buttons: Changes into when you push the fire button or joystick left and right If this is the case then you know that the switches and cables and the Basic I/O PCB are all working. Bonus circle Only as information Status... -
Page 23: Hopper
Hopper Select “ edit “ to test the hopper. Select again to close. Status : Must be on line Software version : ITXGX_xxxx See real time actions while moving. Move Left : Select and the escalator hopper will move to the left. -
Page 24: Credit Display
Credit display Only as information. Status : must be Online. Software Version : ITBNS_xxxx Rfid Only as information. Status : must be Online. Software Version : ITTGR_xxxx... -
Page 25: Machine
Machine There are 2 available options: Lift Software version of the lift x.x.x.x Status : must be ONLINE. Software Version XY - Pcb = ITXGX_xxxx Current position : xxx gives you the actual position of the lift Press “Enter Testmode” to test the lift! - Page 26 In “Testmode”: Top position : 466 Middle position : 40-41 Down position : 22 With Motor 2420.0011 ! dd42 Leave Test mode : Exit Testmode Press “Leave Testmode”: the lift goes down and comes up to (466) Lift : Real time actions How to test? Press “Go down”: the lift goes to middle position (to 40-41) Press “Load items”: the lift goes to down position (22)
-
Page 27: Rgb
Select “edit” to be able to change settings and press again to close. Door Status : must be Online. Doors Software Version ITRGB_xxxx Corner Status : must be Online. Corner Software Version ITRGB_xxxx Machine color option Fixed Color : The machine will stay the same color. -
Page 28: Accounts
Accounts Pressing ‘ + ‘ opens the pop menu Pressing ‘ – ‘ closes the pop menu Account Total in : Total money IN in CR Total out : Tickets out x ticket Value in CR : Total in – Total out = Balance Profit in CR Percentage... -
Page 29: Info
Info Machine Details Serial Nr : xxxx Name Name of the machine Cost : x.xx cost price machine Type : The type of the machine Extra information : description Location : The selected location IP Adress : Current IP address Software version : x.x.x.x Last update... -
Page 30: The Different Parts And Functions Of The Machine
The different parts and functions of the machine On each cabinet door: Glass window lock Fire button Coin acceptor Joystick T lock cabinet handle speaker On each control panel: Press 1 time to launch 1 token Hold it for “Rapid fire”: multiple tokens will be launched until you release it. -
Page 31: Instructions For Maintenance
Instructions for maintenance. How to fill the ticket-dispenser The ticket dispensers are located at the left side of each playfield next to the bonus sign. Open the glass window and fill the dispenser completely to the top with tickets. Use the special adaptor for fast loading. Hint: put multiple stacks of tickets on each other. -
Page 32: Error Codes
ERROR codes General Error Network Error The EMOS Controller did not receive a valid IP and cannot operate. Error Software Mismatch Error Wrong OS version The OS needs to be updated to work with the installed game software. Playfield Error 2: Playfield not connected to central unit The playfield isn’t able to reach the central unit for instructions. -
Page 33: Elevator
Functions of the playfield are disabled until the lift has cleared the prizes. (It takes min. 2 prizes on the same playfield to start this safety function) Error 18: Central unit not responding The controller doesn’t receive an answer from the token elevator controller. Error 19: Excess Pay The sorter unit can’t move freely, check for any blockades of in the unit. -
Page 34: The Emos Controller
The EMOS controller Unit (PN 9236.0350) SUPPLY : Connector of the Power IN = High Power ITX1 : Low power connection 1 ( IntraXion bus 1 - Connected with SUPPLY ITX ) Low power connection 2 - ( IntraXion bus 2 – Stand alone : Not used ) ITX2 : COM1 : Comport 1 ( Not used ) -
Page 35: Configuration
Configure your Emos controller for Lift or Playfield Update Game Software Follow instructions in our Service Bulletins ( available at Elaut Service or Elaut Support ) It’s possible to receive the software and service bulletins on your E-mail account installed on your tablet. -
Page 36: How To Relocate Top Feed Or Bottom Feed Power Outlet
How to relocate top feed or bottom feed power outlet Pushers with the new EMOS hardware have the option to locate the power outlet either at the top or at the bottom of the machine. With this example we start with the power outlet located on top of the machine and explain how to relocate it to the bottom. -
Page 37: Dimensions & Specifications
Dimensions & Specifications AVAILABLE MODELS 6 player 3 player Height : 2304 mm / 91 inch Height : 2304 mm / 91 inch Depth : 1757 mm / 69 inch Depth : 1313 mm / 51.5 inch Width : 1960 mm / 77 inch Width : 2003 mm / 79 inch Weight : 650 Kg / 1433 lbs Weight : 470 Kg / 1036 lbs...
