Necessary tools:
• 1 Electric drill
• 1 Bitholder
• Bits:
a. Wooden crosscut
b. Metal crosscut
c. Indus 5mm
• 2 Ladders
• 1 Rubber hammer
• 1 Cutting pliers
• 1 Drill Ø 3.6mm
Sequence of operation:
After you have removed the plastic foil you will see the manual at the back of the
crate. Use this manual to avoid extra actions.

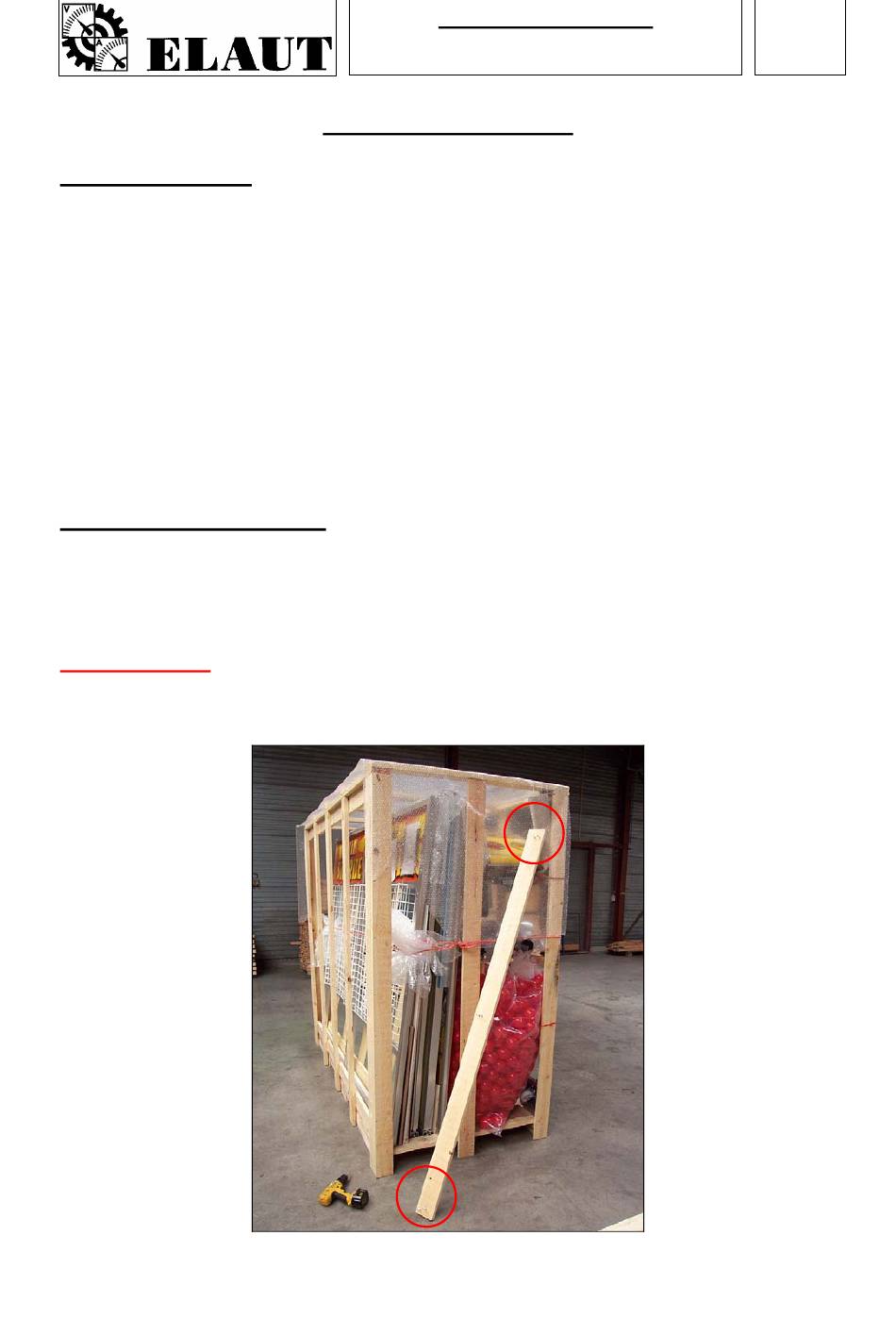

Open the crate:
• Remove the oblique boards at the side of the crate.
Manual The Big One II
Manual The Big One II
Pagina 1 van 24
22/12/04
GDR
