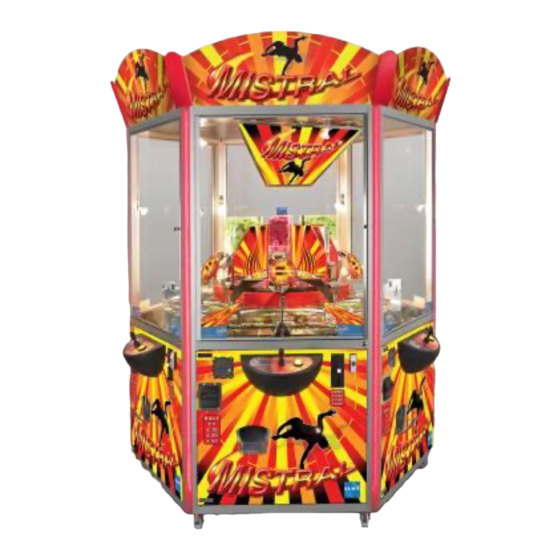

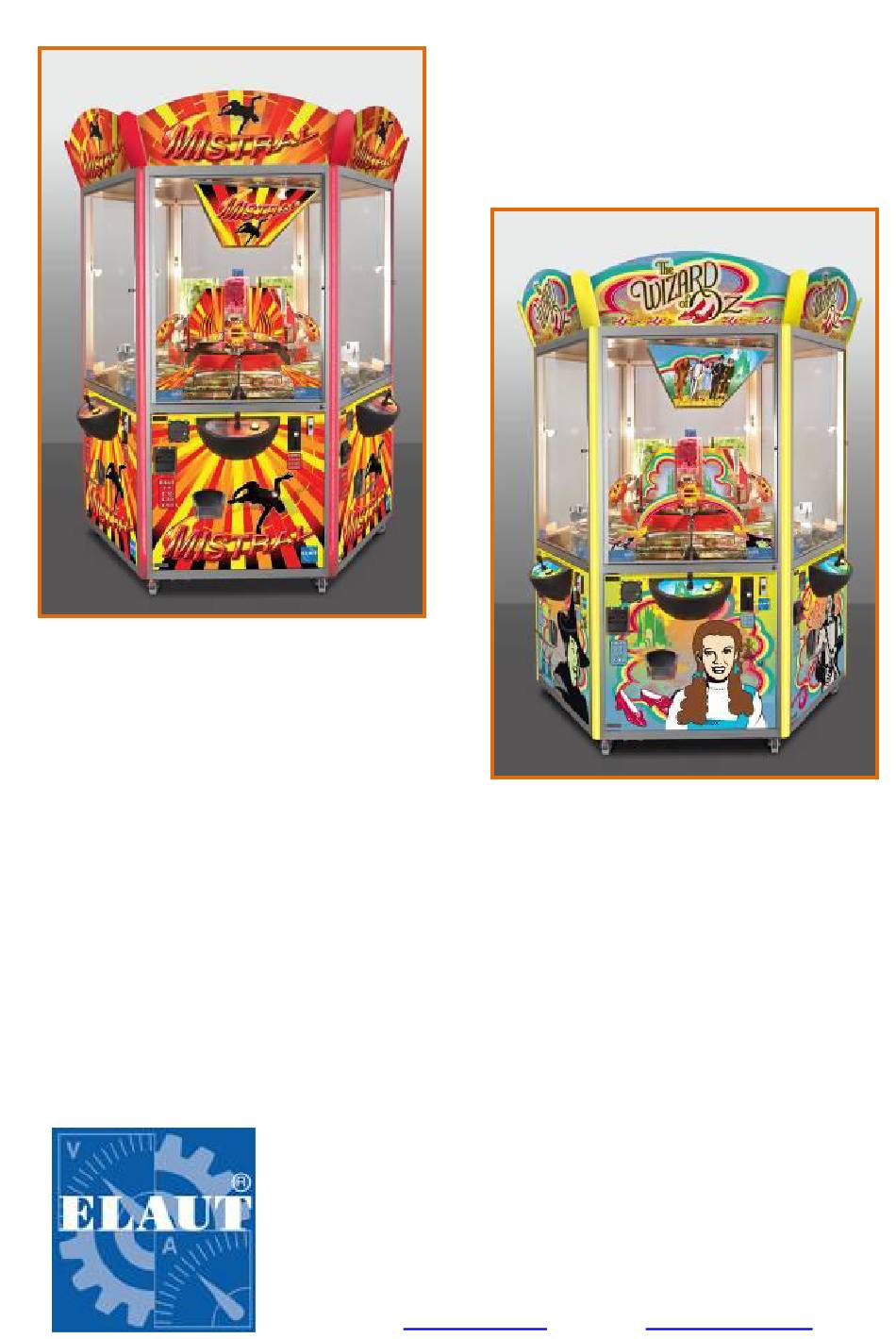

- Page 1 Mistral The Wizard of Oz Manual English 21/12/2010 ELAUT nv/sa Passtraat 223 B-9100 Sint-Niklaas Belgium Tel: +32 3 780 94 80 Fax: +32 3 778 05 61 Website: www.elaut.com E- mail: support@elaut.be...
-
Page 2: Table Of Contents
Cashbox ......................... 4 Accounts ......................... 4 Mechanical counters ....................... 4 Working with the Intraxion Programmer ..........5 Overview menu ..................6 Mistral Pusher ......................... 6 Info management ......................6 Accounts ......................... 7 Cashboxes ........................7 Payout settings ....................... 7 Token settings ........................ 8 Bonus Prizes ........................ -
Page 3: Introduction
Introduction Congratulations with the purchase of your Mistral / The Wizard of Oz with “IntraXion” Technology. We advise you to read this manual completely so you learn the possibilities and the use of this system. Different aspects can be set (see further in the manual). By means of the IntraXion Programmer with an LCD-screen and several push buttons, information about the functionality of the system can be displayed. -
Page 4: Principal Of Operating
If this is the case then please read first the chapter “Set Up” further in this manual Determine the number of tokens As the Mistral/The Wizard of Oz don‟t is a closed loop system and don‟t returns the tokens that fell over the edge, we start to give more tokens than a regular pusher. These way players have enough fun. -
Page 5: Working With The Intraxion Programmer
Working with the Intraxion Programmer The arrows and (1) are used to navigate through the different menus and settings. The “Select” button (2) is used to open or close the different menus or to instigate commands such as clear counters, restart regulator etc. With the “Help”... -
Page 6: Overview Menu
The Mistral / The Wizard of Oz are controlled electronically, but that doesn‟t means that it adjusts automatically. The most imported link is, and stays, the manager. The programmer (see picture on last page) makes it easy to adjust. You walk through the different menus that are mutually linked, and adjust them by a simple push on a button. -
Page 7: Accounts
Accounts total out: total of won merchandise, expressed in terms of ACCOUNTS money. total out: 0.00 total in: total receipts, expressed in terms of money total in: 0.00 result: amount of payout merchandise expressed in result: ERR% percentage #total wins: total wins: number of won points S clear accounts The accounts are used as “long term counters”. -
Page 8: Token Settings
Token settings start budget: mimimum budget to start TOKEN SETTINGS The following lines determines the bonus tokens. start budget 2.00 All inserts will be add to each other as long the game is 1 tokens for not started. (minimum val)0.10 Eg 4 inserts of €0.50 or 2 inserts of €1 give the same 12 tokens for number of tokens as 1 insert of €2. -
Page 9: Dispenser 2 Setting
Dispenser 2 setting Idem as dispenser 1 settings DISPENSER2 SETTINGS S refill lock S get dispenser 2 S refill disp2 S disp1 alarm i total refill2 Dispenser 3 settings Idem as dispenser 1 settings DISPENSER3 SETTINGS S refill lock S get dispenser 3 S refill disp1 S disp1 alarm i total refill1... -
Page 10: Mechanical Diagnostics
Mechanical diagnostics calibrate carr: calibration of the carousel MECHANIC DIAGN. tot tokens: Total amount of the played tokens S calibrate carr. clear tot tokens: to clear the total of played tokens. i tot tokens S clear tot tokens Module Info playfield nb *: identification number of the playfield. -
Page 11: Set Up
Set Up Attention: after set up 1 section, copy all settings to the other sections. For this you can use the function “copy all settings”. Then “restart game” on each section. Volgende instellingen zijn het belangrijkste en hebben ook invloed op de uitbetaling. Token settings Set first the number the number of tokens you want to give TOKEN SETTINGS... -
Page 12: Warnings And Errors
Warnings and Errors Warnings and errors are visible on the Intelli Programmer. They appear when a bad working of the crane is detected. You can clear these by pressing “S”. You clear only the mentioning and not the problem. By an error a code will appear on the token display. - Page 13 Display code: 9 ERRORS AND WARNINGS This warning appears when dispenser 2 doesn‟t paid out, prize disp.2 possible the dispenser is empty or obstructed. emptyPress S to resume Display code: 10 ERRORS AND WARNINGS This warning appears when dispenser 3 doesn‟t paid out, prize disp.3 possible the dispenser is empty or obstructed.
- Page 14 Display code:36 ERRORS AND WARNINGS No communication with the controls module. controls mod status Press S to resume Display code:37 ERRORS AND WARNINGS No communication with the display module. display mod status Press S to resume Display code:38 ERRORS AND WARNINGS Problem with the escalator hopper, can be obstructed or escalator timeout didn‟t pay in time.
