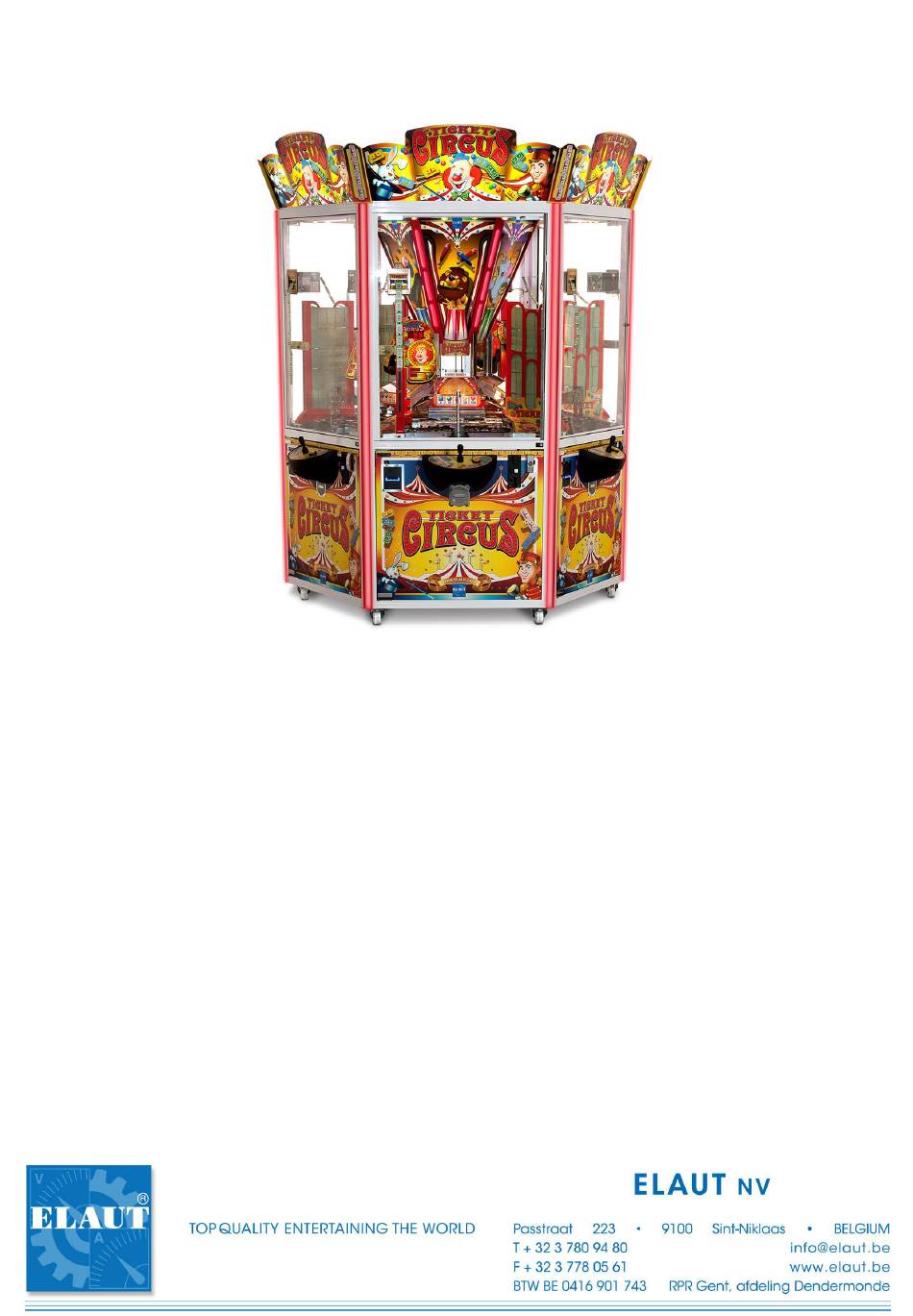

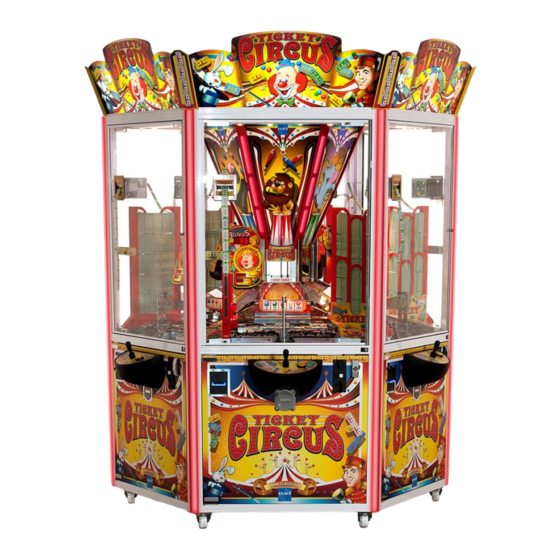

- Page 1 TICKET CIRCUS TYPE: PUSHER TAGS AND TICKETS MODELS: TICKET CIRCUS 3 PL TICKET CIRCUS 6 PL OPERATOR (USER) & SERVICE MANUAL ENGLISH VERSION 17 JANUARY 2019...
- Page 2 Elaut NV. Elaut NV accepts no liability for damage and/or problems arising from the use of spare parts not supplied by Elaut NV. This manual has been compiled with all possible care. Elaut NV assumes no responsibility for any errors in this manual and/or the consequences of an erroneous interpretation of the instructions.
-
Page 3: Preface
Should you discover any errors or omissions, please bring this to the attention of Elaut NV, so that we can make amendments. This will enable us to improve our documentation. -
Page 4: Warranty
VERSION HISTORY During the lifetime of the Ticket Circus machine, engineering and/or technical improvements may result in the need to revise this manual. It is then at the discretion of Elaut NV, if a revision/new version of this manual is required. -
Page 5: Manufacturer Details
Belgium T +32 3 780 94 80 T +32 3 778 05 61 info@elaut.be www.elaut.be TRADEMARKS All trademarks stated in this manual are registered trademarks of Elaut NV. TERMS Machine Ticket Circus Installer Person qualified to install the Ticket Circus... - Page 6 Ticket_Circus_1.2_ENG Elaut NV...
-
Page 7: Table Of Contents
Unpacking and installing the amusement machine ................14 Installing the top signs (3/6) ......................15 Preparing the amusement machine for use ..............17 Preparing the playfields ........................17 Filling the ticket dispenser ......................... 18 Recording Settings in the EMOS Client system.................. 19 Elaut NV Ticket_Circus_1.2_ENG... - Page 8 Instructions for maintenance ..................36 Relocating the power outlet ......................36 Clearing ticket jams..........................38 Transportation ........................ 38 ERROR codes ........................39 Common events ..........................39 Playfield events ..........................39 Lift events ............................40 notes ..........................42 Ticket_Circus_1.2_ENG Elaut NV...
-
Page 9: Introduction
Android OS (Apple IOS & Windows OS are not supported), provided the machine is linked to a local area network. Elaut can supply a tablet in combination with a wireless router in order to view machine info in a stand-alone manner. The EMOS Client software can be accessed to adjust the software settings and to activate test procedures wirelessly. -
Page 10: Description
SD card holder: used for update IOS (Toradex) and software LAN2 RJ45 network connection 2 (not used) USB HOST USB connection type B used for update software - playfield lift config. USB DEV USB connection type A Ticket_Circus_1.2_ENG Elaut NV... -
Page 11: Sub Components
9030.0455 – 3G Router 21Mbps (on top of the machine) The router is an optional component which can be purchased at Elaut. The 3G Router 21Mbps is a highly reliable and secure 3G router for professional applications. It delivers a high performance and mission-critical cellular communication. -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS Characteristics Ticket Circus 3 pl Ticket Circus 6 pl Mains voltage 100-245V 100-245V Frequency 47-63Hz 47-63Hz Overload protection 10AT Rated current 2.1A@ 230VAC / 4.1A@115VAC 3.4A@ 230VAC / 6.7A@115VAC Power consumption 320W (typ) / 475W (max) 515W (typ) / 775W (max) -
Page 13: Safety
In order to minimize the risk of ignition, component temperatures are limited to safe levels. The hottest components are resettable fuses that use thermal PTC features. Their off-state temperature is max. 125°C. The earth leakage current is less than 1mA. Elaut NV Ticket_Circus_1.2_ENG... -
Page 14: Installation
8. Plug in the LAN connector (on top of the machine) in the LAN network or connect the optionally provided router (see Service). For more information about changing the location of the power outlet, see the Relocating the power outlet procedure. Ticket_Circus_1.2_ENG Elaut NV... -
Page 15: Installing The Top Signs (3/6)
Each Ticket Circus amusement machine consists of three or six playfields, all of them can be equipped with a top sign. For the installation procedure of the top signs, you must have the following components at your disposal: Ticket Circus 3 pl 2 yellow brackets (as pictured) ... - Page 16 6. Slide the plexi top sign in front of the led board. 7. Fix the plexi top sign by tightening all butterfly nuts. 8. Repeat the installation procedure for all playfields. Ticket_Circus_1.2_ENG Elaut NV...
-
Page 17: Preparing The Amusement Machine For Use
PREPARING THE PLAYFIELDS The machine is delivered with 3 bags (Ticket Circus 3 pl) or 6 bags (Ticket Circus 6 pl) of 1,000 tokens each. In fact, this comes down to 1 bag per playfield. You have to take out 700 tokens from each bag to divide them over the playfield and hopper, i.e. -
Page 18: Filling The Ticket Dispenser
4. Guide the tickets through the input slot [1]. 5. Press the yellow button [2]. 6. Pull the first ticket out. To clear jammed tickets, you must follow the Clearing ticket jams procedure. Ticket_Circus_1.2_ENG Elaut NV... -
Page 19: Recording Settings In The Emos Client System
Decrease the Bonus value Change Bonus chances to more playfields Choose a lower Playfield configuration Payout percentage too low Increase the Bonus value Change Bonus chances to less playfields Choose a higher Playfield configuration Elaut NV Ticket_Circus_1.2_ENG... -
Page 20: Operation
The tokens are collected in a hopper, i.e. a cone- shaped device from which they can be released to re-enter the playfield by pressing the (RAPID) FIRE button. The value of the prize tags is determined by an RFID reader, a command-based unit providing a Ticket_Circus_1.2_ENG Elaut NV... - Page 21 When the bonus is won, the bonus value, i.e. the accumulated tickets, will be attributed to the player; the value in the bonus display will be reset to the Bonus start value specified in the Payout settings. Elaut NV Ticket_Circus_1.2_ENG...
-
Page 22: Playing The Game With A Fixed Bonus
RFID reader. This unit is located just above the sorter unit. A built-in lift will return all prize tags back to the playfield. When, for instance, a Square 5 tag is detected by the RFID reader, the player will immediately receive 5 tickets. Ticket_Circus_1.2_ENG Elaut NV... - Page 23 Bonus value specified. Winning the bonus is a random occurrence. A player might win the bonus only after launching 60 tokens. You can use the Bonus chances parameter to increase/decrease the chance of winning the bonus. Elaut NV Ticket_Circus_1.2_ENG...
-
Page 24: Emos Client Program
(incl. its number) selected on the previous window, is shown at the top-left of this window. The following icons can be found on this window: Press this icon to return to the previous window. Press this icon to activate the Settings menu. Ticket_Circus_1.2_ENG Elaut NV... -
Page 25: Settings
After you have selected this option on the Settings window, the Pay-out settings window will be displayed. The following icons can be found on this and subsequent windows: Press this icon to edit the settings on this window. Press this icon to close this window and return to the Settings window. Elaut NV Ticket_Circus_1.2_ENG... - Page 26 (Money IN/Tickets OUT). As is illustrated from the figure above, a player will receive 124 tokens after having paid 10 euro. If the bonus levels are left blank, he/she will only receive 100 tokens. Ticket_Circus_1.2_ENG Elaut NV...
- Page 27 The player wins either the value of tokens or tickets, when the lit led stops just before or just after the STOP sign position. The player can win 3, 5 or 7 tickets or tokens. The minimum consolation prize is 1 ticket or token. Elaut NV Ticket_Circus_1.2_ENG...
-
Page 28: Money Settings
Press this icon to close this window and return to the Settings window. The following Money settings data are displayed: MONEY SETTINGS Game price Enter the minimum amount required to start a new game. This is the starting amount. Ticket_Circus_1.2_ENG Elaut NV... -
Page 29: Sound Settings
Press this icon to edit the settings on this window. Press this icon to close this window and return to the Settings window. Slide the blue dot to the left to decrease or to the right to increase the volume. Elaut NV Ticket_Circus_1.2_ENG... -
Page 30: Playfields
Press this icon to close this window and return to the Settings window. Press this icon to activate the settings on this window. This window lists 3 playfields (Ticket Circus 3 pl) or 6 playfields (Ticket Circus 6 pl). For all playfields you can set or adjust the following settings:... - Page 31 The status must be online (information detail). Software Version The version is stated as ITBNS_xxxx (information detail). RFID - Status The status must be online (information detail). Software Version The version is stated as ITTGR_xxxx (information detail). Elaut NV Ticket_Circus_1.2_ENG...
-
Page 32: Machine
Go down level and from there it ascends to the Dispense level. The lift moves to the Dispense level in case of a normal play mode. Lift Real-time actions. The lift is equipped with a 2420.0011 - dd42 motor. Ticket_Circus_1.2_ENG Elaut NV... -
Page 33: System Settings
Use the drop-down menu to select a fixed color or the rainbow effect for the 3 (Ticket Circus 3 pl) or 6 (Ticket Circus 6 pl) vertical light tubes on the corners of the machine. The fixed colors to select from are: ... -
Page 34: Accounts
Card in The total inserted swipe value. Prize ticket out The total number of prize tickets issued. Bonus ticket out The total number of bonus tickets issued. Mercy ticket out The total number of mercy tickets issued. Ticket_Circus_1.2_ENG Elaut NV... -
Page 35: Info
The date and time of the latest software update. Production date The production date of the machine. Date first use The date the machine was put into operation. Date last reset The date the counters were reset for the last time. Elaut NV Ticket_Circus_1.2_ENG... -
Page 36: Instructions For Maintenance
1. Locate the power outlet on top of the machine. 2. Unscrew the 3 screws. 3. Pull out the power outlet. 4. Pull out the white connector. 5. Lift off the cover plate. Ticket_Circus_1.2_ENG Elaut NV... - Page 37 6. Open the cabinet under a playfield containing the power supply. Playfield 3 (Ticket Circus 3 pl) Playfield 2 (Ticket Circus 6 pl) 7. Locate the blank metal plate. 8. Unscrew the 3 screws. 9. Disconnect the white connector inside.
-
Page 38: Clearing Ticket Jams
Lift the device from its wheels using chunks of wood or anything similar; Fasten the flat side of the device to a steady object to prevent it from moving during its transportation. Install tie wraps to the hopper movement unit to prevent from moving Ticket_Circus_1.2_ENG Elaut NV... -
Page 39: Error Codes
The IO PCB at the control panel cannot be found by the controller. Error 702 LIN Event XY Time-out The XY PCB located at the right side of the prize shaft cannot be found by the controller. Error 703 LIN Event Hopper Time-out Elaut NV Ticket_Circus_1.2_ENG... -
Page 40: Lift Events
This error can be categorized into 4 specific time-out events: Error 141 Lift time-out dispense -> home The lift did not reach the Home level in time, while coming from the Dispense level. Error 142 Lift time-out home -> load Ticket_Circus_1.2_ENG Elaut NV... - Page 41 Home level. Error 15 Lift not calibrated The position of the lift is unknown, as it was not recognized by the calibration sensor. Error 16 Lift not connected The lift has not been recognized by the controller. Elaut NV Ticket_Circus_1.2_ENG...
-
Page 42: Notes
NOTES Ticket_Circus_1.2_ENG Elaut NV...
