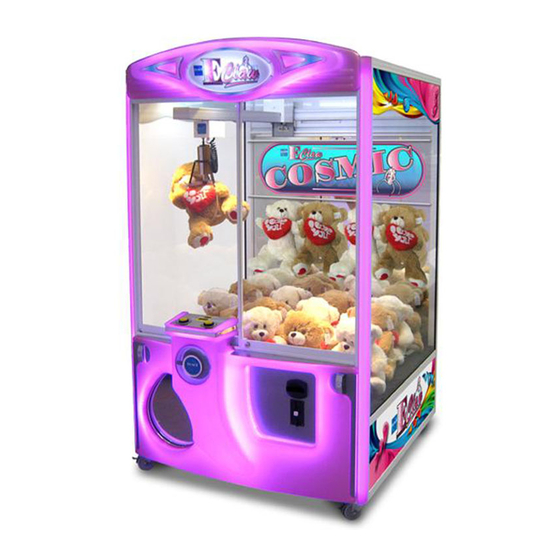

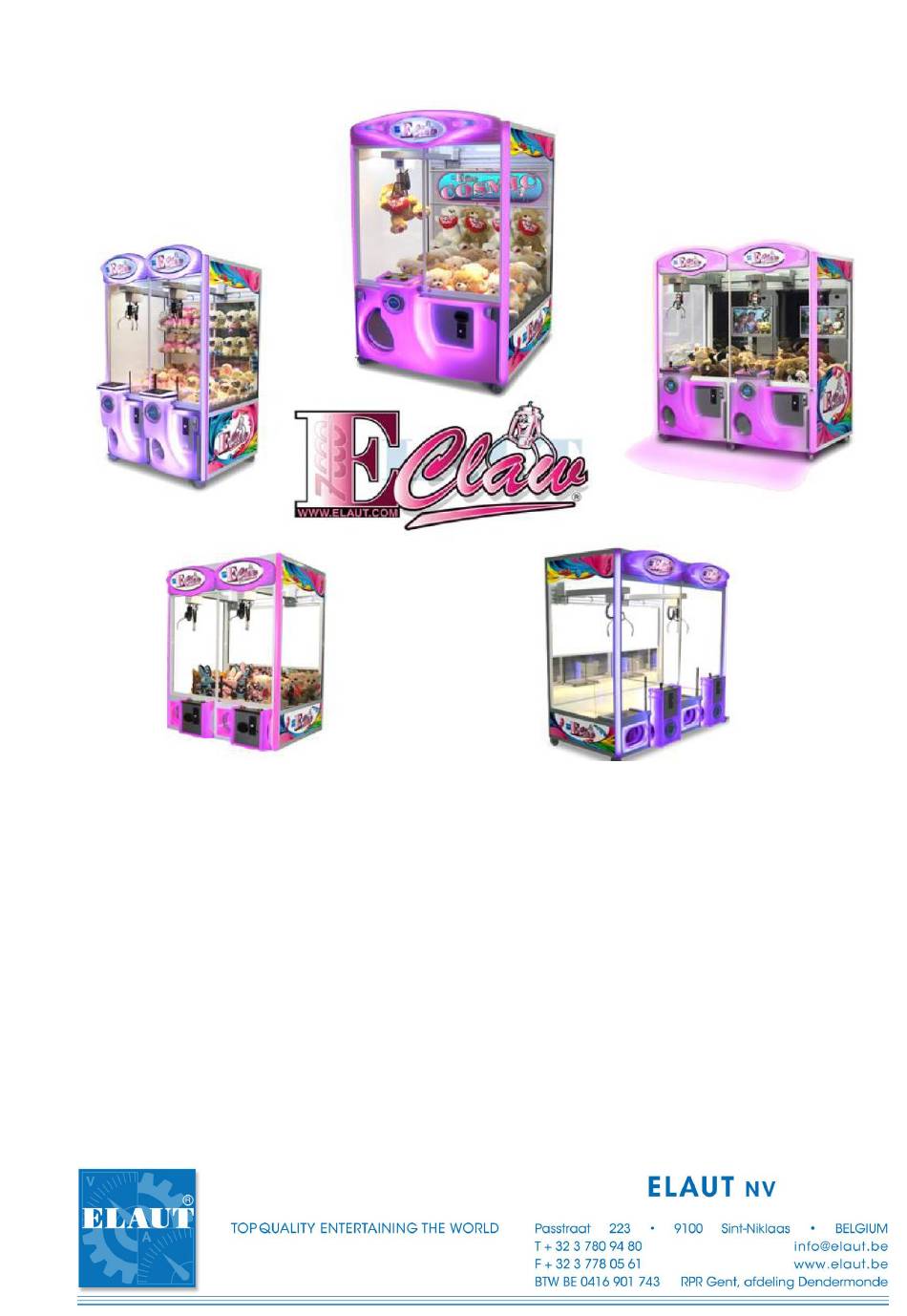

- Page 1 Program Manual E-Claw IntraXion controller standard software 1000R10.3 January 2017 E-Claw 600 1/2/3 sp E-Claw 900 1/2 sp E-Claw Cosmic 1 sp E-Claw Harmony 1/2/3 sp...
-
Page 2: Table Of Contents
Table of contents. Inhoudsopgave Introduction ......................3 Principal of operating ..................3 The course of the game ..................3 Working with the IntraXion Programmer ............4 Directions ......................5 Error messages ....................5 Overview Menu ....................6 IntraXion crane ..........................6 Info management .......................... -
Page 3: Introduction
Of course this Elaut product is fully compatible with the Intelli Link remote management system. We advise you to read this manual completely so you learn the possibilities and the use of this system. -
Page 4: Working With The Intraxion Programmer
Working with the IntraXion Programmer PRODUCT DEFINITIONS i set perc. 1 e.price out 1 10.0 product cost1 S claw learn1 The arrows and (1) are used to navigate through the different menus and settings. The “Select” button (2) is used to open or close the different menus or to instigate commands such as clear counters, restart regulator etc. -
Page 5: Directions
Directions Some functions such as setting the size of the playfield or system settings a remark will appear on the display of the IntraXion programmer. Possible remarks: i please wait remain patience while the action is being executed or the settings are being loaded. I parameter locked! The setting you are trying to change is locked and cannot be adjusted. -
Page 6: Overview Menu
Overview Menu There could be some small differences in relation to your program depending on your local legislation. * Not available when in the menu “Info management” advanced param. is set to OFF IntraXion crane Identification of the program. Here you find the machine type, INTRAXION CRANE version, revision number and date. -
Page 7: Cash Boxes
Cash boxes coin in: amount of received coins. CASH BOXES bill/tk in: amount of received bills/tokens coin in: 350.0 bill/tk in: 20.0 #wins : total amount of won products #wins: #games*: number of played games since last reset #games: #consolate out*: amount of won consolation prizes. #consolate out ex: ticket dispenser, chewing gum dispenser, …... -
Page 8: Product Definition
Product definition PRODUCT DEFINITION the percentage “i Trend xx %” represents i trend: the win i trend percentage that has been established through the last 6 wins i set perc. and will approach the “i set perc” after 4 wins. e price out 10.0 Look further in this manual on page 18. -
Page 9: Credit Settings
Credit settings game price: the price of 1 game Bonus levels X credits for a total of xx.x: CREDIT SETTINGS The first bonus level = Reference channel. game price 5 credits for a total of (ref) 2.0 You can set the number of credits (X) for a specific 13 credits for inserted amount (xx.xx) and this must correspond with a total of... -
Page 10: Color Settings
Color settings* color*: the first color of the crane COLOR SETTINGS to color*: the last color of the crane. color to color fading speed:* the transition speed between all shades of set fading speed colors. When set to 0, no color change. Only the first set color pattern phase will light up. -
Page 11: Money Settings
Money settings* To adjust the value for each channel MONEY SETTINGS coin 1 – 6*: To adjust the value of a coin for each channel. coin 1 Coin 1 is equal to the first channel of the coin acceptor. coin 2 b3 –... -
Page 12: Pickup Results
Playfield '600' '900' '1200' Ajustable: Game pos F-B Game pos L-R Video: 4 / Shelf: 8 Back margin Size F-B Size L-R Drop corner F-B VERBODEN ZONE OFF LIMITS Startplaats L-R Game pos L-R Size L-R Pick up results* i weight actual*: this is the actual measured value of the PICKUP RESULTS weighing unit. -
Page 13: Mechanic Diagn
Mechanic diagn* T mechanical test*: a complete test of the mechanical cycle. MECHANIC DIAGN. When you keep the instant replay button pressed in after T mechanical test activating this test, the mechanical cycle will repeat until the i #cycles Instant Replay button is released. I #cycles*: indicates the number of cycles during the last test Test info * This menu shows if the input to the IntraXion controller is activated... -
Page 14: Module Info
You can check your sound version in the “Module i gantry Z mod. info” menu. Should you wish to install another version, please get ITXGZ_B0012 in touch with the Elaut team or contact your local distributor. i light module ID= ITRGB_A0104 i video module... -
Page 15: How To Set Up A New Product ( Automatic Claw On )
How to set up a new product ( automatic claw on ) Step 1: Select the correct coil & claw First we need to know the dimension and weight of the plush so we can choose the correct coil & claw by using the “Claw overview”... -
Page 17: Step 2: Set The Price
Step 2: Set the price Insert the correct purchase price of the plush on the line PRODUCT DEFINITION product cost. i set perc. e price out 10.0 Than insert the vending price at the line e price out product cost automatic claw Due to these 2 settings the desired payout percentage will T claw learn... -
Page 18: Measurement Ok !! Signal And Message : Accepted
Go to the line “Claw learn” in this same menu “ “ and Product definition Press “T” the gantry will move to the right hand side. the claw will go down automatically. The claws grabs the merchandise. ... -
Page 19: Step 4: Set The Pick-Up Time
Step 4: Set the pick-up time The pick-up time is a setting that allows you to make the game PRODUCT DEFINITION more teasing. The higher the time is set, the higher the plush will i trend i set perc. be lifted from the playfield. e price out 10.0 On automatically mode also this setting will be adjusted when... - Page 20 Step 2: adjust claw power and pick up time PRODUCT DEFINITION Reboot controller to recognizes the correct coil after i trend changing. i set perc. Automatic claw should be ‘ OFF’ e price out 10.0 product cost Retaining power: power to release merchandise. automatic claw Place merchandise in claw and press .
- Page 21 Actually the “Restart game” command should only be executed in case of radical changes in: cost price / selling price product / grabber after changing “Credit settings” Note that the percentage in the “Accounts” menu is long term and is NOT set to zero when executing the “Restart game”...
-
Page 22: Warnings
For example: Pickup time is set 0.4 sec Random “ON” : => MIN 0.3 sec and MAX 0.6 sec. Pickup time with “Automatic claw = ON” the minimum pickup time is 0.4 sec Pickup time with “Automatic claw = OFF” the minimum pickup time is 0.2 sec TIP : If you think that prizes are still being lifted too high, deactivate the ‘Automatic claw’... - Page 23 Check if the machine works properly or the coin/bill acceptor is not obstructed. If necessary, adjust the inactive alarm in the menu system settings. code 05 : claw tuning problem check the menu product definitions. Learn the prize once again if necessary. code 06 : object weight diff.
-
Page 24: Errors
The claw did not reached the up (in time). Check the mechanical functions of the gantry. Software update By means of the Elaut Program Loader a software update is possible via the IntelliLink connection. *To obtain the right functionality *To solve known problems... - Page 25 ITXGZ_B0106 (or more recent) ITX_RGB_controller = ITRGB_B0104 (or more recent) Video controller = ITVID_C0203 (or more recent) (x means: each figure or letter). If the Firmware = 2A or 2B, the controller has to be reprogrammed by an Elaut technician.
