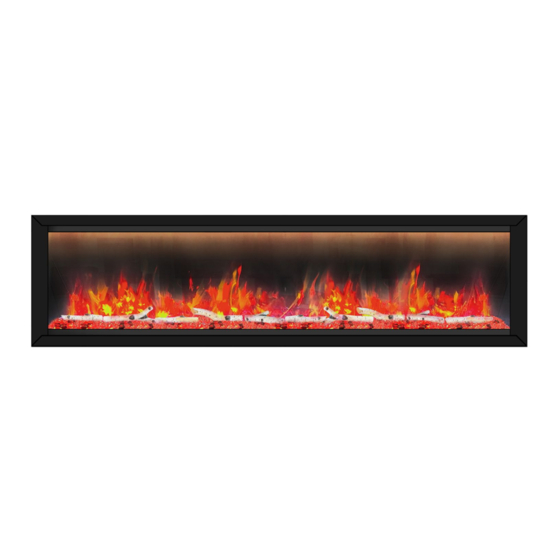

- Page 1 DYNASTY FIREPLACES Allegro DY-BFM Series Installation Guide FLUSH-MOUNT INSTALLATION...
- Page 2 NEVER plug this heater into an outlet that is old, cracked, or has any loose wires or connections. Plugging this heater into a faulty outlet could result in electric arcing within the outlet that could cause the outlet to overheat or catch fire ©2022 Dynasty Fireplaces...
- Page 3 Allegro Series Installation Guide ● With the front trim removed, ensure the magnets and holders are removed from the top and bottom trim...
- Page 4 Allegro Series Installation Guide ● Unscrew the bolt and hinge holding the front glass. To remove the glass, use the hinges to hook onto the glass to pull it forward, or slowly tip the fireplace forward to catch the glass. Safely set aside glass for later...
- Page 5 Allegro Series Installation Guide ● The optional four rubber feet may be removed for more stability...
- Page 6 Allegro Series Installation Guide STEP 1 Create the framing according to the dimensions below Framing Dimensions Model DY-BFM58 DY-BFM68 DY-BFM76 DY-BFM82 486 mm. 486 mm. 486 mm. 486 mm. 19 ⅛ in. 19 ⅛ in. 19 ⅛ in. 19 ⅛ in. 1369 mm 1623 mm 1826 mm.
- Page 7 Allegro Series Installation Guide STEP 2 ● Apply finishing around the opening area, and ensure opening dimensions remain the same.
- Page 8 Allegro Series Installation Guide STEP 3 ● Insert fireplace into the opening, and ensure the thin edges on the left and right are aligned flush with the surface of the finishing material.
- Page 9 Allegro Series Installation Guide STEP 4 ● Insert fireplace into the opening - ensure the thin edges on the left and right are aligned flush with the surface of the finishing material.
- Page 10 Allegro Series Installation Guide STEP 5 ● Secure the fireplace using the provided ST4x12 metal screws, insert the screws into the opening on the top left and right of the side panels. Ensure side panels do not deform when screws are inserted.
- Page 11 Allegro Series Installation Guide STEP 6 ● Place the decorative crystal or wood log media onto the fire bed, then reinstall the front glass – secure the glass by installing the bolt and hinge below the top trim.
- Page 12 Allegro Series Installation Guide STEP 6 ● Place the front trim onto the fireplace – the trim will be self-secured by magnets.
- Page 13 SUPPORT For more product information, maintenance guide, and contact information, visit: support.dynastyfireplaces.com Contact us: support@dynastyfireplaces.com ©2022 Dynasty Fireplaces...
- Page 14 THANK WWW.DYNASTYFIREPLACES.COM...
