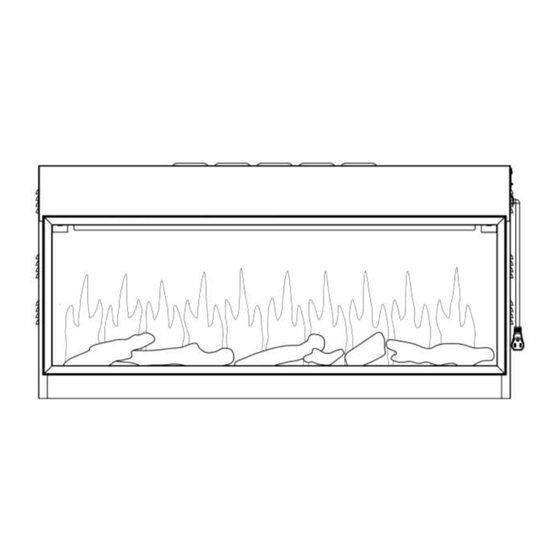

- Page 1 Homeowner’s Installation Instructions & Operating Manual Model: DY-BEF37 DY-BEF45 DY-BEF57 DY-BEF64 DY-BEF80 Please read the instructions carefully before installation or use of this electric fire and retained for future reference. Dynasty Fireplaces #10-3071 No.5 Road, Richmond, BC V6X 2T4 Canada...
-
Page 2: Table Of Contents
Contents Important safety information ..................3 Appliance data ......................5 Product dimension ......................5 Packing list ........................6 Installation........................6 Operation ........................11 Care and maintenance ....................14 Warranty ........................15... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION! WARNING Read all instructions before using this heater! This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from the front of the heater, and keep them away from the sides and rear. - Page 4 WARNING WARNING: REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK---DO NOT USE THIS HEATER WITH ANY SOLID STATE SPEED CONTROL DEVICES. For residential use only! NOT for commercial use! Any commercial or public use of this heater voids all warranties, and could cause injury. ...
-
Page 5: Appliance Data
APPLIANCE DATA Model No. EF206-210B (BEF37-80) Supply Voltage AC 120V 60Hz Heating Element 1500W Mains Cable 1 x 2.0m (approx) Maximum power consumption: 1500W Power for flame effect: EF206B EF207B EF208B EF209B EF210B (BEF37) (BEF45) (BEF57) (BEF64) (BEF80) 9W+8W 10.4W+8W 15W+8W 17.2W+8W 26.7W+8W... -
Page 6: Packing List
PACKING LIST A - Fireplace (1) C-AAA Battery (2) B-Remote Control (1) D-Small and Large F- ST 4*8 Metal Screws Crystal Stones (1 set) E-Log (1 set) G- Fixing Brackets (4) H- ST 4*12 Metal Screws I- Owner’s Manual (1) INSTALLATION LOCATING YOUR ELECTRIC FIREPLACE Your new electric fireplace may be installed virtually anywhere in your home. - Page 7 Choose a fireplace location and frame as shown in figure 1. units: inch MODEL EF206B EF207B EF208B EF209B EF210B (BEF37) (BEF45) (BEF57) (BEF64) (BEF80) 36.93 44.80 56.62 64.49 80.24 Figure 1 Take out the 4 fixing brackets and 8pcs ST4X8 screws to fix on the left and right side panel of the unit.
- Page 8 Figure 3 Take out the trim gently, take out the screw M5*12 on both sides, and use glass hook to take out the glass carefully as shown in figure 4 and figure 5. Figure 4...
- Page 9 Figure 5 Set the fuel bed For crystal effect: Carefully spread the small clear crystal stones across the fuel bed. Then evenly arrange the larger crystal stones along the inset window ledge at the front of the firebox. For log effect: Arrange the logs.
-
Page 11: Operation
The fireplace is packaged with a three prong plug installed for plug-in convenience. Hard wiring the fireplace is also an option for any installation. Plug in (you may run the power cord out of the framed wall opening to an existing outlet or install an outlet on a nearby wall stud within the wall). - Page 12 NOTE：The flame will always on when the appliance is on. Main power switch The POWER switch supplies power to all of the functions of the fireplace. This switch must be in the “ON” position for any of the functions including the remote to work. Power button By pressing the POWER button, turn the fireplace on when it is off or turn it off when it is on.
- Page 13 Multifunction Infrared Remote Handset BUTTON FUNCTION ACTION & INDICATION ON: Turns on. 1. Press. The flame effect and the Note: remote control functions are enabled. All the functions are off in the standby mode, The flame setting will display on the it will memorize the working condition of flame remote control screen.
-
Page 14: Care And Maintenance
CARE AND MAINTENANCE ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. Cleaning NEVER immerse in water or spray with water. Doing so could result in electric shock, fire, or personal injury. -
Page 15: Warranty
Proof of purchase will be required so the original invoice should be retained. Dynasty Fireplaces #10-3071 No. 5 Road, Richmond, BC V6X 2T4 Canada Telephone: (604) 821-1009 Toll free: 1-877-521-1009...
