Installation Instructions &
ELECTRIC HEATER WITH REMOTE CONTROL
READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR
MAINTAIN THE PRODUCT DESCRIBED.
PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION.
FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY
AND/OR PROPERTY DAMAGE.
WARNING! To reduce the risk of fire, electric shock, or personal
injury, read all the instructions before using this heater.
Homeowner's
Operating Manual

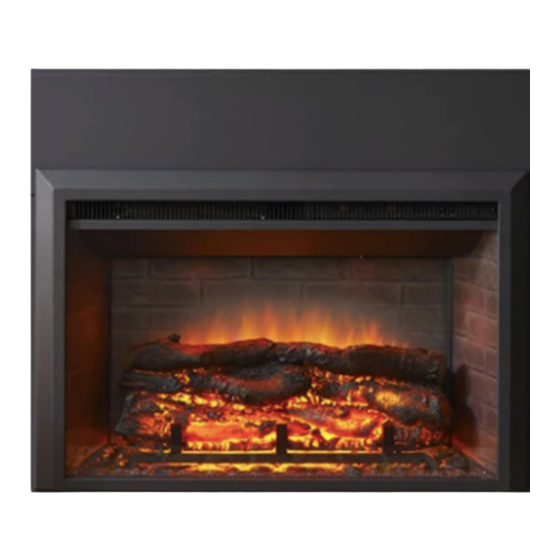

Model: EF30W
Advertisement
Related Manuals for Dynasty Fireplaces EF30W
Summary of Contents for Dynasty Fireplaces EF30W
- Page 1 Homeowner’s Installation Instructions & Operating Manual ELECTRIC HEATER WITH REMOTE CONTROL Model: EF30W READ AND SAVE THESE INSTRUCTIONS READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances，basic precautions should always be followed to reduce the risk of fire，electrical shock，and injury to persons including the following： DANGER-High temperatures may be generated under certain abnormal conditions. Do not partially or fully cover or obstruct the front of the heater. 1. - Page 3 （RD） （OW） （OH） EF30W LOCATING YOUR ELECTRIC FIREPLACE Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed. For best results, install out of direct sunlight.
- Page 4 Clearance to Combustibles Sides ………………………………..0 in. (0 mm) Floor ……………………………..0 in. (0 mm) Top …………………………….……0 in. (0 mm) Back ………………………………...0 in. (0 mm) Before you begin: If a power outlet is not located inside the existing fireplace (always consult with local building codes before installing new outlets or modifying existing electrical systems) , the insert surround pictured below has two openings for the power cord to pass through if powering the unit from a nearby outlet outside the existing fireplace.
- Page 5 Method 1- Friction Fit (1) Set Insert Surround into place, Slide in fireplace unit. Run electrical cord through (2) Slide flush with front of fireplace pass-through hole if necessary Attach front face trim by hanging tabs on top, then pressing lower pins into spring clips at bottom. (4) Completed assembly...
- Page 6 Method 2: Permanent Install (1) Put 2 wood strips in existing (2) Fix the wood strips with (3) set insert surround into place. fireplace cut to fit the height of the masonry screws other Run cord through passthrough opening, and spaced 26.5” apart appropriate screws for the material hole if necessary .
-
Page 7: Electrical Connection
ELECTRICAL CONNECTION A 15 AMP, 120 Volt, The unit comes standard with 6 feet (1.8 m) three wire cord, exiting from the rear of the fireplace. Plan the installation to avoid the use of an extension cord. Preferably, the fireplace will be on a dedicated circuit as other appliances on the same circuit may cause the circuit breaker to trip or the fuse to blow when the heater is in operation. - Page 8 By pressing the FLAME button, the unit will cycle through five flame effect. If you need more flame, please use the remote handset. Heater button Press once HEATER button left hand heater on. (Pilot lights illuminated ●○). Press again turns left hand heater off and right hand heater on. ( Pilot lights illuminated ●●) Press third time turns left and right hand heater off.
-
Page 9: Maintenance
Store heater in a clean dry place when not in use. Warning: Any other servicing needed must be performed by an authorized service representative. Do not attempt to service the unit yourself. Dynasty Fireplaces Unit 10 – 3071 No. 5 Road Richmond, BC V6X 2T4 Canada Tel.: (604) 821-1009 Toll free: 1-877-521-1009...
