Summary of Contents for Onix ON-HPD8W

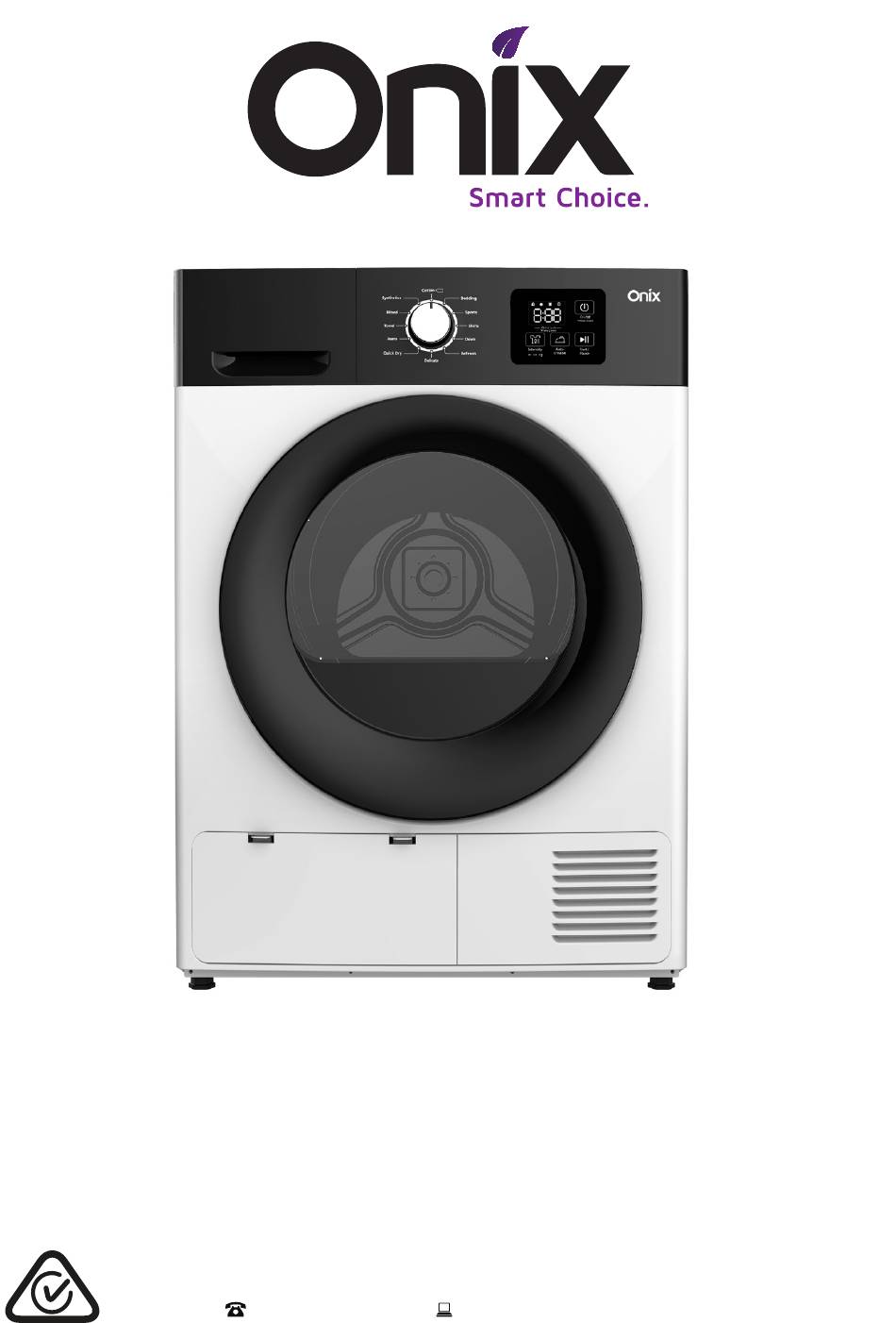

- Page 1 8 kg Heat Pump Dryer USER MANUAL Model Number ON-HPD8W After Sales Support 1300 886 649 | tempo.org/support...
-
Page 2: Table Of Contents
Contents General Safety Instructions Unpacking Product Overview Installation Instructions FAQs and Troubleshooting Guide Other Useful Information After Sales Support 1300 886 649 | tempo.org/support... -
Page 3: General Safety Instructions
General Safety Instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, the safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Keep the manual in a safe place for future reference, along with any warranty information and your purchase receipt. - Page 4 General Safety Instructions (Cont.) Usage conditions and restrictions • Domestic use only: This appliance is intended for household use only. It is not suitable for commercial, industrial or trade use. Do not use it for anything other than its intended purpose (drying domestic quantities of washing), and only use it as described in this manual.
- Page 5 General Safety Instructions (Cont.) • WARNING! The lint filter must be in place when drying. It must be cleaned before or after each use. • Cool down: The final part of a clothes dryer cycle occurs without heat (cooling phase) to ensure that the items are left at a temperature that will not damage them. WARNING: Never stop the clothes dryer before the end of the drying cycle unless all items are removed quickly and spread out so the heat is dissipated.
- Page 6 General Safety Instructions (Cont.) CAUTION! The items listed below are UNSUITABLE for clothes drying. They can cause fire in the dryer or extensive damage. DO NOT place them in the clothes dryer. : Items containing foam rubber (also known as latex foam) or similarly textured rubber-like materials —...
-
Page 7: Unpacking
Unpacking CAUTION: VERY HEAVY! • A team lift or mechanical aid is required when moving and installing this appliance. • Keep the heat pump dryer as upright as possible during transportation (ensure it is not tilted at an angle greater than 45°). If the dryer tips, leave it to stand upright for at least two hours before switching it on. -
Page 8: Product Overview
Product Overview Scope of delivery Power cord Control panel Water tank Door Door hook Inner barrel Upper filte Front Door Fan cover Housing Lower filter cover Heat Pump Dryer Accessories (not shown) Drain hose Power cord Water tank Documentation (not shown) Inner barrel Instruction manual Front door... -
Page 9: Installation
Installation Important notes regarding installation • Do NOT install the appliance: : behind a lockable door, sliding door or a door with a hinge on the opposite side of the dryer, in such a way that a full opening of the tumble dryer door is restricted : in a tight fitting cabinet, the appliance must not be built in : in an area where it will be exposed to temperatures below freezing. - Page 10 Installation (Cont.) Levelling the machine WARNING! It is very important to level the dryer carefully, especially if your floor is uneven. Failure to do so may result in the machine shaking and moving, or out-of-balance problems. Levelling the appliance The appliance must be installed level, otherwise its operation will be impaired. When you have placed the dryer in its permanent position, press on the top frame (in both directions) to ensure the appliance is level: it should not shake or wobble.
- Page 11 Installation (Cont.) Earthing WARNING: This is a Category I electrical product which must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug.
-
Page 12: Instructions
Instructions Before each drying Checking the machine Make sure you have read all safety precautions in this manual and are aware of the items (listed on page 6) that cause a hazard if placed in the clothes dryer. The clothes dryer is intended only for drying textile material that has been washed in water and well spin-dried. - Page 13 Instructions (Cont.) Preparing the drying load Easy care items such as • The laundry must be thoroughly spun before tumble drying. shirts should be briefly pre-spun before drying. • To avoid a static charge when drying is completed, use either a fabric softener when you are washing the laundry or a fabric conditioner specifically for tumble dryers.
- Page 14 Instructions (Cont.) Control panel Cotton Synthetic Bulky Items • • • • • • • • • • • • • • Mixed Sportswear Towels Shirts Denim Duvet Quick Dry Refresh Delicate Step-by-step guide to using the dryer 1. Program Dial: Decide on a program according to the texture and weight of your drying load (please refer to the table on page 15 for details about the drying programs).
- Page 15 Instructions (Cont.) Table 1: Drying programs Default Max. time Program load Drying application / properties (hr:min) (kg) (A) (B) Cotton 2:00 Cotton clothing and other cotton items Clothing and other items made of synthetic Synthetic 1:20 fibres Everyday clothing and other items made of Mixed 1:30 mixed/blended fabrics...
- Page 16 Instructions (Cont.) Program options Child lock The heat pump dryer is equipped with a child lock which locks the buttons to prevent unauthorised access to the controls while the machine is running. To set the child lock, press the ON/OFF button, and select the desired program. Press the START/PAUSE button, and then press and hold the Anti-crease and Dry Level buttons for several seconds.
- Page 17 Instructions (Cont.) Trial run In order to remove any dust and grease, which may be in the drum from the manufacture and transportation processes, we recommend you run the dryer with some clean, damp rags before using it for the first time with your laundry. Make sure the dryer is properly installed, plugged in and power is supplied.
- Page 18 Instructions (Cont.) a program (f) Pausing To pause the drying process, press the Start/Pause button or open the door while the program is running. To restart the program, press the Start/Pause button once again. Modifying a program To change a program which is running, first pause or cancel it using the Start/ Pause button or the ON/OFF button.
- Page 19 Instructions (Cont.) CAUTION! • To avoid scalding and creating a fire risk, do not stop the clothes dryer before the end of the drying cycle, as parts of the appliance may get hot during use. • If you must remove items during the drying cycle, open the door, remove the items quickly and spread them out so that the heat is dissipated.
-
Page 20: Faqs And Troubleshooting Guide
FAQs and Troubleshooting Guide Troubleshooting guide If your heat pump dryer has a fault, is not working properly, or you think it should work better, please use the list below to identify and solve any problems. If you cannot solve the problem, switch off the dryer and unplug it from the power supply. - Page 21 FAQs and Troubleshooting Guide (Cont.) Table 2: Troubleshooting guide Problem Possible cause Solution There are Heavy, wet clothes tumbling in the These noises are normal. Make some strange drum can cause bumping noises sure your drying load is properly noises. when the drum is turning.
-
Page 22: Other Useful Information
Other Useful Information Cleaning and maintenance Keeping your heat pump dryer in good, clean condition will prolong its service life. WARNING! • Before cleaning or maintaining any part of the dryer, make sure it has cooled down and is unplugged from the power supply. •... - Page 23 Other Useful Information (Cont.) Cleaning the lint filter Fig. 5 To remove the filter, open the door to the clothes dryer (Fig. 5a) grip the lint filter and pull it straight up and out of the drum (Fig. 5b). Open the filter (Fig 5c), then remove any lint, fibres and textile threads from the filter by hand or with a soft piece of cloth (Fig.
- Page 24 Other Useful Information (Cont.) WARNING: Do not drink the condensate water. Do not use the dryer without the water container. Cleaning the filter drawer Lint and fibres that could not be captured by the lint filter are blocked in the filter drawer, which should be cleaned after each drying process. It is located behind the maintenance cover and contains a two-level filter: a filter drawer sponge and a filter cloth.
- Page 25 Other Useful Information (Cont.) Storage If you are not going to use the appliance for an extended period of time, unplug it and store it upright in the original packaging to protect it from dust. Store the unit in a dry place, out of children’s reach.
- Page 26 Other Useful Information (Cont.) Responsible disposal Packaging materials are recyclable. Please dispose of them responsibly for recycling. At the end of its working life, make the appliance unserviceable by unplugging it from the power outlet and cutting the power cord. Do not throw this appliance out with your household waste.
- Page 27 This page has been left blank intentionally. After Sales Support 1300 886 649 | tempo.org/support...
- Page 28 This page has been left blank intentionally. After Sales Support 1300 886 649 | tempo.org/support...
- Page 29 This page has been left blank intentionally. After Sales Support 1300 886 649 | tempo.org/support...
- Page 30 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on 1300 886 649 for advice.
Need help?
Do you have a question about the ON-HPD8W and is the answer not in the manual?
Questions and answers
Not drying towels - doesn’t warm up. Has worked brilliantly but last night I put towels in and they were still wet after two hours and the drum was only warm not hot as before. Tried again this morning with similar result
The Onix ON-HPD8W may not be drying towels properly and only warming them up due to several possible reasons:
1. Incorrect Program Selection – If the wrong drying program is selected, such as a low-heat or refresh cycle, it may not provide enough heat to fully dry towels.
2. Overloading – If too many towels are placed in the dryer, airflow may be restricted, leading to inefficient drying.
3. Blocked Lint Filter – A clogged lint filter can reduce airflow, preventing proper drying. Cleaning the filter before each use can help maintain performance.
4. Condensed Water Tank Full – If the water tank is full and not draining properly, the dryer may not function efficiently. Emptying the tank or ensuring proper drainage can help.
5. Insufficient Heat Pump Efficiency – Heat pump dryers operate at lower temperatures compared to traditional vented dryers. If towels are very thick or absorbent, they may require a longer drying cycle.
Checking these factors can help improve drying performance.
