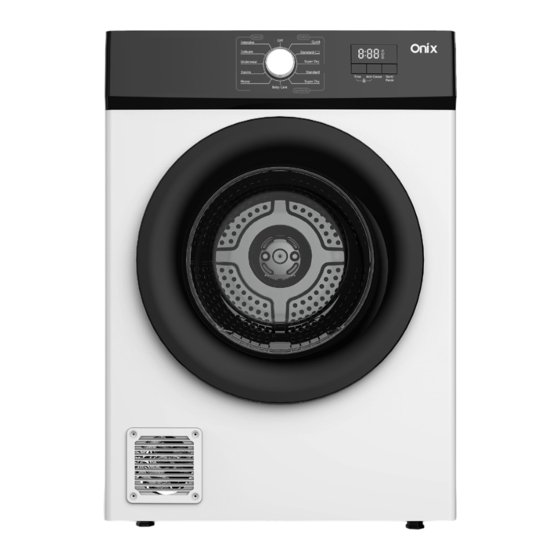

- Page 1 8 kg Vented Clothes Dryer Model Number ON-VD8W INSTRUCTION MANUAL AFTER SALES SUPPO RT 1300 886 649 E209...
-
Page 2: Table Of Contents
Contents General Safety Instructions Unpacking Product Overview Installation Instructions FAQs and Troubleshooting Guide Other Useful Information AFTER SALES SUPPORT 1300 886 649... -
Page 3: General Safety Instructions
General Safety Instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, the safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card and purchase receipt. - Page 4 General Safety Instructions (Cont.) Usage conditions and restrictions • Domestic use only: This appliance is intended for household use only. It is not suitable for commercial, industrial or trade use. Do not use it for anything other than its intended purpose (drying domestic quantities of washing), and only use it as described in this manual.
- Page 5 General Safety Instructions (Cont.) • Service/repair: Except for the filters that require cleaning, this appliance contains no user-serviceable parts inside. Do not attempt to open, disassemble or repair it your- self; only have it serviced by qualified personnel, call our after sales support centre. The appliance should not be tilted or turned sideways during use or maintenance.
- Page 6 General Safety Instructions (Cont.) CAUTION! • Do not use the tumble dryer if industrial chemicals have been used for cleaning. • Do not dry unwashed items in the tumble dryer. • Do not allow lint to accumulate around the tumble dryer. Clean the filter after every use. •...
-
Page 7: Unpacking
Unpacking Unpacking the clothes dryer CAUTION: EXTREMELY HEAVY! A team lift or mechanical aid is required when moving this appliance. Keep the appliance as upright as possible during transportation. • This product has been packaged to protect it against transportation damage. Remove all packaging materials from around the appliance and inside the drum, including the foam base. -
Page 8: Product Overview
Product Overview Scope of delivery Clothes dryer NOTE: Due to continued product improvement, images Control panel and illustrations in this manual may vary slightly from Viewing window the product purchased. All images in this manual are Front housing for reference purposes only. Parts are not necessarily Lint filter (inside door) pictured to scale. - Page 9 Product Overview (Cont.) Scope of delivery (cont.) Rear view Thermostat reset button Documentation (not shown) Instruction manual Warranty certificate AFTER SALES SUPPORT 1300 886 649...
-
Page 10: Installation
Installation Freestanding, floor level installation Fig. 1 • Make sure the floor surface is firm, flat, dry and stable, >200 mm and there is an appropriate wall outlet nearby. Do not place the appliance on soft material such as foam, plastic or carpet, as this may block the air intake. - Page 11 Installation (Cont.) Ventilation Whilst drying, the tumble dryer is expected to vent a large amount of warm, moist air, which should be removed from the room as quickly as possible to prevent condensation. Place the dryer in an extremely well-ventilated room, or close to an open window, to allow the moist air to exit freely.
- Page 12 Installation (Cont.) CAUTION! Make sure you read all safety precautions in this manual and are aware of the items (listed on page 5) that may NOT be placed in a clothes dryer as they cause a hazard. Preparing the load •...
-
Page 13: Instructions
Instructions • CAUTION: Do not overload the dryer: the maximum amount of dry textile material that can be dried in one load is 8.0 kg (see the table below for some reference weights). Keep in mind, though, that drying requires space for the clothes to circulate. - Page 14 Instructions (Cont.) Step-by-step guide to using the dryer 1. Program: Decide on a program according to the texture and weight of your drying load (please refer to the table on pages 17 for details about the drying programs). If the “Start/Pause“ button is not selected within 2 minutes, the machine will go in to a sleep state.
- Page 15 Instructions (Cont.) Program Options Automatically Controlled Drying This appliance can automatically detect the moisture in the load, and adjust the drying time for optimal drying. Simply select the program according to the textiles being dried. Time Controlled Drying To operate time controlled drying, turn the dial to the most suitable program for your clothing type, then press the time button to override time to 30, 50, 70 or 90 minutes of drying.
- Page 16 Instructions (Cont.) Drying programs Default Program Drying Time Type of Textiles (min) Suitable for a small load of everyday Cotton Quick clothing and other items made of cotton fabric . Everyday clothing and other items Cotton Standard (A) made of cotton fabric. Everyday clothing and other items Cotton Super Dry made of cotton fabric.
- Page 17 Instructions (Cont.) At the end of the program • At the end of each program, the appliance enters a cool-down phase during which cold air is circulated around the drum. This will ensure items are left at a temperature that will not damage them. •...
-
Page 18: Faqs And Troubleshooting Guide
FAQs and Troubleshooting Guide Troubleshooting guide If your clothes dryer has a fault, is not working properly, or you think it should work better, please use the list below to identify and solve any problems. If you cannot solve the problem, switch off the dryer and unplug it from the power supply. - Page 19 FAQs and Troubleshooting Guide (Cont.) Problem Possible cause Solution Drying process Is there not enough laundry in the Wait until a fuller load can be stops soon dryer? added to the dryer. after starting; Is the washing too dry for the Select a higher drying level.
-
Page 20: Other Useful Information
Other Useful Information Cleaning and maintenance Keeping your clothes dryer in good, clean condition will prolong its service life. WARNING! • Before cleaning or maintaining any part of the dryer, make sure it has cooled down and is unplugged from the power supply. •... - Page 21 Other Useful Information (Cont.) Cleaning the cabinet and drum • Use a soft, dry or damp cloth to wipe the dryer cabinet and/or the drum. • If using a damp cloth, make sure it is not too wet. Leave the appliance door open after cleaning to ensure the drum can air-dry completely.
- Page 22 This pge has been left blank intentionally. AFTER SALES SUPPORT 1300 886 649...
- Page 23 Other Useful Information (Cont.) Technical specifications Product 8 kg Vented Clothes Dryer Model Number ON-VD8W Rated capacity 8 kg Voltage & Frequency 220-240 V~ 50 Hz Rated Power 2000 W Ingress Protection IPX4 Dimensions (approx.) 598 (W) x 555 (D) x 845 (H) mm Net Weight (approx.)
- Page 24 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on 1300 886 649.
