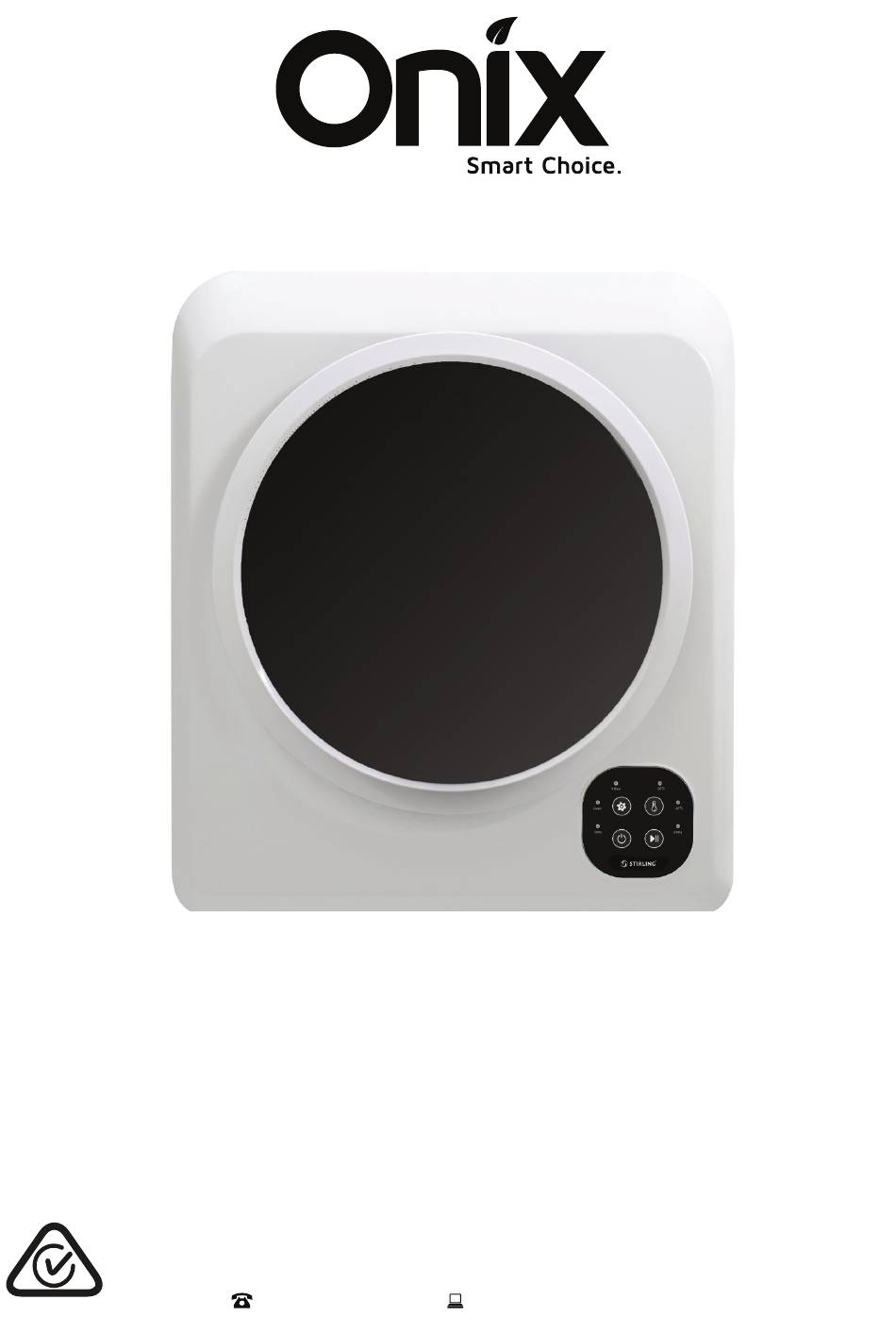

- Page 1 6 kg Vented Dryer USER MANUAL Model Number ON-VD6W After Sales Support 1300 886 649 | tempo.org/support...
-
Page 2: Table Of Contents
Contents General Safety Instructions Product Overview Installation Getting Started Instructions FAQs and Troubleshooting Guide Other Useful Information After Sales Support (AU) 1300 886 649 (NZ) 0800 836 761 | tempo.org/support... -
Page 3: General Safety Instructions
General Safety Instructions IMPORTANT! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, the safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card and purchase receipt. -
Page 4: Usage Conditions And Restrictions
General Safety Instructions (Cont.) Usage conditions and restrictions • Domestic use only: This appliance is intended for household use only. It is not suitable for commercial, industrial or trade use. Do not use it for anything other than its intended purpose (drying domestic quantities of washing), and only use it as described in this manual. - Page 5 General Safety Instructions (Cont.) • Lint filter: WARNING! The lint filter must be in place when drying. It must be cleaned before or after each use. • Service/repair: Except for the filters that require cleaning, this appliance contains no user-serviceable parts inside. Do not attempt to open, disassemble or repair it your- self;...
- Page 6 General Safety Instructions (Cont.) CAUTION! • Do not use the tumble dryer if industrial chemicals have been used for cleaning. • Do not dry unwashed items in the tumble dryer. • Do not allow lint to accumulate around the tumble dryer. Clean the filter after every use. •...
-
Page 7: Product Overview
Product Overview Scope of delivery Front view Clothes dryer Door lock Viewing window Front housing Lint filter 2- 正置 Drying drum Air intake filter Control panel POWER button EXTRA program indicator SMART program indicator 1 HOUR program indicator PROGRAM button TEMPERATURE button 60°C temperature indicator 40°C temperature indicator... -
Page 8: Installation Hardware
Product Overview (Cont.) Rear view Rear housing Exhaust vent connection 10 Ventilation slots 11 Power cord and plug 12 Adjustable feet (4) 13 Exhaust vent Installation hardware 14 Hanging brackets (2) 15 M6x60 mm expansion bolts (4) (for solid walls) 16 Plastic spacers (2) Documentation Also supplied but not shown:... -
Page 9: Installation
Installation Unpacking • This product has been packaged to protect it against transportation damage. Remove all packaging materials from around and inside the appliance and keep the packaging materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. -
Page 10: Wall-Mounted Installation
Installation (Cont.) Wall-mounted installation CAUTION! This appliance is heavy. Ensure you have at least one helper to move and install it. Move cautiously when moving the dryer. Do not grasp any salient parts of the machine. Do not attempt to lift it by the door. WARNING! Ensure the dryer is unplugged from the power supply before installation. - Page 11 Installation (Cont.) Wall-mounting to a plasterboard wall 1. If mounting to a plasterboard wall and the space between two timber studs is too wide, fit a timber slat between the studs to mount the brackets securely onto the studs (Fig. 2). Fig.
-
Page 12: Upside-Down Installation
Installation (Cont.) Attaching the exhaust vent and spacers 1. The exhaust vent can be installed to point upwards or sideways (Fig. 3). Use the small screws (supplied in a bag inside the vent) to affix it to the back of the dryer. Fig. -
Page 13: Rack-Mounted Installation
Installation (Cont.) Rack-mounted installation • If the clothes dryer is to be rack-mounted, you will need a secure bracket (not supplied) to ensure stability and prevent vibration (Fig. 6). • Make sure to leave at least 13 cm space between the dryer and any wall(s). •... -
Page 14: Getting Started
Getting Started Quick start guide The pictorial quick start guide below only contains basic information. For detailed operating instructions, please read the corresponding content on the following pages. Please ensure the dryer is properly and securely installed before using it. Preparation 2- 正置... -
Page 15: Instructions
Instructions CAUTION! Make sure you read all safety precautions in this manual and are aware of the items (listed on page 5) that may NOT be placed in a clothes dryer as they cause a hazard. Loading the dryer • Prior to loading the dryer, check that none of the items have the following symbols anywhere on them, which indicate that items are UNSUITABLE for clothes drying (Fig. - Page 16 Instructions (Cont.) Control panel The control panel at the front of the clothes dryer 2- 正置 Fig. 9 has four buttons and six indicators (Fig. 9). Power button Press the POWER button to turn on the dryer. When the dryer is on, press the POWER button to set it to standby.
-
Page 17: Start/Pause Button
Instructions (Cont.) Start/pause button • Press the START/PAUSE button to start operation. The dryer will start after two seconds. • During operation, press the START/PAUSE button to pause the dryer, for example, to add an item or to remove one. CAUTION: When pausing the dryer and opening the door, beware of hot surfaces and hot steam escaping. -
Page 18: Faqs And Troubleshooting Guide
FAQs and Troubleshooting Guide Troubleshooting guide If your clothes dryer has a fault, is not working properly, or you think it should work better, use the list below to identify and solve any problems. If you cannot solve the problem, switch off the dryer and unplug it from the power supply. -
Page 19: Safety Reset
FAQs and Troubleshooting Guide (Cont.) Safety reset The dryer has a safety cut-out switch, which shuts down the power supply to the unit if the temperature inside the unit is too high. Should you notice that this has happened, proceed as follows: •... -
Page 20: Other Useful Information
Other Useful Information Cleaning and maintenance Keeping your clothes dryer in good, clean condition will prolong its service life. WARNING! • Before cleaning or maintaining any part of the dryer, make sure it has cooled down and is unplugged from the power supply. •... - Page 21 Other Useful Information (Cont.) Cleaning the air intake filter • The air intake filter at the front of the unit should be cleaned about once a month. • To remove the air intake filter, grip it by its sides and pull it off the front panel, lightly pushing the filter upwards with your thumb until the latch hook disconnects (Fig.
- Page 22 Other Useful Information (Cont.) Storage If you are not going to use the appliance for an extended period of time, unplug it and store it upright in the original packaging to protect it from dust. Store the unit in a dry place, out of children’s reach.
-
Page 23: Technical Specifications
Other Useful Information (Cont.) Technical specifications Product 6 kg Vented Dryer Model Number ON-VD6W Rated capacity 6 kg Voltage & Frequency 220-240 V~ 50–60 Hz Rated Power 1500 W Ingress Protection IPX4 Dimensions (approx.) 595 (W) x 525 (D) x 700 (H) mm Net Weight approx. -
Page 24: Warranty & Returns
Please read the manual It will help you get the best out of your product. Still have questions? Call after sales support 1300 112 534 1300 886 649 Or visit www.tempo.org Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.
