KINETICO PREFILTERS
SERIE B / BP / BPT
1 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kinetico B Series

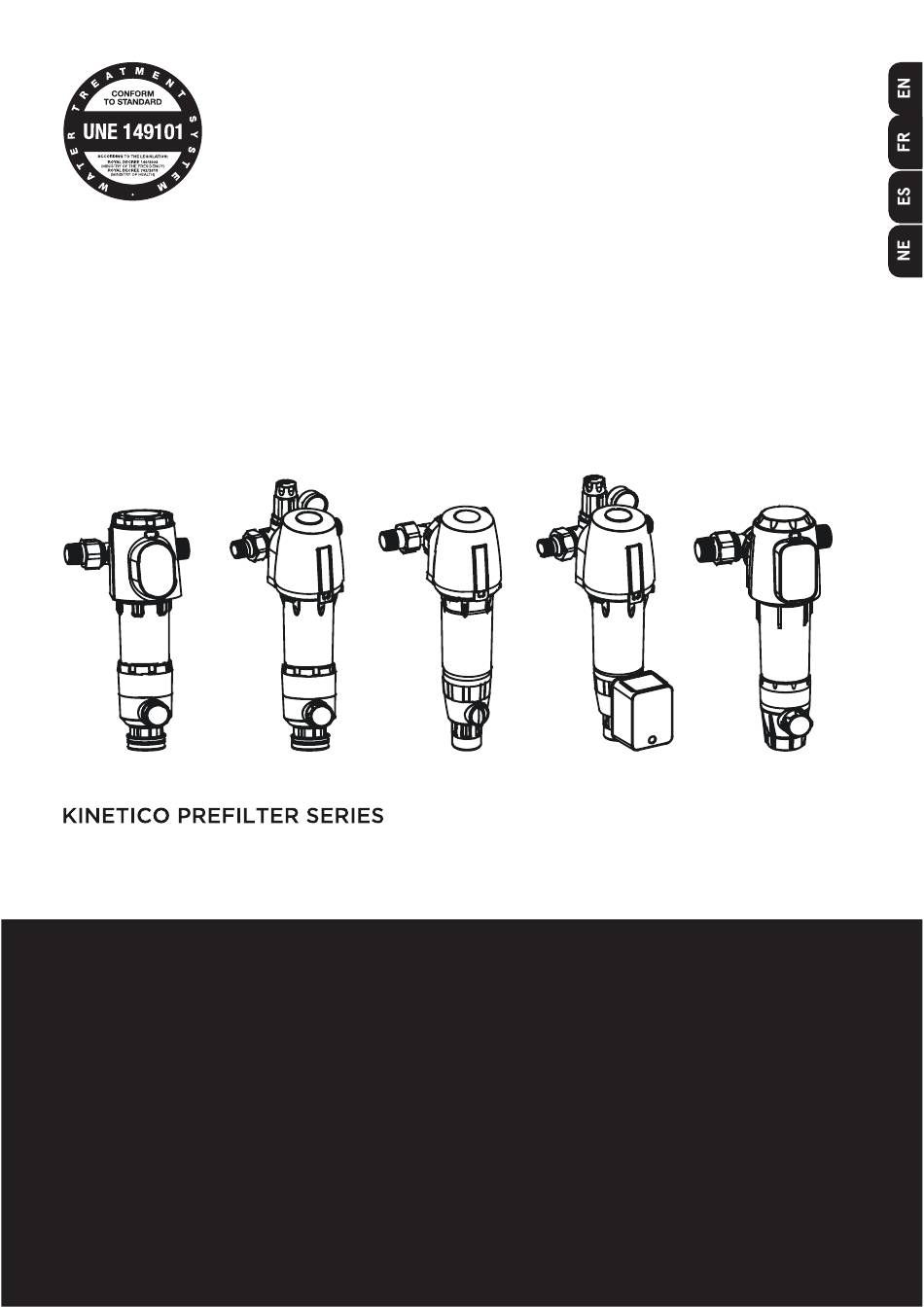

  • Page 1 DATA SHEET / OWNERS MANUAL KINETICO PREFILTERS SERIE B / BP / BPT...
  • Page 3: Table Of Contents

    INDEX Specification Package contents Service Ring Pressure Reducing Valve lnstallation Start Up and Service Maintenance Automatic Flush Controller Troubleshooting Maintenance service...
  • Page 4: Specification

    1. SPECIFICATION PRODUCT MODEL KF-B 3/4” KF-B 1” KF-BP 1” KF-B 1 1/4” KF-BPT 1 1/4” Filter Mesh 40 μm 40 μm 40 μm 40 μm 40 μm Connection Thread 3/4”or 1” 3/4”or 1” 3/4”or 1” 1 ”or 1/4” 1 ”or 1/4” Rated Flow Rate 3 m³/h 4 m³/h...
  • Page 5 EXPLODED VIEWS KF-B 3/4” KF-B 1” KF-BP 1” KF-B 1 1/4” KF-BPT 1 1/4”...
  • Page 6: Service Ring

    3. SERVICE RING Note: ensure the water equipment are all closed befare you start to adjust the pressure reducing valve, in the process of adjusting outlet pressu- When the process of flushing filter is completed, set re, drainage ball valve need to be open&close man y the number on service ring to the current month as a times, observe the oulet pressure gauge when the ball reminder by mea ns of rotating the service ring on top.
  • Page 7: Start Up And Service

    EXAMPLE OF E-SERIES EXAMPLE OF L-SERIES clean the filter screen and filter housing. 4. According to different water quality, it is required to flush the pre-filter once per month at least and flush pre-filter f0r more than 30 seconds. 5. As the pre-filter is continuously used for 8~ 12 mon- ths, the filter screen may require to be dismantled and clean.
  • Page 8: Automatic Flush Controller

    sembly, then clean the contamination on top screen 1. lt is suggested to dismantle and clean the filter screen cover and filter screen assembly. (Pic.3) assembly if the contamination can not be removed by the process of normal scape or flush cleaning. 5.
  • Page 9 8.2. Controller dimension 8.3. Controller specification PRODUCT MODEL BPT - Controller Power supply (Battery): Three AA Size Dry Batteries Power supply (Adaptor): Input 100~ 240V AC 50/60Hz Output SV DC 1 A Ambient Temperature: 5~40 C Flush Duration Setting: 15s/30s/45s/60s/90s Flush lnterval Setting: 1~99 Days Auto Setting:...
  • Page 10: Troubleshooting

    9. TROUBLESHOOTING PROBLEM POSSIBLE CAUSES POSSIBLE SOLUTION No Product Water 1. Water supply is shut off. 1. Wait water supply restore. 2.lnlet valve is not open. 2. 0pen the inlet valve. Not Enough Product 1. lnlet valve is not fully open. 1.
  • Page 13: Maintenance Service

    MAINTENANCE SERVICE DATE SERVICE TYPE NAME, SIGNATURE AND STAMP OF AUTHORISED TECHNICIAN INITIAL OPERATION MAINTENANCE COMPLETE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZING EXTRAORDINARY OTHERS WARRANTY MAINTENANCE COMPLETE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZING EXTRAORDINARY OTHERS WARRANTY MAINTENANCE COMPLETE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZING EXTRAORDINARY OTHERS...
  • Page 14 MAINTENANCE SERVICE DATE SERVICE TYPE NAME, SIGNATURE AND STAMP OF AUTHORISED TECHNICIAN INITIAL OPERATION MAINTENANCE COMPLETE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZING EXTRAORDINARY OTHERS WARRANTY MAINTENANCE COMPLETE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZING EXTRAORDINARY OTHERS WARRANTY MAINTENANCE COMPLETE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZING EXTRAORDINARY OTHERS...
  • Page 15 MAINTENANCE SERVICE DATE SERVICE TYPE NAME, SIGNATURE AND STAMP OF AUTHORISED TECHNICIAN INITIAL OPERATION MAINTENANCE COMPLETE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZING EXTRAORDINARY OTHERS WARRANTY MAINTENANCE COMPLETE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZING EXTRAORDINARY OTHERS WARRANTY MAINTENANCE COMPLETE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZING EXTRAORDINARY OTHERS...
