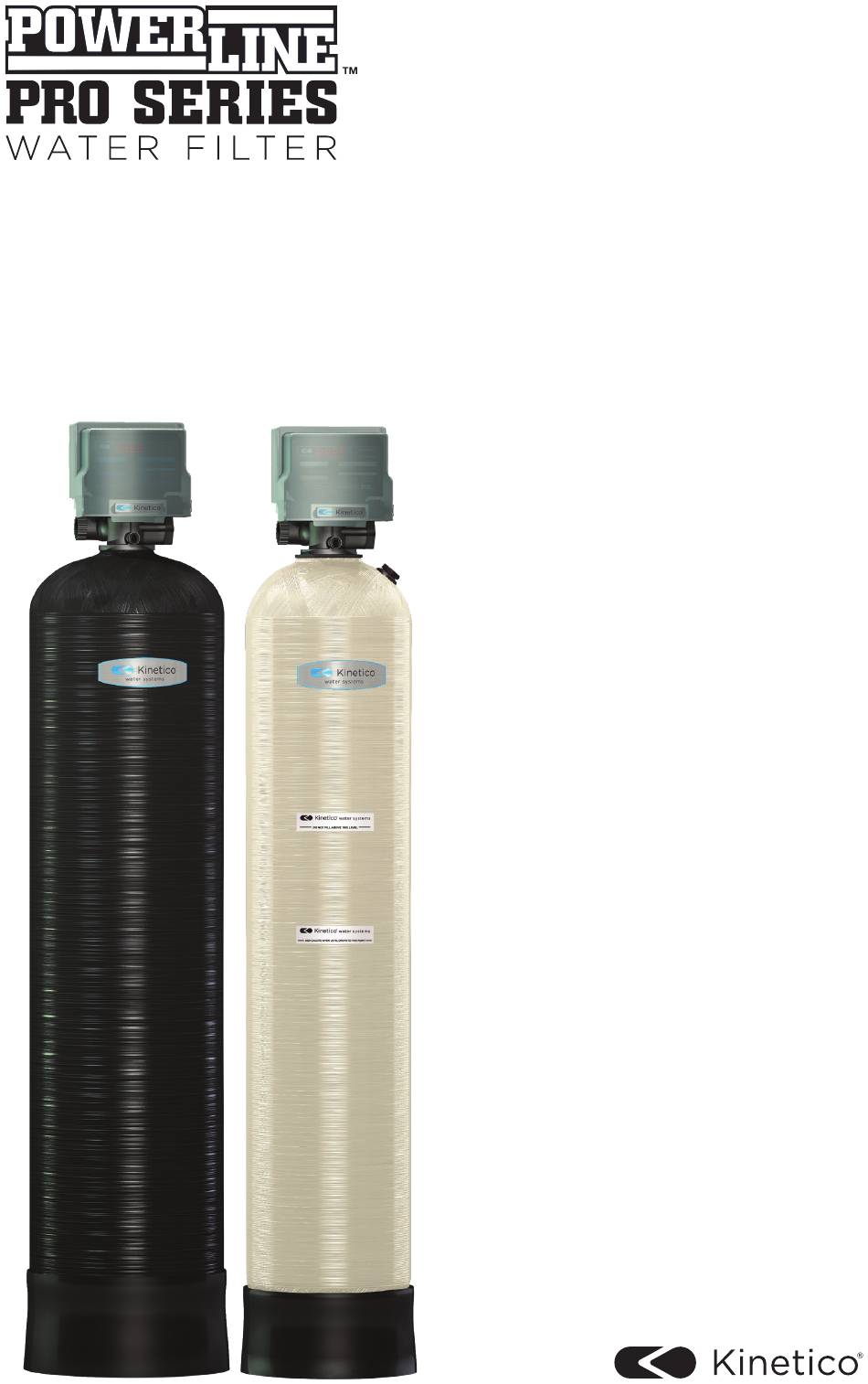

- Page 1 Powerline PRO Filters Owner’s Manual Model/Product Numbers: PRO 1040FD (17208) PRO 0840F (17210) PRO 1248FD (17209) PRO 1040F (17211) PRO 1248F (17212) PRO 1354F (17213)
-
Page 2: Table Of Contents
©2019 Kinetico Incorporated “Kinetico” and the Kinetico logo are registered trademarks in the United States, other countries or both, of Kinetico Incorporated, Newbury, Ohio. -
Page 3: Product Overview
Powerline PRO Filter Product Overview The Kinetico Powerline PRO Filter can be configured to solve several different difficult water problems. Powerline PRO Calcite Systems are designed to increase your pH and alkalinity. Powerline PRO Carbon Systems are designed to remove chlorine and unpleasant tastes and odors. -
Page 4: System Cycles
System Cycles Service Untreated water enters the control valve and is fed down through the filtration media, and through the lower distributor basket. It then runs up the center riser tube and back out through the clean water portions of the valve. Backwash Water is passed upflow through the media to expand the media and release the contaminants and to send them to drain. -
Page 5: System Maintenance And Install Guidelines
IMMEDIATELY. Media Filter media requires periodic replacement or replenishment. Contact your authorized Kinetico Dealer for additional details. CAUTION • Do not exceed water pressure of 125 psi. • Do not exceed water temperature of 110°F. -
Page 6: Set-Up Procedures
Set-up Procedures System Adjustments Using Push Button/Display Interface NOTE: Changing any setting could affect the operation of your system. Consult your local Dealer before making any adjustments Main Menu MENU / ENTER 12:00 BUTTON SET / CHANGE BUTTON 1. To enter Main Menu, press the Menu/Enter button. (Time of Day will flash.) 2. - Page 7 To confirm that the battery is working, press either button, and the display will turn on for five (5) seconds. • If power failure occurs while system is backwashing, the Kinetico Powerline PRO Filter will motor to a shut off position to prevent constant flow to drain.
- Page 8 Backwash Cycle (NOTE: These may need to be adjusted based on application.) Step Common Cycle Step Times Minutes Step 1 Backwash Step 2 Rest Step 3 Rapid Rinse NOTE: Depending on system pressure and other factors, it is possible to observe flow to drain in the rest cycle.
-
Page 9: Troubleshooting
Powerline PRO Filter Troubleshooting Guides Symptom Probable Cause Correction Power supply plugged into Connect to constant power source intermittent or dead power source Improper control valve 1. Fails to Backwash Reset program settings programming Automatically Defective power supply Replace power supply Defective drive motor Replace motor (contact Dealer) Time of day improperly set, due to... - Page 10 Error Codes There are five (5) error codes that could indicate a possible problem with the control valve: Error 2 - Homing slot expected. Valve will start looking for home. (Normal operation continues) The following error messages indicate the valve requires service to continue: Error 3 - Encoder is not sending a signal Error 4 - Unable to find homing slot...
- Page 11 Powerline PRO Filter Notes: ____________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________ __________________________________________________...
- Page 12 Kinetico makes an entire line of water treatment products designed to handle almost any water problem. For more information, contact your authorized Kinetico Dealer or visit our website at www.kinetico.com. Like Us and Follow Us Find us on Facebook and Twitter to share your story. How has your water...
