Tech Manual

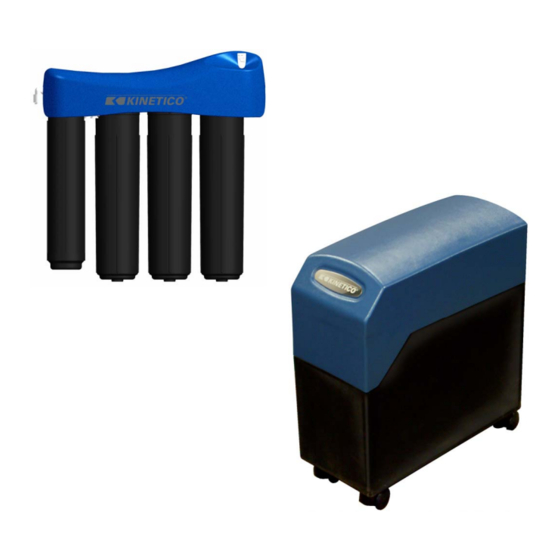

TQ Series RO Systems
Models:
TQ 172
TQ 172N
TQ 173
TQ 173N
TQ 174
TQ 176

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TQ 172 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kinetico TQ 172

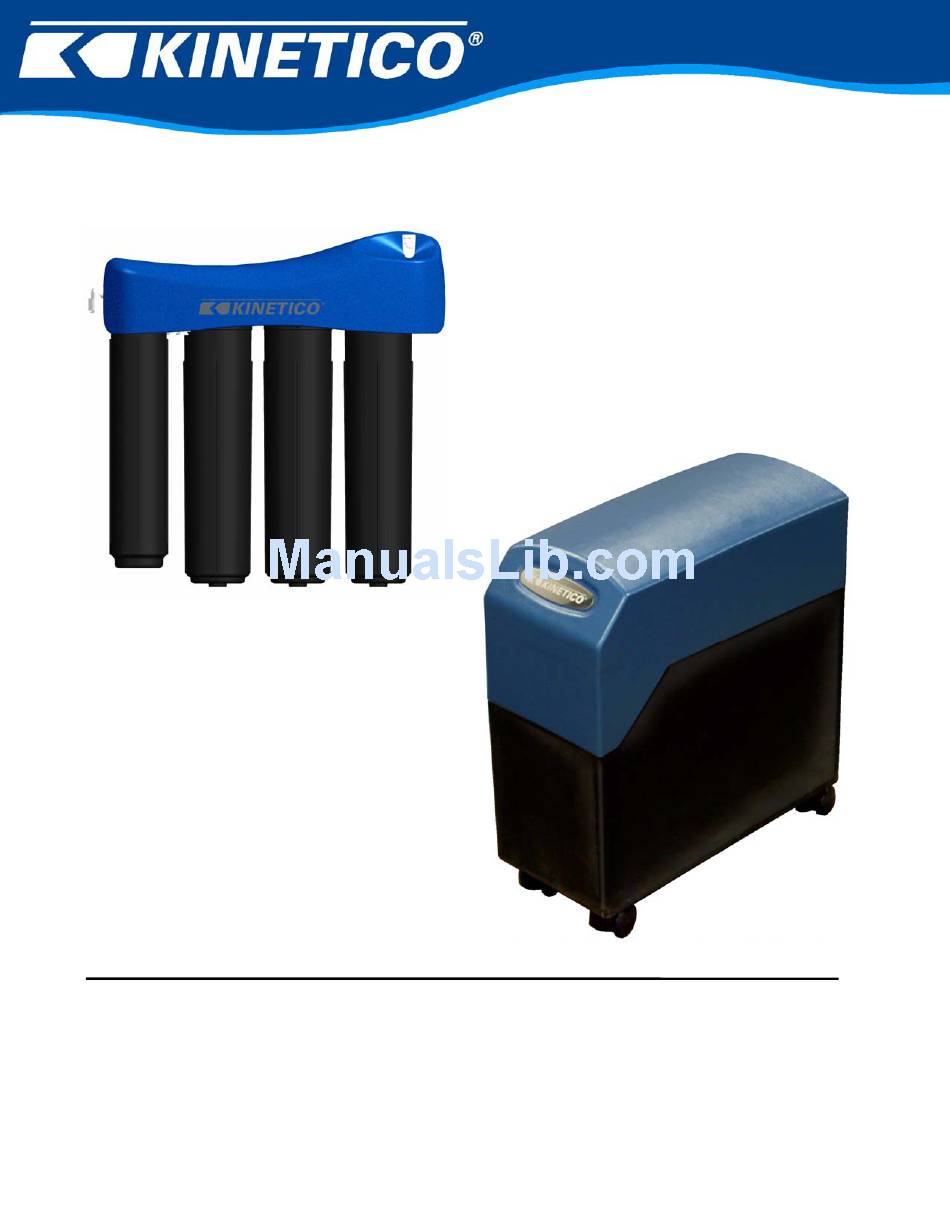

  • Page 1 Tech Manual TQ Series RO Systems Models: TQ 172 TQ 172N TQ 173 TQ 173N TQ 174 TQ 176...
  • Page 2: Table Of Contents

    ABLE OF ONTENTS 1.0 General Information About this Manual ........................3 The Kinetico TQ Series Product Line...................4 System Sizing TQ 172 / 173 ......................5 System Sizing TQ 174 / 176 ......................7 2.0 Equipment Specifications System Configuration........................9 System Accessories........................10 Operating Specifications ......................12 Component Functionality TQ 172 / 173 ..................13...
  • Page 3: General Information

    TQ Series Technical Manual About this Manual This manual will cover information needed for the proper installation and operation of your Kinetico TQ Series Commercial Reverse Osmosis System. We have also included information regarding the frequently asked questions about reverse osmosis systems. This information may be more technical in nature, but provides further insight to the continued operation of this equipment to its highest standards.
  • Page 4: The Kinetico Tq Series Product Line

    The reverse osmosis product line is designed to provide high quality reverse osmosis water using line pressure to operate all system features for the TQ 172 and TQ 173. The TQ 174 and TQ 176 use a pump to boost pressure to the system. Both the electric and non-electric versions are designed to allow the unit to be installed domestically and internationally, regardless of electrical requirements.
  • Page 5: System Sizing Tq 172 / 173

    * Based on feed TDS of 500 mg/l and a water temperature of 77 System Sizing TQ 172 / 173 In the application of the TQ 172 / 173 Series wall mount systems, three important site variables must be taken into account:...
  • Page 6 TQ Series Technical Manual TQ172 TQ172 Reverse Osmosis System Nanofiltration System Compensated Inlet Pressure Compensated Inlet Pressure 40 psi 50 psi 60 psi 70 psi 80 psi 40 psi 50 psi 60 psi 70 psi 80 psi 33 gpd 46 gpd 55 gpd 66 gpd 71 gpd...
  • Page 7: System Sizing Tq 174 / 176

    TQ Series Technical Manual System Sizing TQ 174 / 176 In the application of the TQ Series cabinet systems, two important site variables must be taken into account: Water Temperature Inlet Water Quality (TDS) TQ 174 Production Chart 75 psi feed pressure to atmospheric tank 1000 1500 2000...
  • Page 8 TQ Series Technical Manual 9.9.04 General Information Page 8 Rev. 5...
  • Page 9: Equipment Specifications

    The TQ Series Systems require prefiltered water for adequate TSS (total suspended solids) removal. Kinetico offers a wide range of backwashing filters using a variety of medias. Depending on the types of solids in the water, the appropriate media is matched for your application. Kinetico’s laboratory can test for the TSS content of feed water if it is not known to help determine the type of prefilter required.
  • Page 10: System Accessories

    QuickFlo Storage Tank  Kinetico specially manufactures the QuickFlo tank for operation with our membrane systems. The tank’s special design allows for the unit to be vented to atmosphere while water is being processed to the tank. This configuration provides no backpressure, and therefore maximizes the output production of the membrane system.
  • Page 11 TQ Series Technical Manual The chart below shows the storage capacity for pressurized storage tanks at various precharges. To determine this volume: Pressurized Storage Tank Capacity 1) Find the point on the horizontal axis at the bottom of the graph that represents the total pressure (air plus water) in the tank.
  • Page 12: Operating Specifications

    General operating parameters for the TQ product line have been listed in the table below. These specifications have been provided to express the required conditions for the operation of this system. If there are other parameters that you may be concerned about, please contact your local Kinetico Dealer for further operating or performance data.
  • Page 13: Component Functionality Tq 172 / 173

    TQ Series Technical Manual Component Functionality TQ 172 - 173 The TQ System is comprised of various components. A brief description has been provided for each of these major components. The illustration helps depict the physical location of these components on the TS system, while the flow schematic shows the flow path through the system.
  • Page 14 TQ Series Technical Manual Permeate Manifold The permeate manifold (Blue) uses 3/8” tubing to connect water from the permeate to a common bulkhead. Inlet Manifold The inlet manifold (Black) uses 3/8” tubing to connect water from the outlet of the filter cartridge to each membrane housing.
  • Page 15: Component Functionality Tq 174 / 176

    TQ Series Technical Manual Component Functionality TQ 174 - 176 The TQ System is comprised of various components. A brief description has been provided for each of these major components. The illustration helps depict the physical location of these components on the TS system, while the flow schematic shows the flow path through the system.
  • Page 16 TQ Series Technical Manual Membrane Housing/Membrane The cabinet houses four or six membrane housings. Four housings are used on the 174 and six on the 176. This allows a 174 to be upgraded to a 176 should the customer require the additional capacity. Membranes used are thin film composite.
  • Page 17 TQ Series Technical Manual Pressure Switch The inlet pressure switch is used to start the booster pump. It is preset and does not need to be adjusted. EverClean Rinse Each housing internally contains a permeate reservoir. During shut down modes, this water is used to flush the membranes, keeping them in optimal condition.
  • Page 18 TQ Series Technical Manual 9.9.04 Equipment Specifications Page 18 Rev. 5...
  • Page 19: Installation

    Water Pressure Water pressure to the TQ System will effect maximum flow permitted by the system. The TQ 172 – 173 systems will not operate if the inlet pressure fluctuates below a dynamic pressure of 40 psi. This minimum pressure must be maintained to the system at all times.
  • Page 20: Unpacking

    TQ Series Technical Manual Plastic Tube Cutter Phillips head screwdriver (medium and small) Additional 316 SS pressure gauges Unpacking Remove the TQ System and components from the shipping carton and check for damage. When handling the wall unit, pick it up by the metal frame. Lift the cabinet unit by lifting the cabinet.
  • Page 21: Operation And Maintenance

    TQ Series Technical Manual PERATION AND AINTENANCE Normal Operating Procedures During the normal operation of the TQ System, a few items are required to be checked daily. Routine upkeep with these items will maintain the operation of the TQ to its highest standards. Daily Start-up/Shutdown The equipment will run in an automatic mode, shutting itself off when the storage tank is full.
  • Page 22: Sanitization Of Storage Tank

    TQ Series Technical Manual -The unit has been shut down for an extended period of time (a few weeks). After completing these start-up procedures, the normal operating procedure should be followed. 1. Make sure the unit has been properly installed by reviewing the installation section.
  • Page 23: Sanitization Of Quickflo Tank

    A small, plastic, household funnel or the dropper provided in Kinetico’s sanitization kit may aid in adding solution to the cartridge. After adding solution to the cartridge, install cartridge to the prefilter head.
  • Page 24: Troubleshooting

    Membranes are fouled. Membranes fouled Check system log for history. If consistent declining production is found, clean membranes. Consult your Kinetico dealer for appropriate cleaning procedures and chemicals. Confirm proper system operating parameters. 9.9.04 Operation and Maintenance Page 24...
  • Page 25 TQ Series Technical Manual No accumulator tank A stable pressure signal is required for the unit to shut off properly. In some cases, only using tubing to connect the TQ unit to an atmospheric storage tank may not provide enough volume in the line to hold the pressure signal.
  • Page 26 TQ Series Technical Manual No reject water Plugged drain line or outlet Check and clean. Low flow rate at point of use Low water production See “No water or not enough water.” Tank lost air precharge Pump up air precharge to 7 psi. and check for cause of failure.
  • Page 27: Parts

    TQ Series Technical Manual ARTS Page 27 Parts 9.9.04 Rev. 5...
  • Page 28 TQ Series Technical Manual 9.9.04 Parts Page 28 Rev. 5...
  • Page 29 TQ Series Technical Manual Page 29 Parts 9.9.04 Rev. 5...
  • Page 30 TQ Series Technical Manual Parts TQ 174/176 See drawings following pages 9.9.04 Parts Page 30 Rev. 5...
  • Page 31: System Log

    TQ Series Technical Manual Page 31 Parts 9.9.04 Rev. 5...
  • Page 32 TQ Series Technical Manual 9.9.04 Parts Page 32 Rev. 5...
  • Page 33 TQ Series Technical Manual PARTS TQ Units Part # Description 172n 173n 10134 Bracket, TQ 172/173 11574 Bracket, TQ 174/176 10148 Cover, TQ 172/173 11561 Cabinet, TQ 174/176 Black 11578 Cover, TQ 174/176 10500 Module Asy-Plus TF75 10501 Membrane, TF75 GPD...
  • Page 34 TQ Series Technical Manual 9.9.04 Parts Page 34 Rev. 5...
  • Page 35 TQ Series Technical Manual YSTEM Page 35 System Log 09.9.04 Rev. 5...
  • Page 36 TQ Series Technical Manual TQ R EVERSE SMOSIS ERIES Manual part number: 10152B © Kinetico Incorporated, August 2004 9.9.04 System Log Page 36 Rev. 5...
