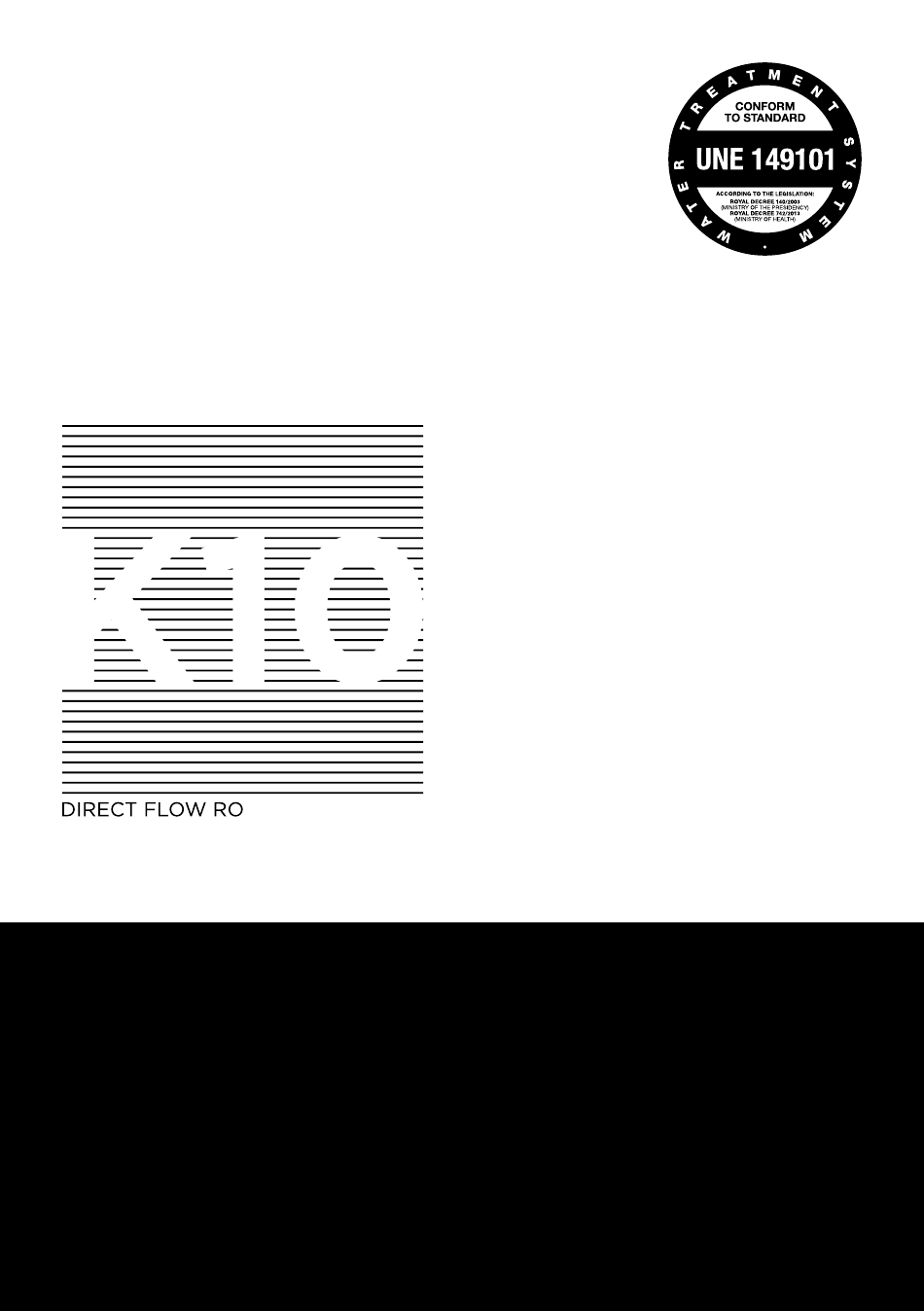

  • Page 1 INSTRUCTION MANUAL REVERSE OSMOSIS EQUIPMENTS...
  • Page 3 INDEX User Manual Technical Manual Sanitation Technical Sheet...

  • Page 4: Principal Characteristics

    USER MANUAL FOR REVERSE OSMOSIS EQUIPMENTS 0. PRINCIPAL CHARACTERISTICS CLICK ELECTRONIC ADAPTER QUICK AND HIGHLY SECURE CON- HIGHER SECURITY AND EFFICIENCY NECTIONS FILTER CONTROL DOUBLE FLOW AUTOMATIC HIGHER FLOW OF MAINTENANCE NOTICE DISPENSED WATER SOLENOID DIRECT VALVE ACCESS IMMEDIATE CONTROL EASE OF ACCESS SAFETY NET AND MAINTENANCE...

  • Page 5: Prior Warnings

    1. INTRODUCTION 3. PRIOR WARNINGS ATTENTION: Please read carefully the warnings Congratulations. You have acquired an excellent equip- described in the corresponding Technical Manual. ment for the treatment of water at home. This equipment will allow you to improve the qualities ATTENTION: This equipment does not PRODUCE of water.

  • Page 6: Basic Operation

    4. BASIC OPERATION The network water to be treated enters the equipment by going through the sediment and carbon filter. During this filtration step, suspended partices, chloride, its derivative and other organic substances are retained. The passage of the water into the interior of the equip- ment is controlled by a solenoid valve.
  • Page 7 7. IDENTIFICATION AND RESOLUTION OF PROBLEMS PROBLEM POSSIBLE CAUSE SOLUTION 1. External leakage. Multiple possible causes. Call the technical service. 2. No water is pro- 1. There is no supply of water. 1. Wait for the supply to come back. duced.

  • Page 8: Operational Limits

    TECHNICAL MANUAL FOR INVERSE OSMOSIS EQUIPMENT 1. PRINCIPAL CHARACTERISTICS APPLICATION Water treatment Reverse Osmosis Improves the characteristics of drinkable water (that complies with the requirements of EU Directive on water for human consumption 98/83 and its national transpositions in the various member states of the European Commu- nity).

  • Page 9: Start Up And Maintenance

    • We recommend that the water to be treated be de- • This equipment should not be installed laying down or at an- calcified or of a maximum hardness of 15 HF so as to gle (2), as the leakage detector would become disabled. obtain the best performance from the equipment.

  • Page 10: Installation

    ATTENTION: Make sure to properly dispose of any The most frequent place for the installation of the equi- plastic bags, keeping them out of the reach of pment is usually under the kitchen sink or in an atta- children as they can be dangerous for them. ched furniture.

  • Page 11: Installation Of Filters

    Hydraulic scheme 1/4” 1/4” � 3/8” 3/8” 3/8” 3/8” IN/FEED DRAIN • After commissioning, open the tap and with the co- rresponding meter of the parameter of interest, mea- sure in the water dispensed by the tap and slowly and progressively open the mixing valve until the desired parameter is achieved.
  • Page 12 5. START-UP ATTENTION: in case of detecting that the water dispensed does not comply with the national le- gislation in force, re-measure If the deviation 5.1. RINSING THE FILTERS persists, close the equipment’s input key, empty it through the tap, disconnect it electrically and contact •...
  • Page 13 ATTENTION: All consumables are served with an individual packaging specially designed to gua- rantee hygienic storage and transport conditions. Extreme hygienic precautions after removing consu- mables from their packaging and during handling of the different connectors and components. • Change filters properly. Ensure the tightness of the joints and the original hydraulic configuration of the system as recommended by the manufacturer.

  • Page 14: Sanitation Procedure

    SANITATION PROCEDURE 1. SANITATION ATTENTION: Extreme hygienic measures during the manipulation of filters, membrane and equi- pment components in contact with water. Wear dis- Necessary material: posable gloves or wash your hands as many times as necessary to avoid risk of contamination of the equi- •...
  • Page 15 • Once the assembly is installed, keep the new manual inlet valve closed and open the inlet valve connected to the wall adapter (7). The measuring cup must be empty. • Pour 0.25 liters of Oxygenated Water into the dosing vessel interspersed at the equipment inlet (8).
  • Page 16 • Pay special attention to sanitizing the tap pipe. Use the sanitizing spray (or alternatively, hydrogen peroxide, dosing it in such a way that it penetrates the tap) and single-use drying paper towels. Spray the spray on the tap nozzle (11), rub the spout and the tap nozzle with the disposable paper and do not touch it directly with your hands (12).

  • Page 18: Technical Characteristics

    TECHNICAL SHEET FOR REVERSE OSMOSIS EQUIPMENT 1. TECHNICAL CHARACTERISTICS APPLICATION Water treatment Reverse Osmosis Improves the characteristics of drinkable water (that complies with the requirements of EU Directive on water for human consumption 98/83 and its national transpositions in the various member states of the European Commu- nity).

  • Page 19: Hydraulic Scheme

    PPF1 1 x 5 micron sediment prefilter � IN � OUT CTO2 1 x Carbon Prefilter � IN � OUT 1 x RO 600 GPD Membrane � IN � OUT/PURE � WASTE Osmotized water flow: 1.58 l / min 1 x Carbon Block Postfilter CTO4 �...
  • Page 20 **** Flow rates can vary by 20% depending on the temperature, pressure and specific composition of the water to be treated. ***** May vary depending on the model. DISTRIBUTED BY: : WLG KINETICO Aiguafreda, 8 Pol. Ind. L’Ametlla Park 1. Drain 08480, L’Ametlla del Vallès 2.

  • Page 21: Operation Of The Equipment

    ELECTRIC SCHEME 2. OPERATION OF THE EQUIPMENT • The automatic flushing solenoid valve (Si F) opens to • The equipment incorporates a minimum pressure rinse the rejection and thus reduce the effect of natural switch to protect the pump from pressure drops in the osmosis and improve water quality, especially in the first network (LPS).

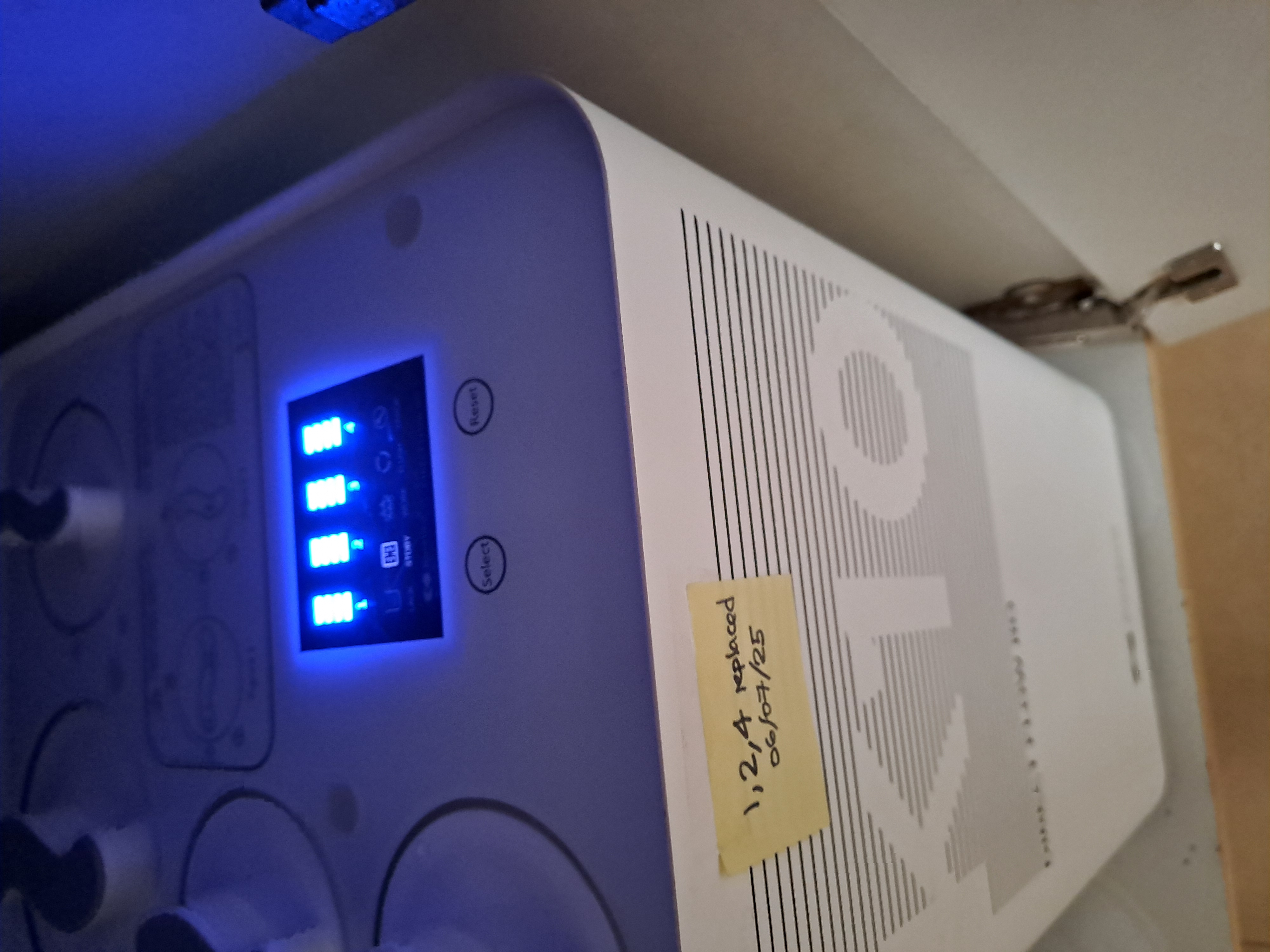

  • Page 22: How To Replace Filters

    2) Press “Select” to select the filter that needs a reset. 3.3. TYPES OF RINSE 1. On: When connected to power, the equipment will automatically rinse all filters for 30 seconds. 2.Forced: If the “Select” button is held down for 3 se- conds, the device will automatically rinse all filters for 18 seconds.
  • Page 23 3.6. HOW TO RESTART THE FILTER COUNTERS 1. Press and hold the “Reset” button for 3 seconds to access the filter reset menu. 2. Press “Select” to choose the filter you wish to reset. 3. Press and hold the “Reset” button for 3 seconds. Then a beep will sound, which means that the filter’s life time has been reset.

  • Page 24: Troubleshooting

    3.7. TROUBLESHOOTING PROBLEM POSSIBLE SOLUTIONS 1. The pump does not work, no water is produced A. There is no power supply. A. Turn on the power or wait for the supply to return. B. The transformer is damaged. B. Replace the transformer. C.
  • Page 25 E. The tap is defective. E. Repair or replace the tap. F. Repair or replace the flushing valve. F. No water comes out due to rejection. The flow restrictor is clogged. 5. Production water has high TDS A. Plugged prefilters. A.

  • Page 26: Warranty

    4. WARRANTY The distributor guarantees the equipment for a period of two years for issues with conformity that is detected during this period, pursuant to RD 1/2007 of 16 November (Consolidated text of the General Law for the Defense of Consumers and Users). ·...
  • Page 27 5. REGISTRATION SHEET NOTES FOR THE TECHNICIAN/INSTALLER: Read this Manual carefully. If you have any doubts, get in touch with the Te- chnical Assistance Service (T.A.S) of your distributor. The data market with (*) must be filled by the installing technical and transcribed in the WARRANTY SHEET.

  • Page 28: Maintenance & Service

    6. MAINTENANCE SERVICE DATE TYPE OF SERVICE NAME, SIGNATURE AND SEAL OF THE AUTHORIZED TECHNICIAN START-UP FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY EXTRAORDINARY SANITIZATION OTHERS WARRANTY TECHNICIAN FULL MAINTENANCE PREPARATION STAMP ORINARY EXTRAORDINARY SANITIZATION OTHERS WARRANTY TECHNICIAN FULL MAINTENANCE STAMP PREPARATION ORDINARY EXTRAORDINARY...
  • Page 29 6. MAINTENANCE SERVICE DATE TYPE OF SERVICE NAME, SIGNATURE AND SEAL OF THE AUTHORIZED TECHNICIAN START-UP FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION...
  • Page 30 6. MAINTENANCE SERVICE DATE TYPE OF SERVICE NAME, SIGNATURE AND SEAL OF THE AUTHORIZED TECHNICIAN START-UP FULL MAINTENANCE TECHNICIAN PREPARATION SEAL ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION...
  • Page 31 6. MAINTENANCE SERVICE DATE TYPE OF SERVICE NAME, SIGNATURE AND SEAL OF THE AUTHORIZED TECHNICIAN START-UP FULL MAINTENANCE TECHNICIAN PREPARATION SEAL ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY FULL MAINTENANCE TECHNICIAN PREPARATION STAMP ORDINARY SANITIZATION...
