MANUAL
REVERSE OSMOSIS
EQUIPMENT
1

Advertisement

Table of Contents
loading

Related Manuals for Kinetico LATT BLUE 800

Summary of Contents for Kinetico LATT BLUE 800

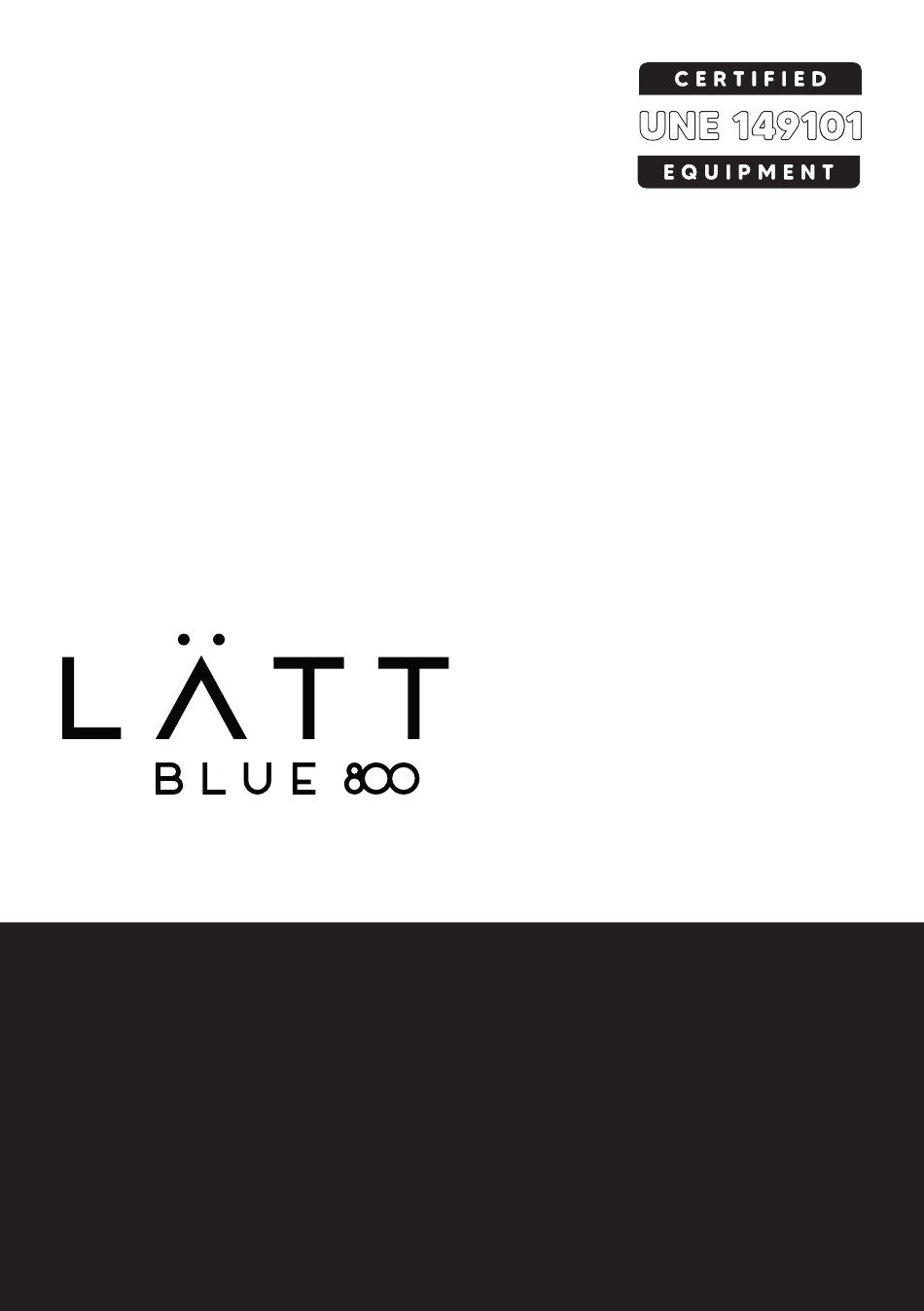

  • Page 1 MANUAL REVERSE OSMOSIS EQUIPMENT...
  • Page 3 INDEX User manual Technical manual Sanitization procedure Data sheet...

  • Page 4: Main Features

    USER MANUAL MAIN FEATURES ELECTRONIC ADAPTER CLICK GREATER SECURITYAND QUICK CONNECTIONS EFFICIENCY AND MAXIMUM SECURITY DOUBLEFLOW FILTER CONTROLAUTOMATIC GREATER FLOW MAINTENANCE WARNINGS DISPENSED WATER SOLENOID VALVE DIRECT ACCESS EASY ACCESS IMMEDIATE CONTROL AND MAINTENANCE QUALITY CONTROL AQUASTOP CONDUCTIVITY AUTOMATIC LEAK CONTROL DETECTION AUDIO WARNINGS...
  • Page 5 1. INTRODUCTION 3. PRECAUTIONS Congratula tion s. You have purchased an excellent do- ATTENTION: Read carefully the warnings describe mestic water treatment equipment. This unit will help d in the correspon d ing section of the Technical you to improve the properties of your water. Manual.

  • Page 6: Basic Operation

    4. BASIC OPERATION 3.2. RECOMMENDATIONS FOR THE APPROPRIATE USE OF OSMOSIS WATER • If you wish to feed any other consumption point with The operating steps of the system are described in the osmosed water (such as a fridge with an ice dispenser, Technical Data Sheet section (page 18).
  • Page 7 7. IDENTIFICATION AND RESOLUTION OF PROBLEMS PROBLEM POSSIBLE CAUSE SOLUTION 1. External leakage of • Breakage of some internal part of th equipment. •Check all installation connections. equipment. • Bad connection of the installation. •Let the machine depressurise correctly and reinstall the filter •...

  • Page 8: Technical Manual

    TECHNICAL MANUAL 1. MAIN FEATURES APPLICATION Water treatment Reverse osmosis for domestic use. Improvement of the characteristics of drinking water (that meets the requirements of the European Directive on water for human consumption 98/83 or its national transpositions in the different member states of the European Community).

  • Page 9: Installation

    2. INSTALLATION -Avoid external dripping onto the equipment from pi- • In the event that the d omestic installation has to be pes, drains, etc. cond itioned in ord er to install the equipment in the planned place, it must be carried out in accord ance ATTENTION: The equipment must not be installed with the national regulations for indoor installations of next to a heat source or directly receiving a flow...
  • Page 10 4. INSTALLATION � 16 mm The smart tap supplied with the equipment has a - The installation of your osmosis equipment must be connection cable. carried out by personnel sufficiently qualified to do so. The use of a 16mm bit is Read this manual first and consult your dealer in case recommended for insta- of doubt.
  • Page 11 4.2. INSTALLATION OF THE FILTERS Keep in mind that the program m ed time for this flus- - Remove the rubber plugs on the water inlets of the pre-fil- hing is 30 seconds. ter (CF), membrane (RO) and post-filter (CB) as shown in fi- gures 8, 9 and 10.

  • Page 12: Recommended Maintenance

    RECOMMENDED MAINTENANCE 6. MAINTENANCE CF Prefilter: At least every 12 months . RO osmosis membrane: Cada 5 años aprox (for soft wa- ATTENTION: Some components of your equip- ters to be treated. (hardness <15 ºHF). ment, such as the pre-filters and the membrane, CB Postfilter: At least every 12 months.
  • Page 13 Hydraulic diagram. 1/4” 1/4” 1/4” � 3/8” 3/8” 1/4” 1/4” IN/FEED DRAIN...

  • Page 14: Sanitization Procedure

    SANITIZATION PROCEDURE 1. SANITIZING ATTENTION: Extreme hygienic measures must be taken when handling filters, membrane and equi- pment components in contact with water. Use dispo- Necessary material: sable gloves or wash your hands as often as necessary to avoid risk of contamination of the equipment. •...
  • Page 15 • Pour 0.25 litres of Hydrogen Peroxide into the dosing cup inserted in the inlet of the unit (7). Screw the cup correctly to its head. • The manual inlet valve and the tap must be closed. Connect the equipment to the power supply. •...
  • Page 16 • Pay special attention to sanitizing the tap spout. Use the sanitizing spray (or, failing that, hydrogen peroxide, dosing it in such a way that it penetrates the tap) and single-use kitchen paper. Spray the spray on the tap nozzle (10), clea the spout and tap nozzle with the dis- posable paper and do not touch it directly with your hands (11).

  • Page 18: Data Sheet

    DATA SHEET 1. TECHNICAL CHARACTERISTICS FUNCTIONING LIMITS PUMP SYSTEM* Presión (máx./mín.): 4 bar - 1 bar (400kPa-100kPa). TDS (máx.): 1500ppm**. Temperatura (máx./mín.): 38 ºC - 5 ºC. Dureza (máx.): 15 ºHF. *** 1.Maximum pressure switch. Control type: 2.Inlet control solenoid valve. 3.Flushing solenoid valve.

  • Page 19: Hydraulic Diagram

    CF Prefilter 1 x combined sediment/carbon. � IN � OUT RO Membrane 1 x 800 GPD Membrane. � IN � OUT/PURE � WASTE CB Postfilter 1 x Carbon postfilter. � IN � OUT Power supply: 24 VDC 5 A. Power Adapter: 100-240 Vac 50 / 60 Hz: 24 Vdc.

  • Page 20: Hydraulic Connection Diagram

    HYDRAULIC CONNECTION DIAGRAM DISTRIBUTED BY: KINETICO WATER SYSTEMS Aiguafreda, 8 1. Data interface 2. Drain Pol. Ind. L’Ametlla Park 3. Faucet 08480, L’Ametlla del Vallès 4. Inlet Barcelona - Spain 5. “Power” T. 902 305 310 F. +34 936 934 329 2.

  • Page 21: Light S Tatus

    3.2. FILTER AND STATUS INDICATORS FUNCTION ACTION LIGHT S TATUS 1. Functional flushing for When the system is turned ON the RO will flush During flushing, the water quality light is shown first use. the membrane for 5 minutes. After that, we flashing red at 1Hz.
  • Page 22 3.3. PROGRAMMING OPTIONS FOR THE TDS REDUCTION SYSTEM. To access the tds reduction system selection mode, the fo- Guidelines for programme selection: llowing steps must be followed: 2 hour programme: it is recommended to select this programme 1. Switch on the system electrically. when the water quality is tds >...
  • Page 23 3.5. FILTER LIFETIME DISPLAY LIFE SPAN REMAINING LITRES OF REMAINING WARN LIFESPAN (DAYS ) CAPACITY DISPLAY ACOUSTIC Normal. > 30 > 300 Fixed blue LED. No alarm. Pre-notice. 0 < X ≤ 30 0 < Y ≤300 Blinking purple LED. Double beep when wa- ter is dispensed and fil- ter life is short.

  • Page 24: Warranty

    4. WARRANTY The distributor guarantees the equipment for a period of three years against any lack of conformity detected in the equipment, as stipulated in Royal Decree-Law 7/2021, of 27 April, on the transposition of European Union directives in the areas of competition, prevention of money laundering, credit institutions, telecommunications, tax measures, prevention and repair of environmental damage, posting of workers in the provision of transnational services and consumer protection.
  • Page 25 5. INSTALLATION RECORD SHEET NOTES FOR THE TECHNICIAN/INSTALLER: read this carefullyHandbook. In case of any doubt, contact the Technical Assistance Service (SAT) of your distributor. The data marked with the symbol * must be filled in by the technician/ installer and transcribed by him/her on the WARRANTY sheet. This sheet must be kept by the installer and may be required by the distributor in order to improve after-sales service and customer service to the client.

  • Page 26: Maintenance & Service

    6. MAINTENANCE SERVICE NAME, SIGNATURE AND STAMP OF THE AUTHORIZED DATE TYPE OF SERVICE TECHNICIAN START UP COMPLETE MAINTENANCE TECHNICAL PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICAL PREPARATION STAMP ORDINARY HIGIENIZACIÓN EXTRAORDINARY OTROS WARRANTY COMPLETE MAINTENANCE TECHNICAL PREPARATION STAMP ORDINARY...
  • Page 27 6. MAINTENANCE SERVICE DATE TYPE OF SERVICE NAME, SIGNATURE AND STAMP OF THE AUTHORIZED TECHNICIAN START UP COMPLETE MAINTENANCE TECHNICAL PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICAL PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICAL PREPARATION STAMP ORDINARY...
  • Page 28 6. MAINTENANCE SERVICE NAME, SIGNATURE AND STAMP OF THE AUTHORIZED DATE TYPE OF SERVICE TECHNICIAN START UP COMPLETE MAINTENANCE TECHNICAL PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICAL PREPARATION STAMP ORDINARY HIGIENIZACIÓN EXTRAORDINARY OTROS WARRANTY COMPLETE MAINTENANCE TECHNICAL PREPARATION STAMP ORDINARY...
  • Page 29 6. MAINTENANCE SERVICE DATE TYPE OF SERVICE NAME, SIGNATURE AND STAMP OF THE AUTHORIZED TECHNICIAN START UP COMPLETE MAINTENANCE TECHNICAL PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICAL PREPARATION STAMP ORDINARY SANITIZATION EXTRAORDINARY OTHERS WARRANTY COMPLETE MAINTENANCE TECHNICAL PREPARATION STAMP ORDINARY...
  • Page 30 NOTES Data Sheet...
  • Page 31 NOTES...
