Installation Instructions
The Drinking Water Filter with MACguard will not make biologically unsafe water safe to drink since
activated carbon will not kill bacteria. When applying the filter to non-chlorinated water supplies,
additional treatment steps may be necessary to assure the water's bacterial makeup is compatible with
activated carbon final treatment.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate
disinfection before or after the system.
NOTE:
Read all steps, guides and rules carefully before installing and using the Kinetico
Drinking Water Filter with MACguard.
Before starting installation, check the contents of the box for the following components: See Figure 1
▶Drinking water faucet assembly*, consisting of:
•
Faucet base assembly (1)
•
Faucet spout (1)
•
Small black rubber gasket (1)
•
Chrome escutcheon (1)
•
Large black rubber gasket (1)
•
Black locating washer (1)
•
Metal washer (1)
•
9/16" brass nut (1)
▶MACguard head with bracket (1).
▶Taste and odor reduction cartridge Product No. 9306B for
Model 7000 (1).
▶Lead, VOC, and cyst reduction cartridge Product No. 9308A
for Model 7500 (1)
▶Decorative cover with PureMometer
▶Tubing hook-up kit, consisting of:
•
5/8" bracket mounting screws (2)
•
1/4" tube x 1/4" tube faucet connector (1)
•
3/8" tube x 3/8" tube x 1/4" tube tee (1)
•
1/4" NPT x 1/4" tube elbow (1)
(Model 7500 uses flow control elbow)
•
1/4" NPT x 1/4" tube elbow shutoff valve (1)
•
1/4" O.D. tubing (not pictured)
* Included with certain models only.
Kinetico Incorporated ◆ Corporate Headquarters ◆ Newbury, Ohio 44065 ◆ (440) 564-9111
Rev.: 01/2011
PRE-INSTALLATION CHECKLIST
®
indicator window (1)

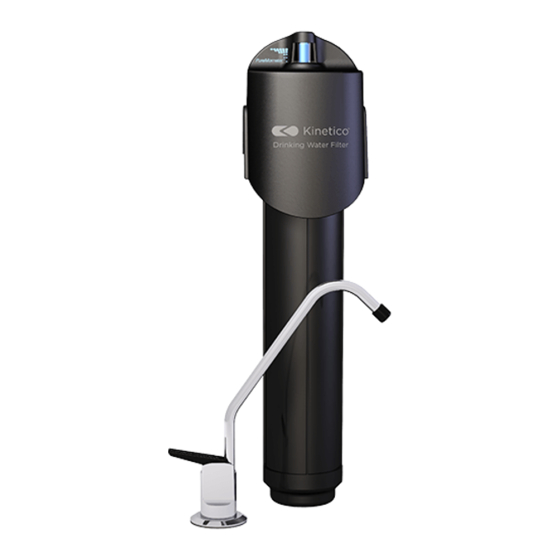

Kinetico Drinking Water Filter
Undersink Models 7000 and 7500
Important

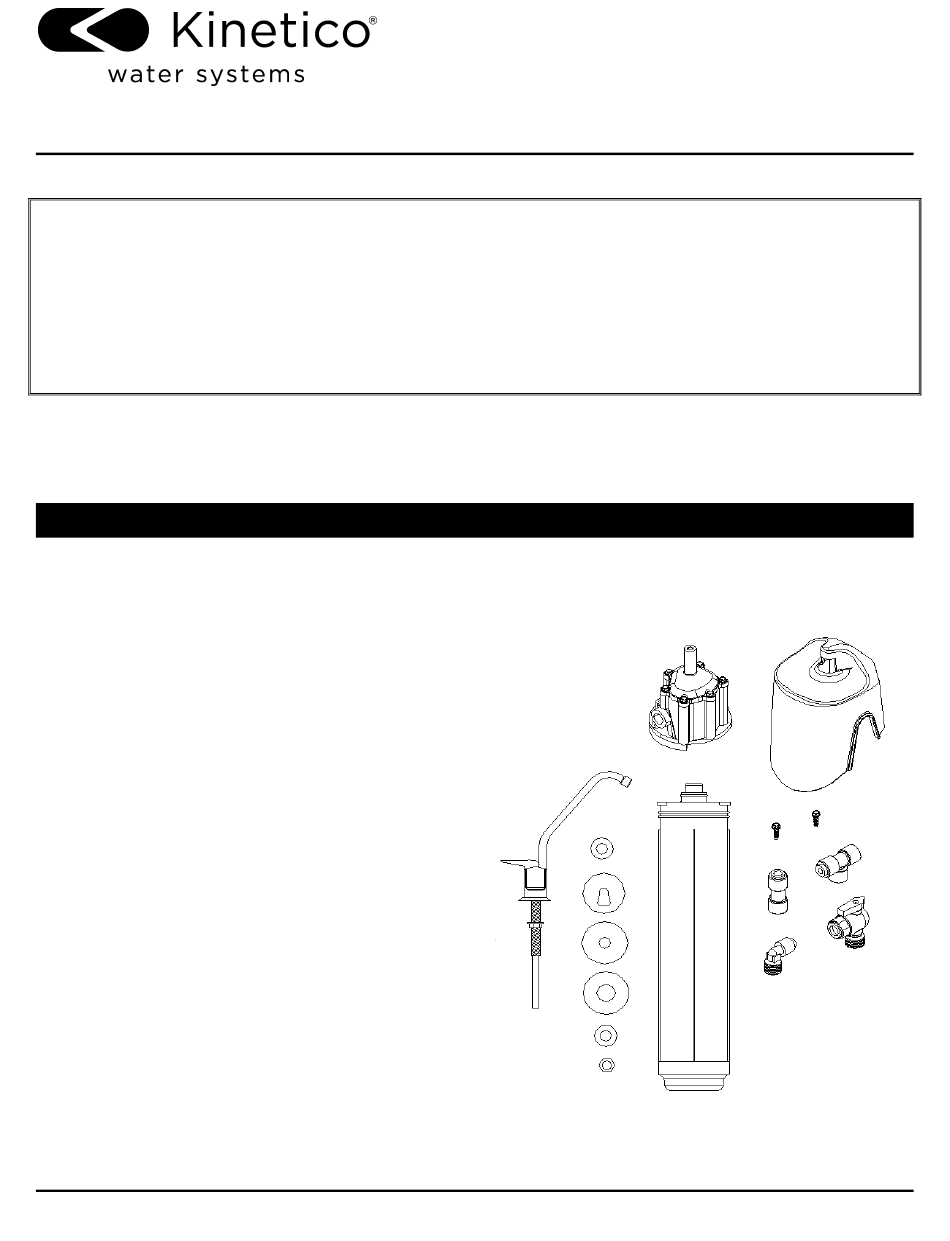

Figure 1. Typical Package Contents
1
with MACguard
Product No. 9383H
®
Advertisement
Table of Contents
Related Manuals for Kinetico Undersink 7000
Summary of Contents for Kinetico Undersink 7000
-
Page 1: Installation Instructions
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. NOTE: Read all steps, guides and rules carefully before installing and using the Kinetico Drinking Water Filter with MACguard. PRE-INSTALLATION CHECKLIST Before starting installation, check the contents of the box for the following components: See Figure 1 ▶Drinking water faucet assembly*, consisting of:... - Page 2 It is recommended that before purchasing a water treatment unit, you have your water tested to determine your actual water treatment needs. The Kinetico Drinking Water Filter with MACguard must be mounted in a vertical position, and the total hookup distance should be limited to not more than 15 feet.
- Page 3 Apply Teflon tape to the male end of the shutoff valve provided and install it into the inlet on the left side of the filter head (See Figure 4). Hand tighten the valve until it is firmly in place. Figure 4. Shutoff Valve Installation Kinetico Incorporated ◆ Corporate Headquarters ◆ Newbury, Ohio 44065 ◆ (440) 564-9111 Rev.: 01/2011 Product No. 9383H...
- Page 4 Min./Max. Operating Pressure: 137.9 - 827.4 kPa (20 - 120 psi) Min./Max. Operating Temperature: 2 - 38°C (35 - 100°F) Capacity: 1,892 L (500 gal) Kinetico Incorporated ◆ Corporate Headquarters ◆ Newbury, Ohio 44065 ◆ (440) 564-9111 Rev.: 01/2011 Product No. 9383H...
- Page 5 10. Install a length of ¼” tubing from the faucet connector into the outlet elbow on the right side of the filter head/bracket assembly (See Figure 11). Kinetico Incorporated ◆ Corporate Headquarters ◆ Newbury, Ohio 44065 ◆ (440) 564-9111 Rev.: 01/2011...
- Page 6 1-800-944-WATER (9283). The Kinetico Drinking Water Filter (Models 7000 and 7500) with MACguard is tested and certified by NSF International against NSF/ANSI Standard 42 for the reduction of aesthetic chlorine, taste and odor. Model 7500 is also tested and certified by NSF International against NSF/ANSI Standard 53 for lead, VOC and MTBE as verified and substantiated by test data.
