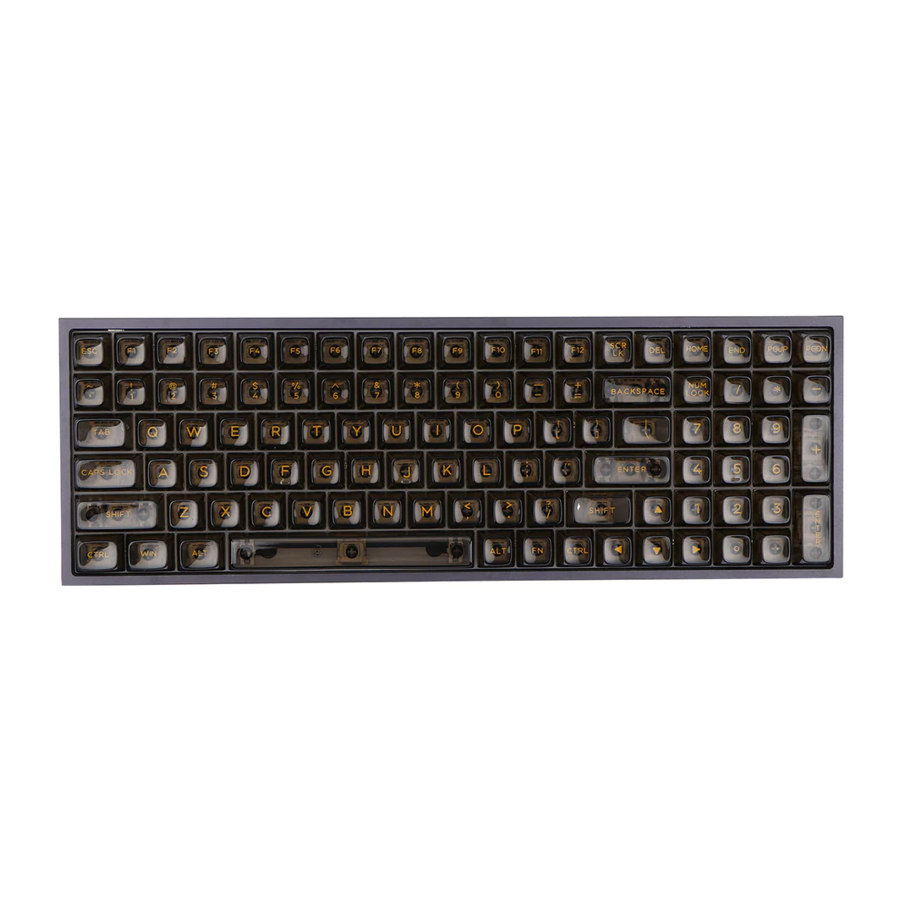

EPOMAKER TH100 - Hot Swappable Triple Mode Wireless Mechanical Keyboard Quick Manual

SPECIFICATIONS

MODEL: EPOMAKER TH100
WEIGHT: 1.67kg
SIZE: 374 x 126.7 x 32.96mm
HOTSWAP: YES
KEYCAPS: PC
NKRO: Yes
LAYOUT: 100Keys
SYSTEM: Windows / Mac
CONNECTION: USB-C, 2.4GHz Bluetooth 3.0, Bluetooth 5.0

SHORTCUTS

WINDOWS SHORTCUTS

FN+F1 Multimedia
FN+F2 Volume -
FN+F3 Volume +
FN+F4 Mute
FN+F5 Stop
FN+F6 Previous track
FN+F7 Play/Pause
FN+F9 Email
FN+F10 Home page
FN+F11 Calculator
FN+F12 Search

MACOS SHORTCUTS

F1 Screen Brightness -
F2 Screen Brightness +
F3 Control Center
F4 Siri
F5
F6
FN+F8 Previous track
F9 Next track
F10 Mute
F11 Volume -
F12 Volume +

HOT KEY

FN+TAB Toggle Win/Mac OS FN+Esc Long press 3s to restore the default setting
Fn+PrtSc Insert Fn+DEL Toggle Sidelight Effects
Fn+Home Scroll Fn+B Battery Percentage ( Wireless mode)
Fn+P PAUSE FN+~ Swap L- CTRL & CAPS
Fn+[ Turn on/off Backlights Fn+WIN Lock/Unlock Win Key
Fn+] Toggle Backlight Effects Fn+ 1!/2@/3# Bluetooth Device 1/2/3
Fn+\| Toggle Backlight Colors FN+4$ 2.4Ghz Mode
Fn+↑ Backlight Brightness + FN+5% Wired Mode
Fn+↓ Backlight Brightness -
Fn+← Backlight Speed -
Fn+→ Backlight Speed +

CHARGE RGB EFFECTS

Pressing Fn+] to switch the RGB effect of your Epomaker TH100 keyboard.

PAIRING BLUETOOTH

  1. Press Fn+1!/2@/3# to toggle to the Bluetooth mode, and thenhold Fn+1!/2@/3# for 3-5 seconds till the light flashes fast, the keyboard is ready to pair.
  2. Turn on your Bluetooth device and find 'K100Max 5.0', then connect. When the keyboard is connected to the Bluetooth device, the 1!/2@/3# key stops flashing and the connection is done.
  3. Press Fn+1!/2@/3# to toggle between the Bluetooth devices 1/2/3.

PAIRING WIRELESS 2.4GHz

  1. Press Fn+4$ to the 2.4Ghz mode, and then holding Fn+4$ for for 3-5 seconds till the light flashes fast, the keyboard is ready to pair.
  2. Insert the 2.4G dongle to your device, the 4$ key stops flashing and the connection is done.

WIRED MODE

Press Fn+5% till the key light up, the keyboard enters the wired mode.

KEYBOARD WAKE UP

If your keyboard is sleeping press any key to wake it up, it will remember the last device connected.
KEYBOARD WAKE UP

REPLACING KEYCAPS AND SWITCHES

For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser:
https://epomaker.com/blogs/guides/diy-guide-how-to-remove-and-replace-your-mechanical-keyboard-switches

Push Straight Down
Please be gentle. Be sure the pins are aligned with the slots.

REPLACING KEYCAPS AND SWITCHES - Step 1
Before installing switches, be sure the pins are clean and straight.

REPLACING KEYCAPS AND SWITCHES - Step 2
The Switch Puller tool aligns Vertically to the Switch to unclip the plastic securing the switch to the plate.

Mechanical Switch
Example of a switch as seen from top after you remove the keycap to prepare for switch removal.

Install Switches

  1. Check that all the switch metallic pins are perfectly straight and clean.
  2. Align the switch vertically to have the Gateron logo facing north. The pins should align themselves to the keyboard PBC.
  3. Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.
  4. Inspect the switch to ensure it's properly attached to your keyboard, and test it.

Included Tools

Keycap Puller


Switch Puller

Remove Switches

  1. Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
  2. Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
  3. Using firm but gentle force pull the switch away from the keyboard using a vertical motion.

Note: If the key doesn't work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process
Pins may be damaged beyond repair and need od replacement if this process is is not not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps sor switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.

TECHNICAL ASSISTANCE

For technical assistance, please email to support@epomaker.com with your purchase order number and a detailed description of your issue.
We normally respond to enquiries within 24 hours. If you purchased your keyboard from a distributor or not from any official store of Epomaker, please contact them directly for any additional help.
