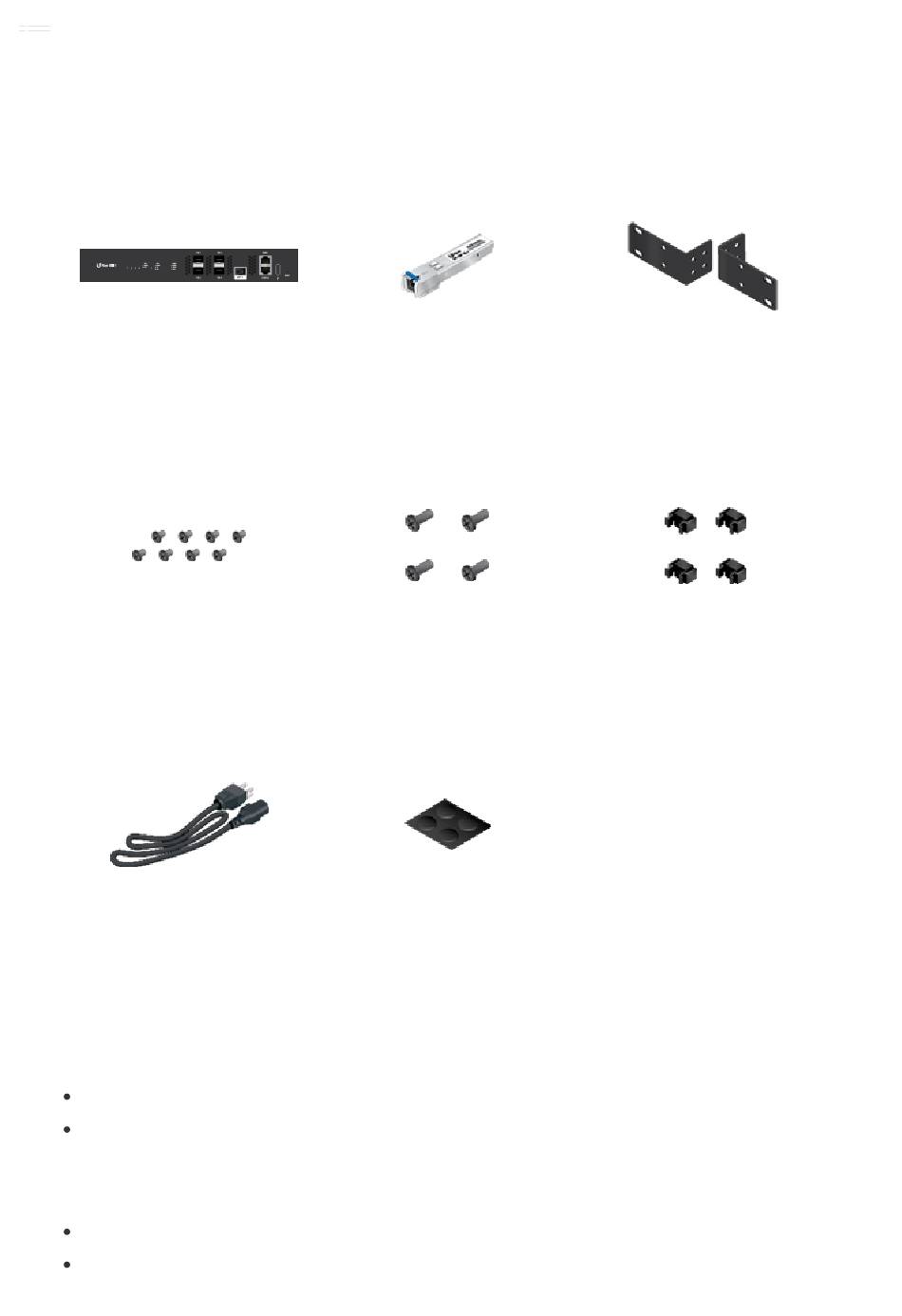

Package Contents
UFiber OLT-4
Bracket Screws (Qty. 8)
Power Cord
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Web Browser: Google Chrome (Other browsers may have limited functionality)
Installation Requirements
Phillips screwdriver (for rack- or wall-mounting)
Standard-sized, 19" wide rack with a minimum of 1U height available (for rack-
mounting)
UF-OLT-4 Quick Start Guide
SC/UPC GPON SFP
Transceiver (UF‑GP‑B+)
Mounting Screws (Qty. 4)
Rubber Feet (Qty. 4)
Mounting Brackets (Qty. 2)
Cage Nuts (Qty. 4)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ubiquiti UF-OLT-4
Summary of Contents for Ubiquiti UF-OLT-4
- Page 1 UF-OLT-4 Quick Start Guide Package Contents UFiber OLT-4 SC/UPC GPON SFP Mounting Brackets (Qty. 2) Transceiver (UF‑GP‑B+) Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord Rubber Feet (Qty. 4) System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10...
-
Page 2: Before You Begin
Compatible PON SFP and SFP+ transceivers with appropriate fiber optic cabling UF-OLT-4 Quick Start Guide and accessories. For information about compatible fiber transceivers, visit: ubnt.link/UFiber-OLT-Modules Before You Begin Designing your first GPON deployment requires specific knowledge and planning. For information on GPON network design and installation, including important considerations and best practices, refer to: ubnt.link/UFiber-GPON-Getting-Started... - Page 3 UF-OLT-4 Quick Start Guide Green/Flashing 1G Link/Activity White/Flashing 10G Link/Activity MGMT LED No Link Amber/Flashing 10/100 Link/Activity Green/Flashing 1000 Link/Activity GPON (Ports (PON 1- 4) Gigabit Passive Optical Network ports support up to 128 clients on each port. SFP+ (Port 1) Hot-swappable SFP+ port supports 1G or 10G connections.
- Page 4 There are two methods to reset the device to factory defaults: UF-OLT-4 Quick Start Guide Runtime reset (recommended) The device should be running after bootup is complete. Press and hold the Reset button for about 10 seconds until the MGMT LED starts flashing and then becomes solidly lit. After a few seconds, the LED will turn off, and the device will automatically reboot.
- Page 5 UF-OLT-4 Quick Start Guide 2. ...
- Page 6 UF-OLT-4 Quick Start Guide...
- Page 7 UF-OLT-4 Quick Start Guide Connecting a PON Module WARNING: Never look directly into the ends of fiber or modules. The emitted light could cause damage to the eye. WARNING: Until ready for use, keep modules and fiber patch cables covered using the included protective caps to ensure the connections stay clean.
- Page 8 UF-OLT-4 Quick Start Guide...
- Page 9 UF-OLT-4 Quick Start Guide Connecting SFP+...
-
Page 10: Accessing The Configuration Interface
UF-OLT-4 Quick Start Guide Accessing the Configuration Interface The following instructions apply to firmware version 4.1 and newer. Note: Previous firmware versions default to a static IP: 192.168.1.1. 1. Connect an Ethernet cable from the MGMT port on the device to a LAN segment... -
Page 11: Specifications
UF-OLT-4 Quick Start Guide 2. To check the IP address of the device, use one of the following methods: Set up the DHCP server to provide a specific IP address to the device based on its MAC address (on the label). -
Page 12: Safety Notices
UF-OLT-4 UF-OLT-4 Quick Start Guide System Memory 512 MB DDR3, 512 MB NAND LEDs System Status PON Data Ports Link/Activity SFP+ Data Ports Link/Activity RJ45 (MGMT) Port Link/Activity Interfaces Data Ports (4) GPON OLT (1) 1G/10G SFP+ Ports Management Port... -
Page 13: Limited Warranty
1. Compliance is required with respect to voltage, frequency, and current requirements UF-OLT-4 Quick Start Guide indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. -
Page 14: Declaration Of Conformity
CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. WEEE Compliance Statement Declaration of Conformity Online Resources © 2022 Ubiquiti Inc. All rights reserved.
