- Page 1 User’s Guide DDS-3005 USB Operation Manual...
-
Page 2: Table Of Contents
Chapter 3 Software Operations ..............8 3.1 Installing the Hardware ............8 3.2 Installing the Software ............12 3.3 Run the DDS-3005 USB ............13 3.4 Choose the Wave Forms ............14 3.5 Waveform Parameter Setup ..........14 3.6 Counter/ Frequency Measurement ........15 3.7 Waveform Output Control ............ -
Page 3: Chapter 1 Introduction
Tektronix oscilloscope or Tektronix waveform editor software and redisplay the waveform. DDS-3005 USB adopts the DDS technology so that it has the advantages of high frequency accuracy, high waveform resolution, high reliability, and wide software support. -
Page 4: Hardware Specification
Magnifier. The frequency counter can test the external frequency. 1.3 Hardware Specification Waveform Output Channel Frequency Range 0.1Hz(DC)~5MHz Resolution 0.01Hz DAC Clock 0~50MHz Continuously adjustable, in step of 0.2Hz Channels 1CH waveform output Memory Depth 256KSa Vertical Resolution 14 Bits Stability <30ppm Amplitude... - Page 5 Input Power ± 20dbm Coupling Mode Accuracy ± Time Base Error ± 1 Count 50 Ω Input Impedance Standard Frequency 25MHz Frequency Stability 20 ppm max. Aging Rate ± 1 ppm/year Digital Input and Output Bits 8 Bits+ Synchronized Signal 1 Bit + External Signal 1 Bit Level 3/5V TTL/CMOS...
-
Page 6: Chapter 2 Installation

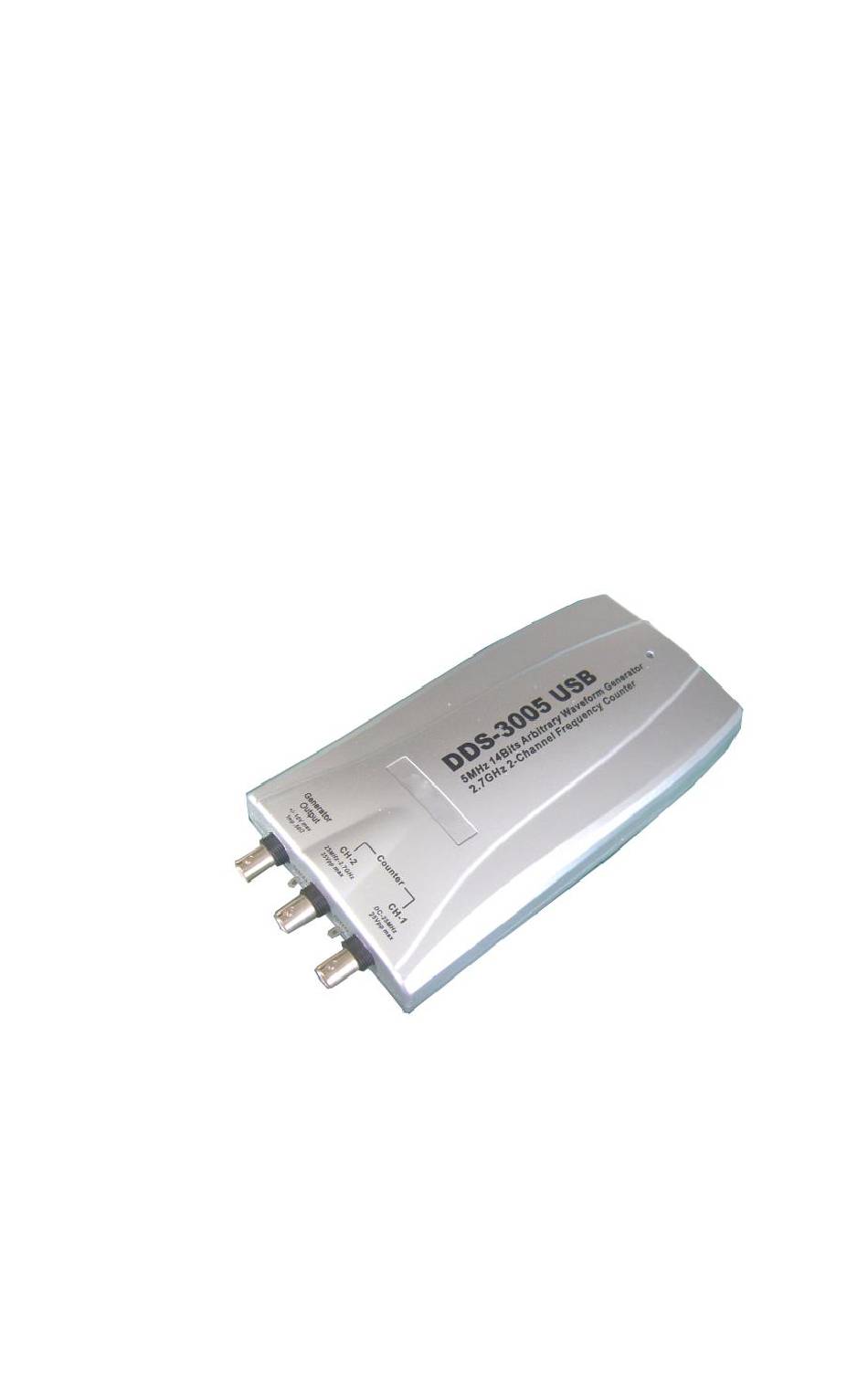

Chapter 2 Installation 2.1 System requirements ⚫ Minimum System Requirements Operating System Windows 11/10/98/2000/XP Memory 128Mbyte Graphic Card Microsoft DirectX supported Screen resolution: 1024x768 Color depth: 16bit ⚫ Recommended System Requirements Operating System Windows 11/10/98/2000/XP Memory 256Mbyte Graphic Card Microsoft DirectX supported Screen resolution: 1024x768 Color depth: 16bit 2.2 Shape and Terminal Illustration... - Page 7 DDS-3005 USB Shape Arbitrary Waveform output 25MHz~2.7GHz counter/Frequency Measurement 25MHz Counter/Frequency Measurement...
- Page 8 Front Panel Digital outputs Working Status Indication PIN1 PIN1 Digital inputs Rear Panel PIN1 Bit7 PIN2 Bit6 PIN3 Bit5 PIN4 Bit4 PIN5 Bit3 PIN6 Bit2 PIN7 Bit1 PIN8 Bit0 PIN9 Synchronized Signal Output PIN10 Digital Ground Digital Output Port Definition PIN1 Bit7 PIN2...
- Page 9 PIN4 Bit4 PIN5 Bit3 PIN6 Bit2 PIN7 Bit1 PIN8 Bit0 PIN9 External Trigger Input PIN10 Digital Ground Digital Input Port Definition...
-
Page 10: Chapter 3 Software Operations
Chapter 3 Software Operations 3.1 Installing the Hardware Connect the USB instrument to the USB port through the USB cable, the PC prompts that new USB device is found. The PC will automatically find the new USB device and choose the nominated directory to install the driver. - Page 11 in the CD driver. Click Continue to finish the installation. " "...
- Page 13 The system will notify that the new USB device can work normally now. After the successfully installation, in the Device Manager, you can see the DDS-3005 USB device.
-
Page 14: Installing The Software
3.2 Installing the Software The setup software of DDS-3005 USB is in the CD, run the Setup.exe to install the software. -
Page 15: Run The Dds-3005 Usb
3.3 Run the DDS-3005 USB Click Start Program DDS-3005 USB DDS-3005 USB to go into " " " " " " " " the main window, shown as below:... -
Page 16: Choose The Wave Forms
3.4 Choose the Wave Forms Press down any button of certain waveform to switch to the output of such kind of waveform. When switch to arbitrary waveform from other kind of waveform, the edition work can be done on the original wave form. 3.5 Waveform Parameter Setup Select the Parameters... -
Page 17: Counter/ Frequency Measurement
Example modulation Signal " " Set the parameters in the dialog box. 3.6 Counter/ Frequency Measurement To measure by the buttons shown as below:... -
Page 18: Waveform Output Control
”, Including High Frequency/ Low Frequency Coupling Mode " " " and the function’s Frequency Measure/ Counter On/Off " " " " 3.7 Waveform Output Control By the following buttons to control the output dot numbers, trigger mode, output amplitude, and limit frequency of the wave filter. -
Page 19: Edition Of Arbitrary Waveform
" " display window to edit each dot, or use the mouse the draw the waveform. 3.9 Waveform Data Files The data format of DDS-3005 USB is .CSV . Its format is compatible " " with the CSV file produced by the Tektronix ARBExpress software. User can edit or set up the required CSV waveform and also use Excel to open and edit the CSV wave files.
