Summary of Contents for Integra MAG

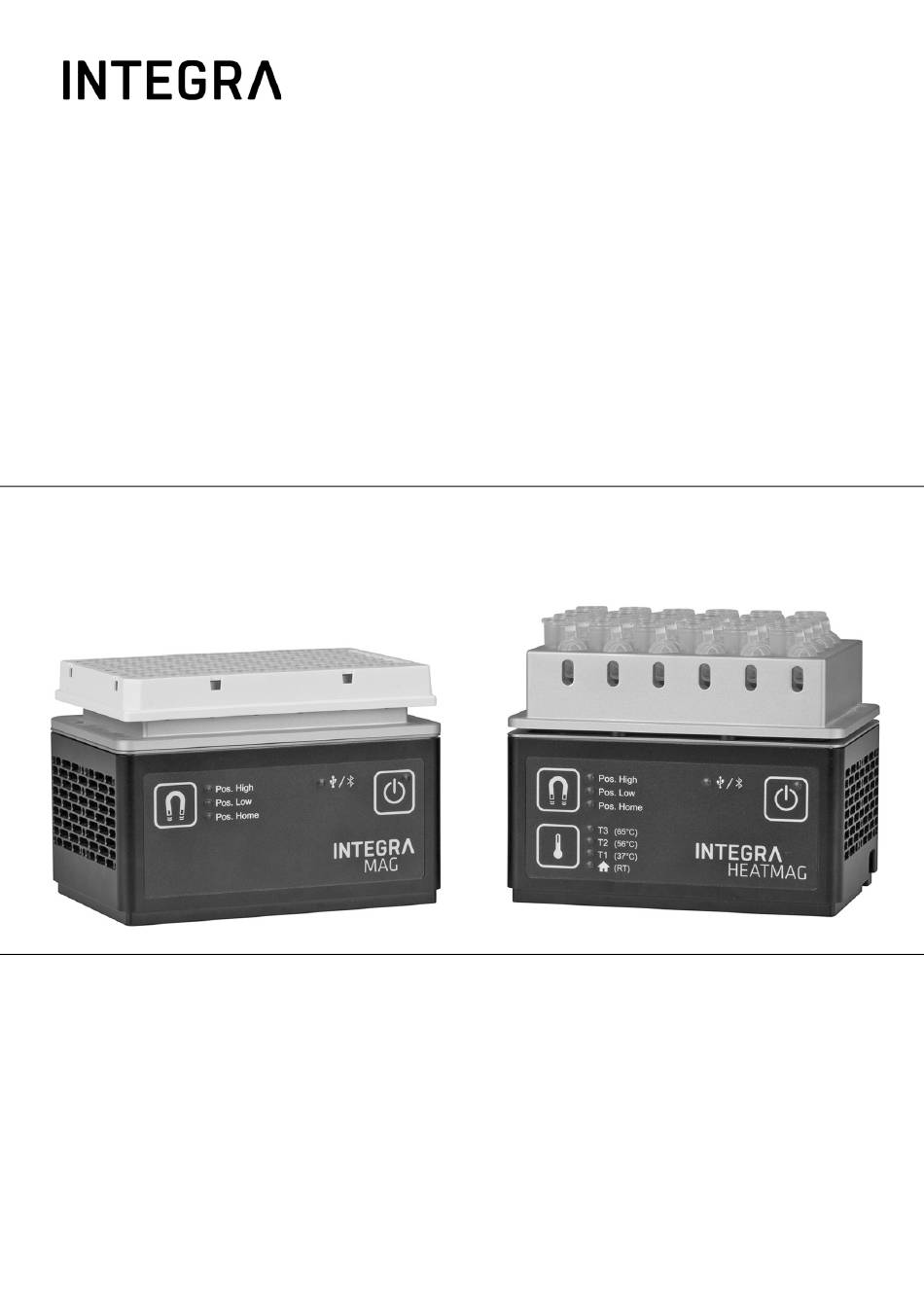

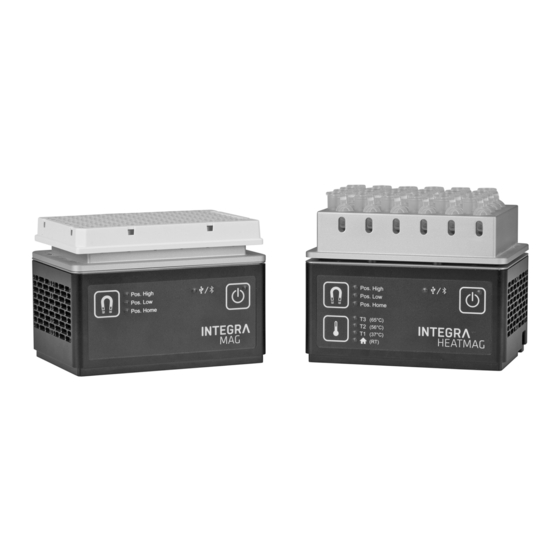

- Page 1 MAG and HEATMAG Operating Instructions 137950_V00...
- Page 2 Declaration of Conformity INTEGRA Biosciences AG – 7205 Zizers, Switzerland declares on its own responsibility that the devices Description Models MAG/HEATMAG 4900, 4901 Mains adapter 137710 comply with: EU Directives Scope Date effective 2014/35/EU Low voltage directive (LVD) 20.04.2016 2014/30/EU Electromagnetic compatibility (EMC) 20.04.2016...
- Page 3 MAG/HEATMAG – Declaration of conformity GBR Standards Scope BS 61010-1:2010 Safety general laboratory equipment BS 62368-1:2020 Safety information technology equipment BS 63000:2018 Restriction of hazardous substances (RoHS) USA Regulations Scope Date effective 47 CFR Part 15 (FCC) Electromagnetic compatibility (EMC)
- Page 4 MAG/HEATMAG – Declaration of conformity JPN Regulations Scope Date effective PSE (Denan) Law Electrical appliance and material safety law 01.01.2014 JIS C1010-1:2019 Safety general laboratory equipment KOR Regulations Scope Date effective KC 61010-1 Safety general laboratory equipment KC 61010-2-010 Safety heating devices...
-
Page 5: Table Of Contents
Chapter 3 Installation 3.1 Operating environment ..............11 3.2 Setting up ..................11 3.3 Inserting the labware adapter ............11 3.4 Changing the magnetic array (MAG only) ........11 3.5 Installing the communication module ..........12 3.6 Connection with ASSIST PLUS............12 Chapter 4 Operation 4.1 Turn on/off the device..............13 4.2 Changing parameters via PC ............13... - Page 6 MAG/HEATMAG – Operating instructions V00 Chapter 7 Accessories 7.1 Accessories ..................20 Imprint ....................21 INTEGRA Biosciences AG...
-
Page 7: Chapter 1 Introduction
Introduction These operating instructions contain all the information required for installation, operation and maintenance of the MAG and HEATMAG modules. This chapter informs about the symbols used in these operating instructions, the intended use of MAG/HEATMAG and the general safety instructions. -
Page 8: Safety Notes
(MSDS) and with all safety guidelines such as the use of pro- tective clothing and safety goggles. AUTION • Do not modify MAG/HEATMAG in any way. Repairs may only be per- formed by INTEGRA Biosciences or by an authorized after-sales service member. -
Page 9: Chapter 2 Description Of The Device
Do not operate a device that is damaged, instead contact your local INTEGRA representative. Overview of MAG/HEATMAG module 1 Magnet array, exchangeable (MAG only) 2 Pin, on both sides for labware adapter positioning 3 Touch panel HEATMAG... - Page 10 MAG/HEATMAG – Operating instructions V00 Description of the device Bottom view 6 Socket for mains adapter 7 USB-C port, to connect PC or ASSIST PLUS 8 Cable opening for portrait orientation 9 Cable opening for landscape orientation Touch panel Active icons light up.
-
Page 11: Chapter 3 Installation
Turn off and unplug the modules before moving to prevent unintentional height movement of the magnet. Risk of pinching fingers. Inserting the labware adapter Put the adapter on top of the MAG/HEATMAG. The correct alignment is given by the pins on both sides (2). ARNING... -
Page 12: Installing The Communication Module
Connection with ASSIST PLUS Plug the USB-C to AUX cable into the USB port (7) on the bottom of the MAG/HEATMAG and connect it to the AUX aux port (8-pin plug) of the ASSIST PLUS (b). Put the MAG/HEATMAG on the deck (position C recommended). -
Page 13: Chapter 4 Operation
Operation Operation Turn on/off the device Turn on: Press the On/Off button (12) on the touch panel to turn on MAG/HEATMAG. The LED illuminates and the module initializes. ARNING Keep your hands away from the top of MAG/HEATMAG during initialization. - Page 14 Press the “Transfer to device” button to save the adapted parameters on the connected MAG/HEATMAG. Stand alone remote control of MAG/HEATMAG via PC is not possible. If you change default temperatures, they will no longer match those printed on the touch panel.
-
Page 15: Changing Parameters Via App
Changing parameters via app A communication module must be installed (3.5) on your MAG/HEATMAG to set parameters via the MAG Control app. Download the MAG Control app, which you can find in the App Store, onto your smartphone. Press and hold the magnetic button (10) and the On/Off button (12) of the MAG/HEATMAG simultaneously until it beeps. -
Page 16: Running On Assist Plus
Updating firmware Download the latest firmware from the INTEGRA website under Support - Download center. Connect the MAG/HEATMAG to the to the USB port of your PC. From the VIALINK software go to the Firmware tab and install the latest firmware. -
Page 17: Chapter 5 Maintenance
MAG/HEATMAG modules are precision instruments, therefore a proper maintenance routine must be followed to ensure safe and reliable operation. Cleaning is recommended if MAG/HEATMAG has been contaminated or if it has come in contact with corrosive liquids. Cleaning The materials used on the exterior of MAG/HEATMAG support regular cleaning intervals. -
Page 18: Servicing
MAG/HEATMAG must not be disposed of with unsorted municipal waste. Do not dispose of MAG/HEATMAG in a fire. Dispose of MAG/HEATMAG in accordance with the laws and regulations in your area governing disposal of devices. In certain regions and countries, e.g. in EU member states, the distributor is obliged to take back this product free of charge at the end of life. -
Page 19: Chapter 6 Technical Data
Mains adapter input: 100–240 V, 50/60 Hz Device input: 24 V, 120 W Dimensions (H x D x W) MAG: 70 mm x 88.5 mm x 133 mm HEATMAG: 73 mm x 88.5 mm x 133 mm Weight MAG: 1 kg HEATMAG: 1.1 kg... - Page 20 MAG/HEATMAG – Operating instructions V00 Accessories Accessories Accessories Adapters and platform modules Part no. Adapter for 1.5 ml tubes, format 4 x 6 (MAG/HEATMAG) 4905 Adapter for 96 well PCR plates (MAG/HEATMAG) 4906 Adapter and magnetic array for 384 well PCR plates (MAG) 4908...
- Page 21 INTEGRA Biosciences AG shall not be liable for any loss, damage, repair costs, incidental or consequential damages of any kind, whether based on express or implied warranty, contract, omission or strict liability, arising in connection with the design, development, installation or use of the products.
- Page 22 MAG/HEATMAG – Operating instructions V00 Manufacturer and customer service Your local INTEGRA Biosciences representative, further information, and operating instructions in other languages can be found at www.integra-biosciences.com or are available on request info@integra-biosciences.com. INTEGRA Biosciences AG INTEGRA Biosciences Corp. Tardisstrasse 201...
