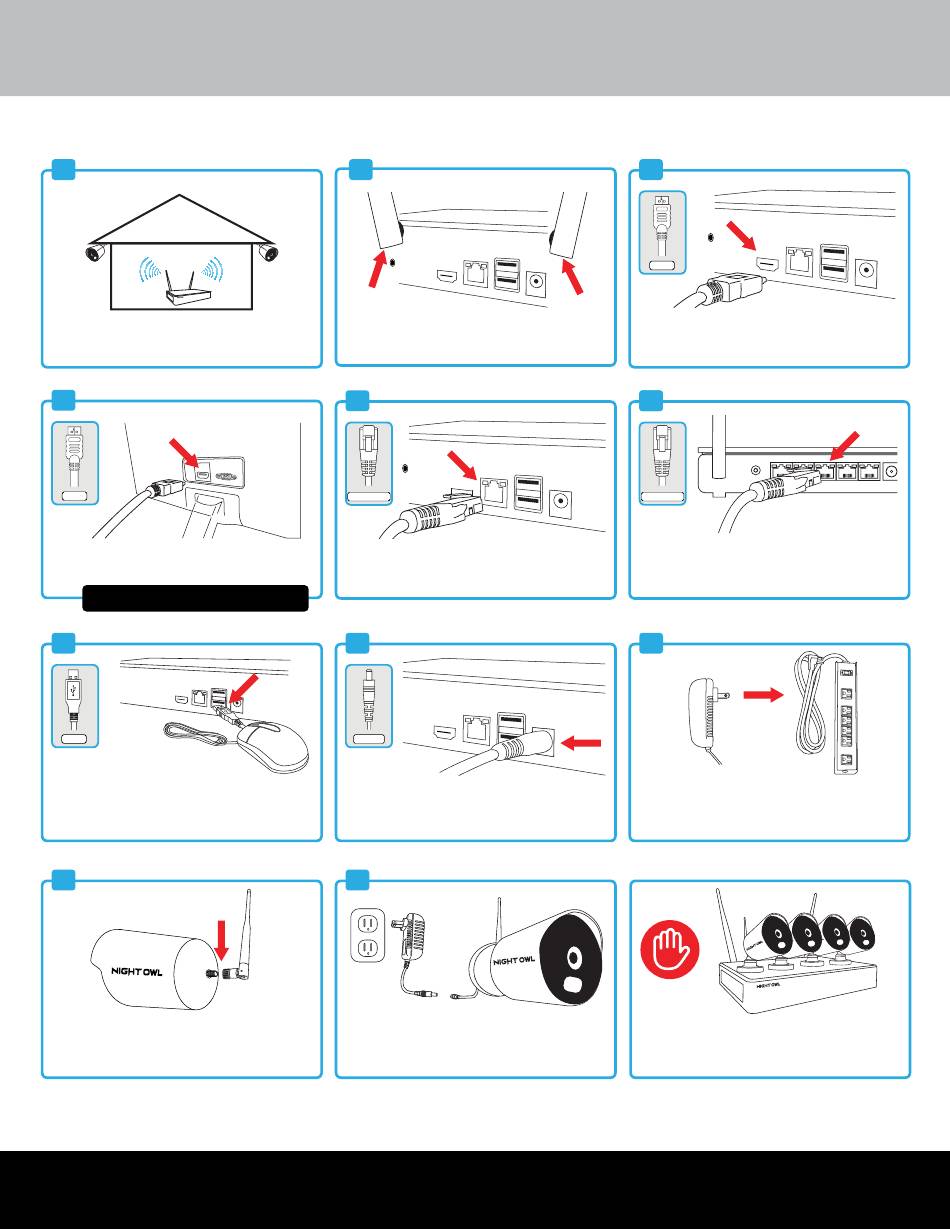

Chapter 1: Connecting Your System
1
Place the Wi-Fi NVR in a central location. The
Wi-Fi NVR must be within the range of all the
cameras' final mounting positions.
4
HDMI
Plug the other end of the HDMI cable into the
back of your TV or Monitor.
NOTE: To view cameras, TV / Monitor must be tuned
to the same input the HDMI is plugged into.
7
USB
Plug the USB mouse into the USB port on the back
of the Wi-Fi NVR.
10
Connect the included camera antenna to the
antenna mount on the back of the camera.
Repeat with each camera.
2
Connect the two included antennas to your Wi-Fi NVR.
This will ensure you achieve the maximum wireless
range for transmission from your wireless cameras.
5
ETHERNET
Plug one end of the included Ethernet cable into
the LAN port on the back of the Wi-Fi NVR.
8
POWER
Connect the Wi-Fi NVR power adapter to the
Power Input on the rear of the Wi-Fi NVR.
11
Connect all of the cameras to power adapters
and plug them into an outlet within 10 feet of
the Wi-Fi NVR.
10
3
HDMI
Plug one end of the included HDMI cable into the
HDMI port on the back of the Wi-Fi NVR.
6 6
RESET
LAN1 LAN2
ETHERNET
Plug the other end of the Ethernet cable into a port
on the back of your router or modem.
(Router Not Included)
9
Plug the Wi-Fi NVR power adapter into a surge
protector or Uninterruptible Power Supply (UPS).
(Surge protector and UPS not included)
STOP: BEFORE installing, the cameras must be
paired to the Wi-Fi NVR. Do not mount the cameras
until you have completed Step 3: Startup Wizard.
LAN3 LAN4 WAN
