- Page 2 • RIGOL products are covered by P.R.C. and foreign patents, issued and pending. • RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at the company's sole decision. • Information in this publication replaces all previously released materials.
-
Page 3: Safety Requirement
CAUTION Indicates a potentially hazardous situation or practice which, if not avoided, could result in damage to the product or loss of important data. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Quick Guide... -
Page 4: Measurement Category
Examples are measurements on distribution boards, circuit-breakers, wiring (including cables, bus-bars, junction boxes, switches and socket-outlets) in the fixed installation, and equipment for industrial use and some other DG800 Pro Quick Guide Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. -
Page 5: Ventilation Requirement
To avoid short circuit inside the instrument or electric shock, never operate the instrument in a humid environment. Altitude • Operating: below 3 km • Non-operating: below 12 km Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Quick Guide... -
Page 6: Care And Cleaning
Safety Class Class 2 Care and Cleaning Care Do not store or leave the instrument where it may be exposed to direct sunlight for long periods of time. DG800 Pro Quick Guide Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. -
Page 7: Environmental Considerations
Please contact your local authorities for disposal or recycling information. https://int.rigol.com/services/services/declaration You can click on the following link to download the latest version of the RoHS&WEEE certification file. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Quick Guide... -
Page 8: Document Overview
This manual gives you a quick overview of the front and rear panels, user interface as well as basic operation methods of DG800 Pro series function/arbitrary waveform generator. www.rigol.com For the latest version of this manual, download it from RIGOL official website ( Publication Number QGB14100-1110 Format Conventions in this Manual 1. -
Page 9: General Inspection
The consigner or carrier shall be liable for the damage to the instrument resulting from shipment. RIGOL would not be responsible for free maintenance/rework or replacement of the instrument. 2. Inspect the instrument In case of any mechanical damage, missing parts, or failure in passing the electrical and mechanical tests, contact your RIGOL sales representative. -
Page 10: Product Overview

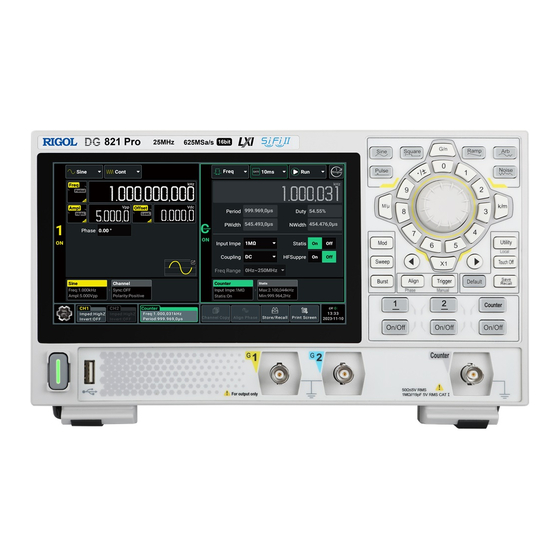

Product Overview With up to 625 MSa/s sample rate and 2 Mpts/CH arbitrary waveform length, the DG800 Pro series function/arbitrary waveform generator is an all-in-one generator that integrates Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, Analog/Digital Modulator, and Counter. It is a high-performance, cost-effective, and multi-functional dual-channel function/ arbitrary waveform generator. -
Page 11: Front Panel Overview
Basic Waveform Selection Area 10 Align Key Parameter Input Area CH2 Output Connector Quick Operation Key CH1 Output Connector Manual Trigger Key USB HOST Interface Counter Control Area Power Key Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Quick Guide... -
Page 12: Rear Panel Overview
CH1 Sync/Ext Mod/Trig Connector 10 MHz In/Out Connector LAN Interface USB DEVICE Interface USB Type-C Power Connector Security Lock Hole Ground Terminal Mounting Screw Holes (VESA 100 x 100) DG800 Pro Quick Guide Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. -
Page 13: User Interface Overview
Counter Label Button Parameter Configuration Area Channel Tab Notification Area Channel Labels Screen Capture Key Function Navigation Icon Store/Recall Key Waveform Tab Align Phase Function Key Channel Identifier Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Quick Guide... -
Page 14: To Prepare For Use
AC power source (100 V to 240 V, 50 Hz to 60 Hz), as shown in the figure below. DG800 Pro Quick Guide Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. -
Page 15: Turn-On Checkout
Output USB PD 15 V, 3 A, 45 W CAUTION The power adaptor provided in accessories can only be used to power RIGOL instruments. Do not use it for mobile phone and other devices. WARNING To avoid electric shock, please ensure that the instrument is correctly grounded. - Page 16 > Utility > Setup to enter the basic settings menu. Then click or tap the drop-down button of Language to set the system language to Chinese or English. DG800 Pro Quick Guide Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
-
Page 17: To Use The Built-In Help System
> Help to enter the help system. In the help system, you can get its help information by clicking on or tapping the link for the specified chapter. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Quick Guide... -
Page 18: To Use The Security Lock
Security Lock Figure 7.1 Use the Security Lock CAUTION Please do not insert other objects into the security lock hole to avoid damaging the instrument. DG800 Pro Quick Guide Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. -
Page 19: Parameter Setting Method
If the cursor selects a key, on/off switch, or tab control, pressing the knob is equivalent to tapping the corresponding key, on/off switch, or tab control using the touch screen. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Quick Guide... - Page 20 • When inputting parameters using the ring-type numeric keypad, is used to delete the character while is used to cancel the input and close the input field. DG800 Pro Quick Guide Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
- Page 21 You can also click or tap the unit drop-down button to select the desired unit when multiple units are available. Then click or tap "Enter" to confirm input and close the numeric keypad. Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Quick Guide...
-
Page 22: Remote Control
• PC Software You can use the PC software to send SCPI commands to control the instrument remotely. RIGOL Ultra Sigma is recommended. You can download the software http://www.rigol.com from RIGOL official website ( Operation Procedures: Set up communication between the instrument and PC. -
Page 23: Troubleshooting
After restarting the instrument, insert the USB storage device again to check whether it can work normally. d. If the USB storage device still cannot work normally, please contact RIGOL. 4. Performance verification test is failed. a. Check whether the generator is within calibration period (1 year). - Page 24 (e.g. a magnet), please move the instrument away from the magnet field. d. If the problem still persists, please contact RIGOL. DG800 Pro Quick Guide Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
- Page 25 About in the pop-up Utility menu. For more information about the instrument, refer to the relevant manuals by logging http://www.rigol.com in to the official website of RIGOL ( ) to download them. DG800 Pro User Guide introduces the functions of the instrument and the •...
