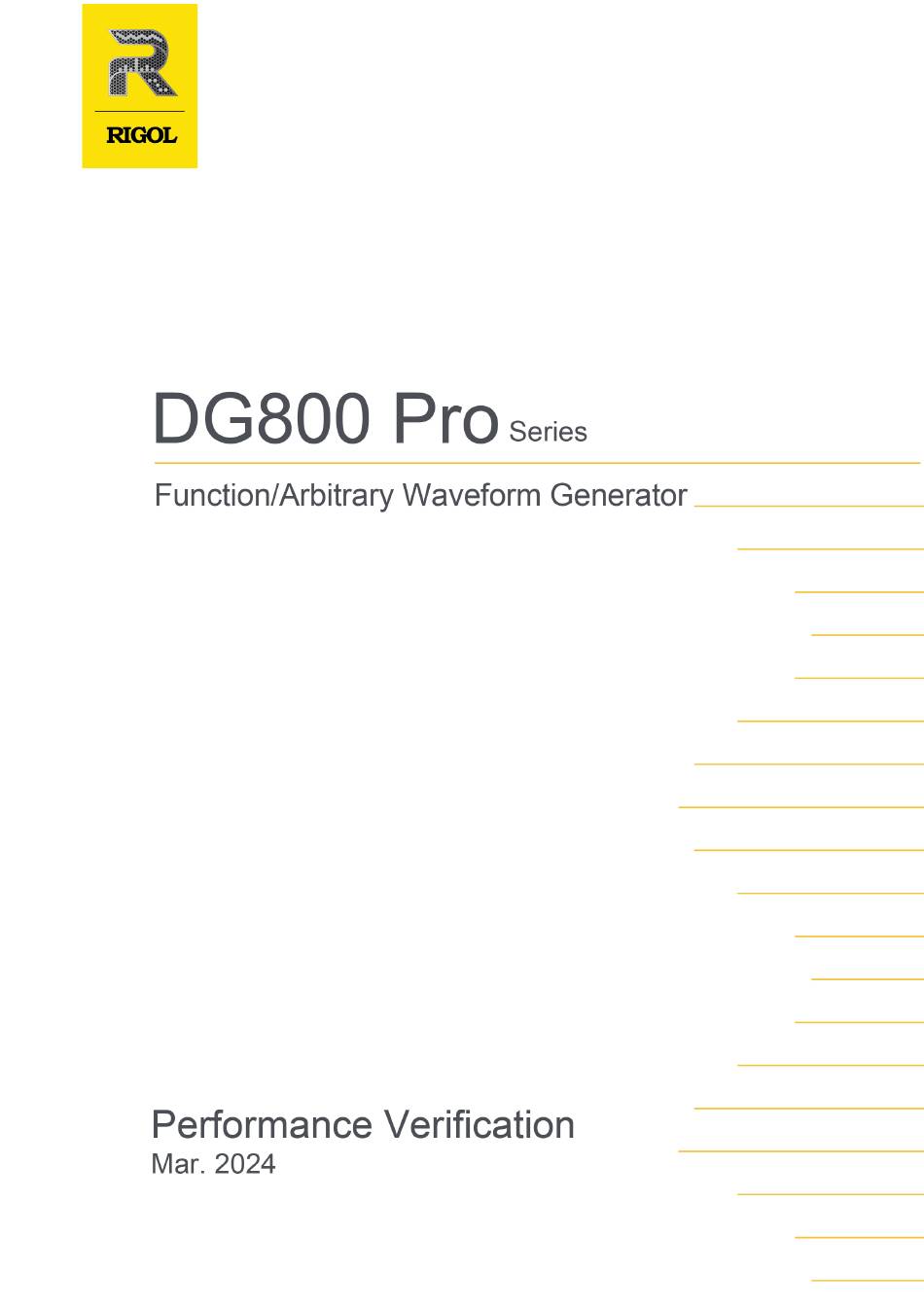

Rigol DG800 Pro Series Performance Verification Manual
Function/arbitrary waveform generator
Hide thumbs
Also See for DG800 Pro Series:
- Quick manual (27 pages) ,
- Programming manual (219 pages) ,
- User manual (130 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Rigol DG800 Pro Series
Summary of Contents for Rigol DG800 Pro Series
- Page 2 • RIGOL products are covered by P.R.C. and foreign patents, issued and pending. • RIGOL reserves the right to modify or change parts of or all the specifications and pricing policies at the company's sole decision. • Information in this publication replaces all previously released materials.
-
Page 3: Table Of Contents
4.4.3 Test Record Form ........................16 4.5 Harmonic Distortion Test ........................17 4.5.1 Specification ...........................17 4.5.2 Test Procedures ........................17 4.5.3 Test Record Form ........................19 4.6 Spurious Signal Test ......................... 4.6.1 Specification ...........................20 Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Performance Verification... - Page 4 ........................23 4.7.3 Test Record Form ........................24 4.8 Overshoot Test ........................... 4.8.1 Specification ...........................24 4.8.2 Test Procedures ........................25 4.8.3 Test Record Form ........................25 5 Appendix: Test Record Form ..................27 DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
-
Page 5: Safety Requirement
Do Not Operate With Suspected Failures. If you suspect that any damage may occur to the instrument, have it inspected by RIGOL authorized personnel before further operations. Any maintenance, adjustment or replacement especially to circuits or accessories must be performed by RIGOL authorized personnel. -
Page 6: Safety Notices And Symbols
Do not expose the battery (if available) to high temperature or fire. Keep it out of the reach of children. Improper change of a battery (lithium battery) may cause an explosion. Use the RIGOL specified battery only. • Handle with Caution. - Page 7 It calls attention to an operation, if not correctly performed, could result in damage to the product or other devices connected to the product. Safety Symbols on the Product: Hazardous Safety Warning Protective Earth Chassis Ground Test Ground Voltage Terminal Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Performance Verification...
-
Page 8: Document Overview
Document Overview This manual is designed to guide you to properly test the performance specifications of RIGOL DG800 Pro Series Function/Arbitrary Waveform Generator. For the operation methods mentioned in the test procedures, refer to User Guide of this product. Publication Number... -
Page 9: Overview
Overshoot measurement function Cable BNC (m)-BNC (m) Cable BNC (m)-Dual Banana Plug (m) 50 Ω Load 50 Ω/1 W Power Sensor -35 dBm to +20 dBm Agilent N8482A Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Performance Verification... -
Page 10: Test Considerations
Specifications The specification of each test item is provided in this manual. For other technical DG800 Pro Data Sheet (download it from RIGOL website: parameters, refer to www.rigol.com All the specifications are valid only when the instrument has been operating for more than 20 minutes within the specified operating temperature range (23℃±5℃). -
Page 11: Performance Verification Test
Performance Verification Test Performance Verification Test This chapter takes the CH1 of the two-channel model DG852 Pro as an example to illustrate the performance verification test methods of DG800 Pro series. The testing methods are also applicable to CH2. Frequency Accuracy Test 4.1.1... -
Page 12: Test Record Form
0.999999 MHz to 1.000001 MHz Harmonic 0.999999 MHz to 1.000001 MHz Note : ±10 of the setting value (except Arb and Sequence), 0℃ to 40℃ AC Amplitude Accuracy Test 4.2.1 Specification DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. -
Page 13: Test Procedures
DG800 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 4. Set up the DG800 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"... -
Page 14: Test Record Form
20 mVpp Frequency: 1 6.3 mVrms to 7.8 mVrms 100 mVpp 34.3 mVrms to 36.4 mVrms Offset: 0 Vdc Impedance: 174.3 mVrms to 179.3 500 mVpp 50 Ω mVrms DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. -
Page 15: Dc Offset Accuracy Test
±(1% of |setting value| + 2 mVdc + 0.5% of amplitude (Vpp)) (into 50 Ω) Specification ±(1% of |setting value| + 5 mVdc + 1% of amplitude (Vpp)) (into HighZ) Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Performance Verification... -
Page 16: Test Procedures
DG800 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 4. Set up the DG800 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"... -
Page 17: Test Record Form
-2.552 Vdc to -2.448 Vdc -1 Vdc -1.037 Vdc to -0.963 Vdc Amplitude: 5 -500 mVdc -0.532 Vdc to -0.468 Vdc Impedance: 0 Vdc -0.027 Vdc to +0.027 Vdc 50 Ω Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Performance Verification... -
Page 18: Ac Flatness Test
50 Ω Load 2. Press the front-panel key of DG800 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. - Page 19 Performance Verification Test 3. Set up the DG800 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load" in the drop-down menu of Imped). b. Set CH1 to output a Sine wave with 1 kHz frequency and 0 dBm amplitude.
-
Page 20: Test Record Form
= _________ Calculation Measured Frequency Setting Setting Limit Pass/Fail Value Result 1 MHz ±0.1 dB Amplitude: 0 10 MHz ±0.2 dB Impedance: 50 Ω 25 MHz ±0.2 dB DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. -
Page 21: Harmonic Distortion Test
DG800 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 3. Set up the DG800 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"... - Page 22 Set the input attenuation to 20 dB and the reference level to 10 dBm. b. Set the start frequency to 40 MHz and the stop frequency to 120 MHz. DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
-
Page 23: Test Record Form
Waveform: 10 MHz <-50 dBc Wave): Sine Amplitude: 0 dBm Offset: 0 (Fundamental 25 MHz <-50 dBc Wave): 50 MHz (Fundamental <-50 dBc Wave): (for DG852 Pro only) Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Performance Verification... -
Page 24: Spurious Signal Test
: If the calculation result is greater than the specification, the test fails. Spurious Signal Test 4.6.1 Specification Sine Wave Spurious Signal (nonharmonic) Typical (1 Vpp) Specification 10 Hz to <10 MHz: <-65 dBc ≥10 MHz: <-60 dBc DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. -
Page 25: Test Procedures
DG800 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 3. Set up the DG800 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"... -
Page 26: Test Record Form
10 MHz 0 Hz 100 MHz <-60 dBc 25 MHz 0 Hz 120 MHz <-60 dBc 50 MHz (for DG852 Pro 0 Hz 150 MHz <-60 dBc only) DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. -
Page 27: Rise/Fall Time Test
DG800 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 3. Set up the DG800 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"... -
Page 28: Test Record Form
Frequency: 1 MHz Amplitude: 0 dBm Fall Time ≤3 ns Offset: 0 Vdc Overshoot Test 4.8.1 Specification Square Overshoot Specification Typical (0 dBm amplitude, >1 kHz frequency), <5% DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. -
Page 29: Test Procedures
DG800 Pro and a prompt message is displayed. Click or tap OK to restore the instrument to its factory default settings. 3. Set up the DG800 Pro series: a. Set the output impedance of CH1 to 50 Ω (in CH1 setup interface, click or tap the Channel tab and select "Load"... - Page 30 Amplitude: 0 dBm Offset: 0 Vdc Channel: CH2 (for DG822 Pro/DG852 Pro only) Setting Measured Value Limit Pass/Fail Waveform: Square Frequency: 1 MHz <5% Amplitude: 0 dBm Offset: 0 Vdc DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
-
Page 31: Appendix: Test Record Form
Appendix: Test Record Form Appendix: Test Record Form RIGOL DG800 Pro Series Function/Arbitrary Waveform Generator Performance Verification Test Record Form Model: ________________ Tested by: ________________ Test Date: ________________ Frequency Accuracy Test Channel: CH1 Measured Waveform Setting Pass/Fail Limit Value Sine 0.999999 MHz to 1.000001 MHz... - Page 32 3.4995 mVrms to 3.5716 10 Vpp mVrms Note : 1 kHz Sine, amplitude > 1 mVpp, 0 Vdc offset, unit: Vpp. ±(1% of the setting value + 2 mVpp). DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
- Page 33 : the offset limit value is calculated from the offset setting value ± permissible error. The permissible error is calculated from the specification "±(1% of |the setting value| + 2 mVdc + 0.5% of the amplitude (Vpp))". Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Performance Verification...
- Page 34 ±0.2 dB Impedance: 25 MHz ±0.2 dB 50 Ω ±0.2 dB 50 MHz Note : Calculation Result = Amplitude Measured Value - P Note : DG852 Pro only. DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
- Page 35 Calculation Frequency Measured Setting Limit Pass/Fail Setting Value Result (Fundamental Waveform: 1 MHz <-55 dBc Wave): Sine Amplitude: 0 dBm Offset: 0 (Fundamental 10 MHz <-50 dBc Wave): Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Performance Verification...
- Page 36 0 Hz 100 MHz <-60 dBc 25 MHz 0 Hz 120 MHz <-60 dBc 0 Hz 150 MHz <-60 dBc 50 MHz Note : for DG852 Pro only. DG800 Pro Performance Verification Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
- Page 37 Offset: 0 Vdc Channel: CH2 (for DG822 Pro/DG852 Pro only) Pass/ Setting Measured Value Limit Fail Waveform: Square Frequency: 1 MHz <5% Amplitude: 0 dBm Offset: 0 Vdc Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved. DG800 Pro Performance Verification...
